Case IH Farmall 120C vs New Holland Workmaster 120 PLUS
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 5 measurable specs, this matchup is a dead heat: 2 categories to the Case IH Farmall 120C, 2 to the New Holland Workmaster 120 PLUS, 1 tied. Machine pages: Case IH Farmall 120C and New Holland Workmaster 120 PLUS.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

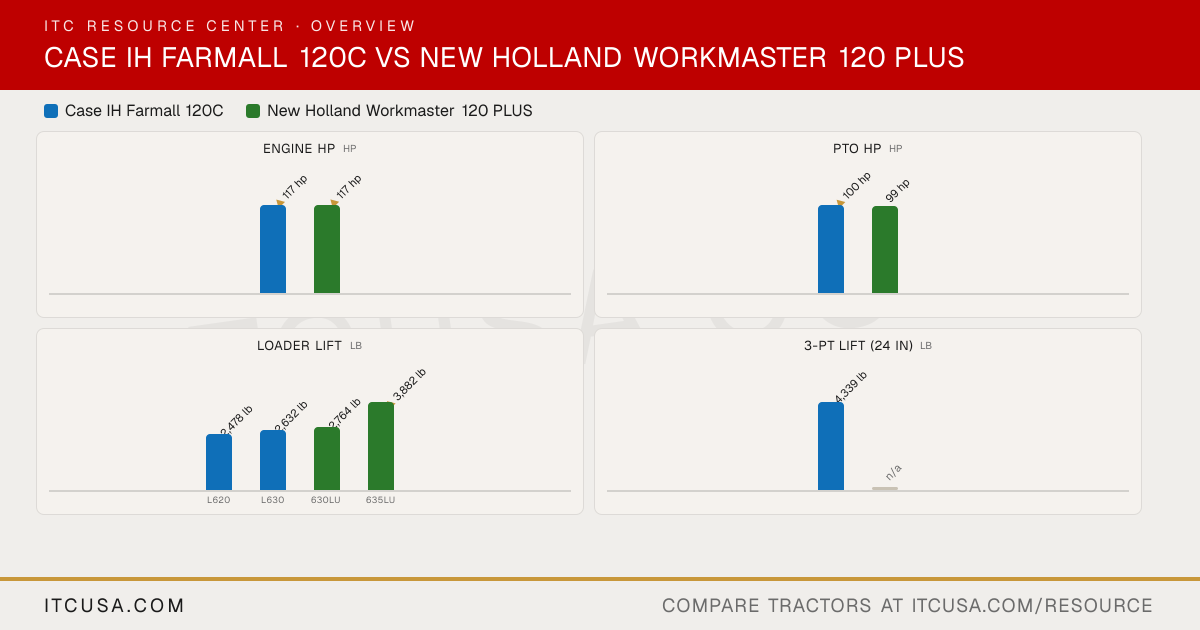

Category Verdict
| Spec | Case IH Farmall 120C | New Holland Workmaster 120 PLUS |
|---|---|---|
| Engine HP (hp) | 117 hp | 117 hp |
| PTO HP (hp) | ▲ 100 hp | 99 hp |
| Loader Lift (lb) | 2,632 lb | ▲ 3,882 lb |
| 3-Pt Lift (24 in) (lb) | 4,339 lb | n/a |
| Lift Height (in) | 134 in | ▲ 143.9 in |
| Hydraulic Flow (gpm) | ▲ 26.6 gpm | 21 gpm |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 120C | New HollandWorkmaster 120 PLUS |
|---|
| Engine Manufacturer | FPT | FPT |
|---|---|---|
| Engine Model | Not Published | F36 |
| Engine Type | 4-cylinder diesel | 4-cylinder |
| No. of Cylinders | 4 | 4 |
| Displacement | 207 in³ | Not Published |
| Rated Engine Speed | 2300 rpm | Not Published |
| Engine Power (Gross) | 117 hp | 117 hp |
| PTO Power | 100 hp | 99 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Liquid-cooled | Not Published |
| Air Cleaner | Not Published | Not Published |
| Fuel System | High-pressure common rail electronic direct injection | Not Published |
| Alternator | Not Published | Not Published |
Case IH Farmall 120C vs New Holland Workmaster 120 PLUS: Quick Answers
- Which has more horsepower, the Case IH Farmall 120C or the New Holland Workmaster 120 PLUS?
- They are effectively tied: both machines are rated at 117 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall 120C or the New Holland Workmaster 120 PLUS?
- The Case IH Farmall 120C leads on pto hp at 100 hp hp, compared to 99 hp hp for the New Holland Workmaster 120 PLUS.
- Which has more loader lift capacity, the Case IH Farmall 120C or the New Holland Workmaster 120 PLUS?
- The New Holland Workmaster 120 PLUS leads on loader lift at 3,882 lb lb, compared to 2,632 lb lb for the Case IH Farmall 120C.
