Across 5 measurable specs, this matchup is a dead heat: 2 categories to the Case IH Farmall 125A, 2 to the Mahindra 9125, 1 tied. Machine pages: Case IH Farmall 125A and Mahindra 9125 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Case IH Farmall 125A Mahindra 9125 Engine HP (hp) 125 hp 125 hp PTO HP (hp) 105 hp ▲ 106 hpWeight (lb) 9,061 lb ▲ 9,385 lbLoader Lift (lb) n/a 5,415 lb 3-Pt Lift (24 in) (lb) ▲ 7,200 lb5,787 lb Lift Height (in) n/a 162 in Breakout Force (lbf) n/a 6,874 lbf Hydraulic Flow (gpm) ▲ 31 gpm21.2 gpm Travel Speed (mph) 18.4 mph n/a

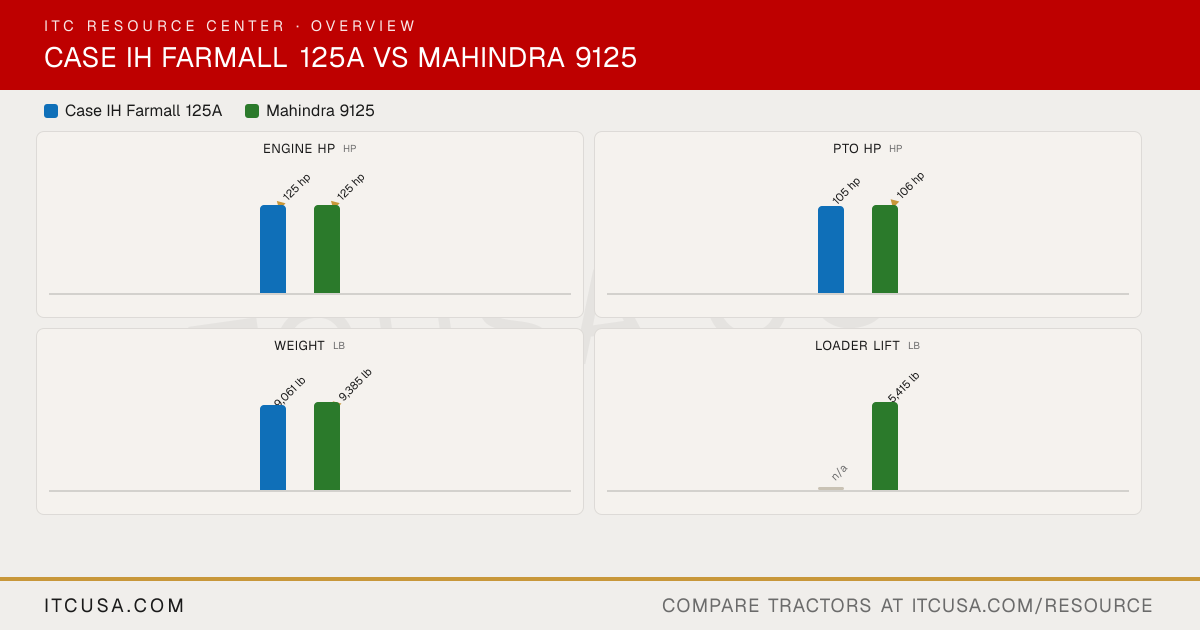

Overview Loader Work PTO Work
The headline numbers at a glance.
Case IH Farmall 125A Mahindra 9125
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Case IH Farmall 125A Mahindra 9125
▶ EngineEngine Manufacturer FPT Mahindra Engine Model Not Published Not Published Engine Type Turbocharged 6-cylinder diesel, 12 valves 4-cylinder, liquid-cooled inline diesel No. of Cylinders 6 4 Displacement 411 in³ 215.6 in³ Rated Engine Speed 2200 rpm 2300 rpm Engine Power (Gross) 125 hp 125 hp PTO Power 105 hp 106 hp Engine Emissions Constraints Tier 3 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Not Published Fuel System Mechanical injection Common rail direct injection Alternator 120 A Not Published ▶ HydraulicsPump Type Fixed displacement pump Not Published Implement Flow 22 gpm 21.2 gpm Steering Flow 9 gpm 9.25 gpm Total Hydraulic Flow 31 gpm Not Published Overall Hydraulic Pump Flow 31 gpm Not Published Hydraulic System Type Open center Open center with position & draft control, telescoping stabilizers & flex links Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 (9125 S); 3 (9125 P) No. of Optional Remote Valves 4 1 ▶ Fluid CapacityFuel Tank Capacity 62 gal Not Published Coolant Capacity Not Published Not Published Crankcase Capacity 14.8 qt Not Published Transmission / Hydraulic System Capacity 65.5 qt Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540/1000 (two individual shafts) 540 @ 2220 rpm, 1000 @ 2227 rpm (9125 S); 540 @ 2220 rpm, 750 @ 2208 rpm, 1000 @ 2227 rpm (9125 P) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II with telescopic link ends Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 7,200 lb 5,787 lb (9125 S); 7,628 lb (9125 P) Lift Control Type Not Published Electronic draft control with fender switches ▶ Transmission & DrivetrainTransmission Type Not Published Power shuttle with synchromesh No. of Speeds 8F/8R (16F/8R optional) 12F / 12R (9125 S); 24F / 24R + 8 creepers (9125 P) Max Travel Speed (Forward) 18.4 mph Not Published Max Travel Speed (Reverse) 19.0 mph Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Mechanical seat (standard); air suspension seat (optional) mComfort seat with adjustable air ride suspension, foldable adjustable armrest, recline and adjustable headrest Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Not Published 169.3 in Overall Width Not Published 90.9 in Wheelbase 105 in (2WD); 104 in (MFD) Not Published Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 107 in ▶ WeightTractor Weight (Base) 9,061 lb (2WD ROPS); 9,700 lb (MFD ROPS); 9,766 lb (2WD cab); 10,406 lb (MFD cab) 9,385 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear 18.4-34 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Lock & Go automatic quick coupling loader mount with Multi-Coupler hydraulic connection Skid steer style quick attach couplers Loader Model L755 9125L Loader Lift Height Not Published 9125L: 162 in Loader Lift Capacity (Full Height) Not Published 9125L: 5,415 lb Loader Breakout Force Not Published 9125L: 6,874 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
Case IH Farmall 125A vs Mahindra 9125: Quick Answers
Which has more horsepower, the Case IH Farmall 125A or the Mahindra 9125? They are effectively tied: both machines are rated at 125 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 125A or the Mahindra 9125? The Mahindra 9125 leads on pto hp at 106 hp hp, compared to 105 hp hp for the Case IH Farmall 125A.
Which is heavier, the Case IH Farmall 125A or the Mahindra 9125? The Mahindra 9125 leads on weight at 9,385 lb lb, compared to 9,061 lb lb for the Case IH Farmall 125A.
Which has more three-point hitch lift capacity, the Case IH Farmall 125A or the Mahindra 9125? The Case IH Farmall 125A leads on 3-pt lift (24 in) at 7,200 lb lb, compared to 5,787 lb lb for the Mahindra 9125.
