Case IH Farmall 25A vs Case IH Farmall 25SC

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Case IH Farmall 25A leads 7 categories to 1. Machine pages: Case IH Farmall 25A and Case IH Farmall 25SC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25A	Case IH Farmall 25SC
Engine HP (hp)	24.6 hp	▲ 24.7 hp
PTO HP (hp)	▲ 19.2 hp	17.2 hp
Weight (lb)	▲ 2,469 lb	1,444 lb
Loader Lift (lb)	▲ 1,214 lb	693 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	728 lb
Lift Height (in)	▲ 94.3 in	72 in
Breakout Force (lbf)	▲ 1,926 lbf	1,426 lbf
Hydraulic Flow (gpm)	▲ 7.9 gpm	6.7 gpm
Travel Speed (mph)	n/a	9.1 mph

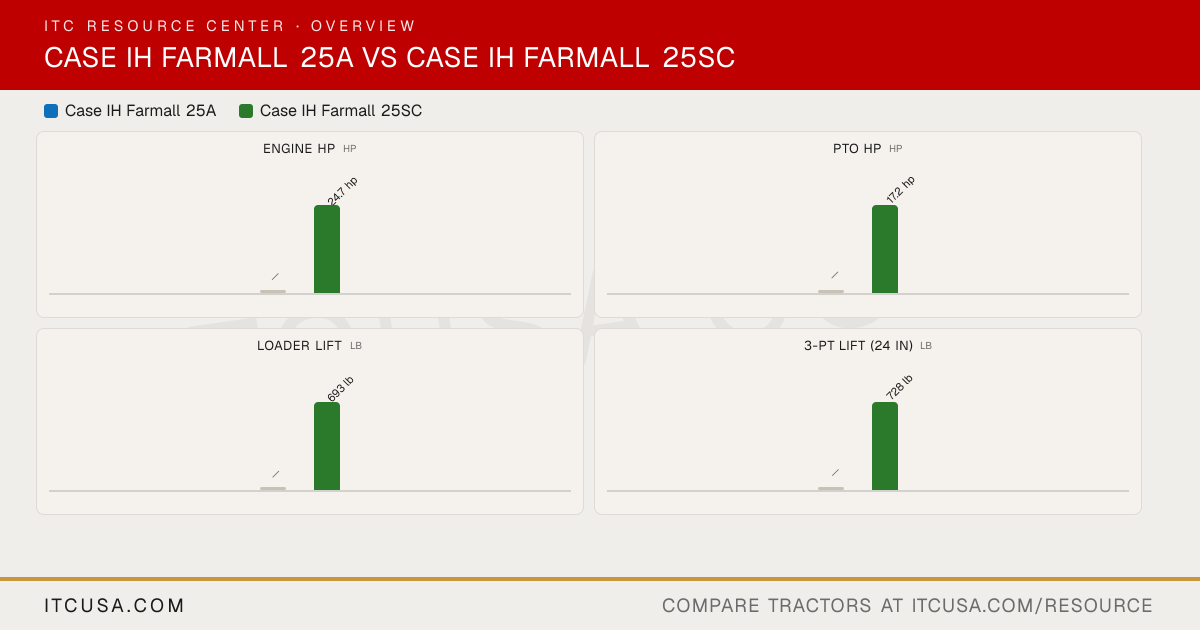

The headline numbers at a glance.

Case IH Farmall 25ACase IH Farmall 25SC

Engine HPhp

24.6 hp

▲24.7 hp

PTO HPhp

▲19.2 hp

17.2 hp

Weightlb

▲2,469 lb

1,444 lb

Loader Liftlb

▲1,214 lb

693 lb

3-Pt Lift (24 in)lb

▲1,433 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	Case IHFarmall 25SC


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, indirect-injection, water-cooled diesel, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	80.4 in³	77.3 in³
Rated Engine Speed	2500 rpm	3000 rpm
Engine Power (Gross)	24.6 hp	24.7 hp
PTO Power	19.2 hp	17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Indirect injection
Alternator	Not Published	50 A

Pump Type	Not Published	Not Published
Implement Flow	7.9 gpm	4.6 gpm
Steering Flow	Not Published	2.1 gpm
Total Hydraulic Flow	Not Published	6.7 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Standard, 2,500 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	Not Published	992 lb
Hitch Lift Capacity (at 24”)	1,433 lb	728 lb
Lift Control Type	Not Published	Not Published

Transmission Type	hydrostatic (optional)	2-range hydrostatic (wet clutch)
No. of Speeds	infinite	Infinite, 2-range hydrostatic
Max Travel Speed (Forward)	Not Published	9.1 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry clutch	Wet clutch
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	117.2 in	97 in
Overall Width	Not Published	46.7 in
Wheelbase	65.9 in	56 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	88.2 in	87.4 in
Height to Top of ROPS (folded)	68.2 in	62.4 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,469 lb	1,444 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R3 turf or R4 industrial
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	18x8.5-10
R3 Turf - Rear	Not Published	26x12-12
R4 Industrial - Front	Not Published	18x8.5-10
R4 Industrial - Rear	Not Published	26x12-12

Quick Attach Loader System	Not Published	L320S
Loader Model	L330	L320S
Loader Lift Height	94.3 in	72 in
Loader Lift Capacity (Full Height)	1214 lb	693 lb
Loader Breakout Force	1926 lb	1426 lb

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	Not Published

Find a Case IH dealer near you

Case IH Farmall 25A vs Case IH Farmall 25SC: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the Case IH Farmall 25SC?: The Case IH Farmall 25SC leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall 25A.
Which has more PTO horsepower, the Case IH Farmall 25A or the Case IH Farmall 25SC?: The Case IH Farmall 25A leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.
Which is heavier, the Case IH Farmall 25A or the Case IH Farmall 25SC?: The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.
Which has more loader lift capacity, the Case IH Farmall 25A or the Case IH Farmall 25SC?: The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.
Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the Case IH Farmall 25SC?: The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25A	Case IH Farmall 25SC
Engine HP (hp)	24.6 hp	▲ 24.7 hp
PTO HP (hp)	▲ 19.2 hp	17.2 hp
Weight (lb)	▲ 2,469 lb	1,444 lb
Loader Lift (lb)	▲ 1,214 lb	693 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	728 lb
Lift Height (in)	▲ 94.3 in	72 in
Breakout Force (lbf)	▲ 1,926 lbf	1,426 lbf
Hydraulic Flow (gpm)	▲ 7.9 gpm	6.7 gpm
Travel Speed (mph)	n/a	9.1 mph

The headline numbers at a glance.

Case IH Farmall 25ACase IH Farmall 25SC

Engine HPhp

24.6 hp

▲24.7 hp

PTO HPhp

▲19.2 hp

17.2 hp

Weightlb

▲2,469 lb

1,444 lb

Loader Liftlb

▲1,214 lb

693 lb

3-Pt Lift (24 in)lb

▲1,433 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	Case IHFarmall 25SC


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, indirect-injection, water-cooled diesel, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	80.4 in³	77.3 in³
Rated Engine Speed	2500 rpm	3000 rpm
Engine Power (Gross)	24.6 hp	24.7 hp
PTO Power	19.2 hp	17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Indirect injection
Alternator	Not Published	50 A

Pump Type	Not Published	Not Published
Implement Flow	7.9 gpm	4.6 gpm
Steering Flow	Not Published	2.1 gpm
Total Hydraulic Flow	Not Published	6.7 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Standard, 2,500 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	Not Published	992 lb
Hitch Lift Capacity (at 24”)	1,433 lb	728 lb
Lift Control Type	Not Published	Not Published

Transmission Type	hydrostatic (optional)	2-range hydrostatic (wet clutch)
No. of Speeds	infinite	Infinite, 2-range hydrostatic
Max Travel Speed (Forward)	Not Published	9.1 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry clutch	Wet clutch
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	117.2 in	97 in
Overall Width	Not Published	46.7 in
Wheelbase	65.9 in	56 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	88.2 in	87.4 in
Height to Top of ROPS (folded)	68.2 in	62.4 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,469 lb	1,444 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R3 turf or R4 industrial
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	18x8.5-10
R3 Turf - Rear	Not Published	26x12-12
R4 Industrial - Front	Not Published	18x8.5-10
R4 Industrial - Rear	Not Published	26x12-12

Quick Attach Loader System	Not Published	L320S
Loader Model	L330	L320S
Loader Lift Height	94.3 in	72 in
Loader Lift Capacity (Full Height)	1214 lb	693 lb
Loader Breakout Force	1926 lb	1426 lb

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	Not Published

Find a Case IH dealer near you

Case IH Farmall 25A vs Case IH Farmall 25SC: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the Case IH Farmall 25SC?

The Case IH Farmall 25SC leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall 25A.

Which has more PTO horsepower, the Case IH Farmall 25A or the Case IH Farmall 25SC?

The Case IH Farmall 25A leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.

Which is heavier, the Case IH Farmall 25A or the Case IH Farmall 25SC?

The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.

Which has more loader lift capacity, the Case IH Farmall 25A or the Case IH Farmall 25SC?

The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the Case IH Farmall 25SC?

The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.
