Case IH Farmall 25A vs John Deere 3025E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Case IH Farmall 25A leads 5 categories to 2 (1 tied). Machine pages: Case IH Farmall 25A and John Deere 3025E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25A	John Deere 3025E
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.1 hp	▲ 19.4 hp
Weight (lb)	▲ 2,469 lb	2,222 lb
Loader Lift (lb)	▲ 1,214 lb	1,186 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,356 lb
Lift Height (in)	▲ 94.3 in	84 in
Breakout Force (lbf)	▲ 1,926 lbf	1,704 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 9.3 gpm

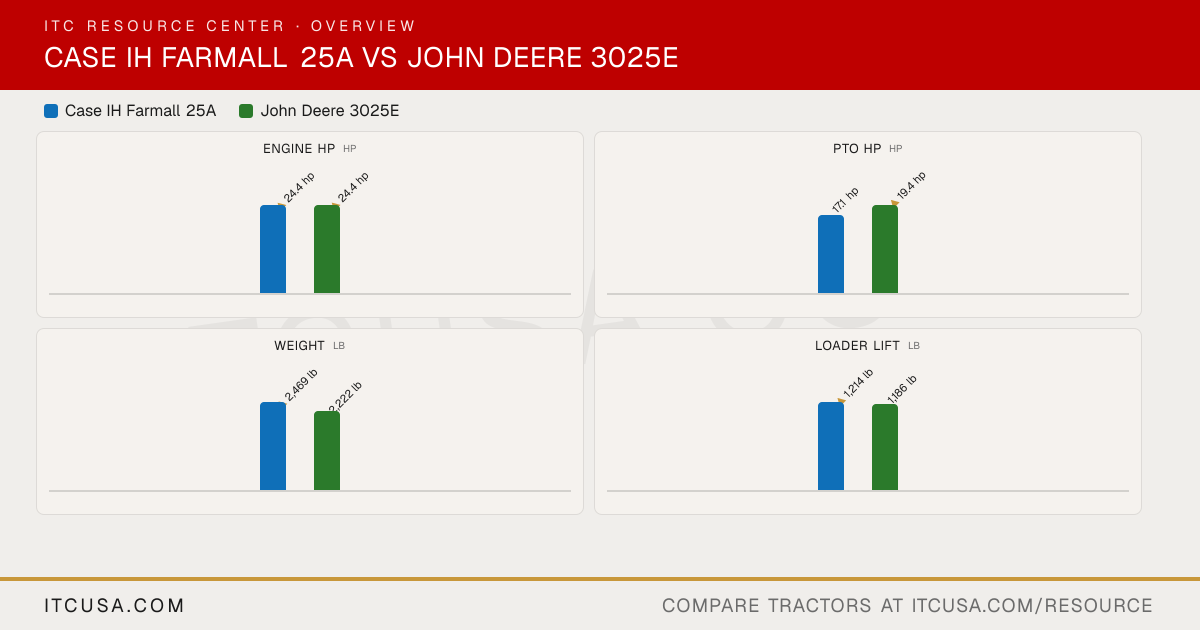

The headline numbers at a glance.

Case IH Farmall 25AJohn Deere 3025E

Engine HPhp

▲24.4 hp

PTO HPhp

17.1 hp

▲19.4 hp

Weightlb

▲2,469 lb

2,222 lb

Loader Liftlb

▲1,214 lb

1,186 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,356 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	John Deere3025E


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	Not Published	3TNV88F-EPJT2
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	Diesel, naturally aspirated, direct injection
No. of Cylinders	3	3
Displacement	80.4 in³	100.2 in³
Rated Engine Speed	2500 rpm	2400 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.1 hp	19.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water pump
Air Cleaner	Not Published	Dry type with safety element
Fuel System	Not Published	Direct injection
Alternator	Not Published	55 A, 12 V

Pump Type	Not Published	Implement/steering pump: tandem gear pump; hydrostatic pump: PV axial-piston pump
Implement Flow	7.9 gpm	5.3 gpm
Steering Flow	Not Published	4.0 gpm
Total Hydraulic Flow	Not Published	9.3 gpm
Overall Hydraulic Pump Flow	Not Published	9.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Up to 2 (optional)

Fuel Tank Capacity	7.4 gal	7.5 gal
Coolant Capacity	Not Published	5.2 qt
Crankcase Capacity	Not Published	4.5 qt
Transmission / Hydraulic System Capacity	Not Published	5.5 gal
Front Axle Fluid Capacity	Not Published	4 qt

PTO Type	Independent	Not Published
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	1,433 lb	1,356 lb
Lift Control Type	Not Published	Not Published

Transmission Type	Hydrostatic (optional)	Hydrostatic transmission (HST)
No. of Speeds	Infinite (hydrostatic)	Not Published
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Not Published

Frame Type	Not Published	Open operator station (OOS)
Steering	Power steering	Power steering
Brakes	Not Published	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	4WD (MFWD)
Front Axle Rating	Not Published	1,760 lb
Drawbar Capacity	Not Published	880 lb (maximum vertical load)

Overall Width	Not Published	56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires)
Wheelbase	65.9 in	62.8 in
Ground Clearance	Not Published	12.7 in (R4 tires)
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	88.2 in	95.3 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	115.9 in (with 3-point hitch)

Tractor Weight (Base)	2,469 lb	2,222 lb
Weight with ROPS and Loader	Not Published	2,972 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	Not Published	27X8.50-15
R3 Turf - Rear	Not Published	41X14-20
R4 Industrial - Front	Not Published	25X8.50-14 or 27X8.50-15
R4 Industrial - Rear	Not Published	15-19.5 or 43x16-20

Quick Attach Loader System	Not Published	Quick-change attachment carrier
Loader Model	L330	300E
Loader Lift Height	94.3 in	84 in (at pivot pin)
Loader Lift Capacity (Full Height)	1,214 lb	1,186 lb (at pivot pin)
Loader Breakout Force	1,926 lb	1,704 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Basic 24 months or 2,000 hours; powertrain 72 months or 2,000 hours

Find a Case IH dealer near you Find a John Deere dealer near you

Case IH Farmall 25A vs John Deere 3025E: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the John Deere 3025E?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 25A or the John Deere 3025E?: The John Deere 3025E leads on pto hp at 19.4 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.
Which is heavier, the Case IH Farmall 25A or the John Deere 3025E?: The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 2,222 lb lb for the John Deere 3025E.
Which has more loader lift capacity, the Case IH Farmall 25A or the John Deere 3025E?: The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 1,186 lb lb for the John Deere 3025E.
Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the John Deere 3025E?: The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,356 lb lb for the John Deere 3025E.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25A	John Deere 3025E
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.1 hp	▲ 19.4 hp
Weight (lb)	▲ 2,469 lb	2,222 lb
Loader Lift (lb)	▲ 1,214 lb	1,186 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,356 lb
Lift Height (in)	▲ 94.3 in	84 in
Breakout Force (lbf)	▲ 1,926 lbf	1,704 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 9.3 gpm

The headline numbers at a glance.

Case IH Farmall 25AJohn Deere 3025E

Engine HPhp

▲24.4 hp

PTO HPhp

17.1 hp

▲19.4 hp

Weightlb

▲2,469 lb

2,222 lb

Loader Liftlb

▲1,214 lb

1,186 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,356 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	John Deere3025E


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	Not Published	3TNV88F-EPJT2
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	Diesel, naturally aspirated, direct injection
No. of Cylinders	3	3
Displacement	80.4 in³	100.2 in³
Rated Engine Speed	2500 rpm	2400 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.1 hp	19.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water pump
Air Cleaner	Not Published	Dry type with safety element
Fuel System	Not Published	Direct injection
Alternator	Not Published	55 A, 12 V

Pump Type	Not Published	Implement/steering pump: tandem gear pump; hydrostatic pump: PV axial-piston pump
Implement Flow	7.9 gpm	5.3 gpm
Steering Flow	Not Published	4.0 gpm
Total Hydraulic Flow	Not Published	9.3 gpm
Overall Hydraulic Pump Flow	Not Published	9.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Up to 2 (optional)

Fuel Tank Capacity	7.4 gal	7.5 gal
Coolant Capacity	Not Published	5.2 qt
Crankcase Capacity	Not Published	4.5 qt
Transmission / Hydraulic System Capacity	Not Published	5.5 gal
Front Axle Fluid Capacity	Not Published	4 qt

PTO Type	Independent	Not Published
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	1,433 lb	1,356 lb
Lift Control Type	Not Published	Not Published

Transmission Type	Hydrostatic (optional)	Hydrostatic transmission (HST)
No. of Speeds	Infinite (hydrostatic)	Not Published
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Not Published

Frame Type	Not Published	Open operator station (OOS)
Steering	Power steering	Power steering
Brakes	Not Published	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	4WD (MFWD)
Front Axle Rating	Not Published	1,760 lb
Drawbar Capacity	Not Published	880 lb (maximum vertical load)

Overall Width	Not Published	56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires)
Wheelbase	65.9 in	62.8 in
Ground Clearance	Not Published	12.7 in (R4 tires)
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	88.2 in	95.3 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	115.9 in (with 3-point hitch)

Tractor Weight (Base)	2,469 lb	2,222 lb
Weight with ROPS and Loader	Not Published	2,972 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	Not Published	27X8.50-15
R3 Turf - Rear	Not Published	41X14-20
R4 Industrial - Front	Not Published	25X8.50-14 or 27X8.50-15
R4 Industrial - Rear	Not Published	15-19.5 or 43x16-20

Quick Attach Loader System	Not Published	Quick-change attachment carrier
Loader Model	L330	300E
Loader Lift Height	94.3 in	84 in (at pivot pin)
Loader Lift Capacity (Full Height)	1,214 lb	1,186 lb (at pivot pin)
Loader Breakout Force	1,926 lb	1,704 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Basic 24 months or 2,000 hours; powertrain 72 months or 2,000 hours

Find a Case IH dealer near you Find a John Deere dealer near you

Case IH Farmall 25A vs John Deere 3025E: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the John Deere 3025E?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 25A or the John Deere 3025E?

The John Deere 3025E leads on pto hp at 19.4 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.

Which is heavier, the Case IH Farmall 25A or the John Deere 3025E?

The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 2,222 lb lb for the John Deere 3025E.

Which has more loader lift capacity, the Case IH Farmall 25A or the John Deere 3025E?

The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 1,186 lb lb for the John Deere 3025E.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the John Deere 3025E?

The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,356 lb lb for the John Deere 3025E.
