Case IH Farmall 25A vs Kubota B2601HSD

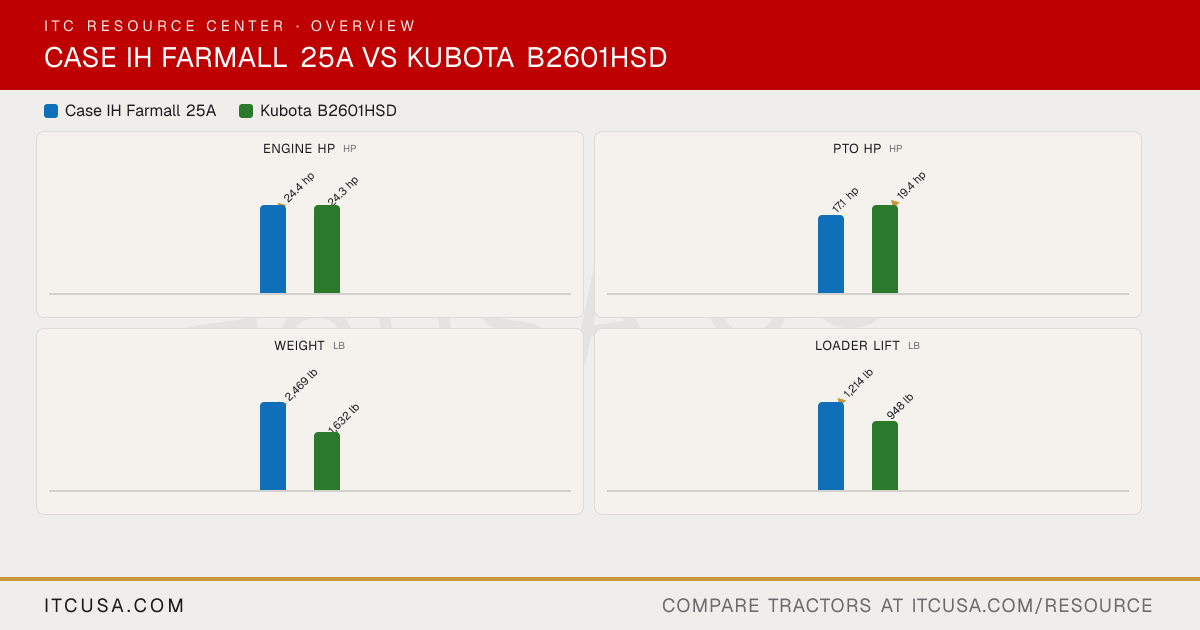

Across 8 measurable specs, the Case IH Farmall 25A leads 5 categories to 3. Machine pages: Case IH Farmall 25A and Kubota B2601HSD.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	KubotaB2601HSD

▶Engine
Engine Manufacturer	Mitsubishi	Kubota
Engine Model	Not Published	D1105
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	E-TVCS, liquid cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	80.4 in³	68.5 in³
Rated Engine Speed	2500 rpm	2800 rpm
Engine Power (Gross)	24.4 hp	24.3 hp
PTO Power	17.1 hp	19.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Pressurized radiator
Air Cleaner	Not Published	Dual paper element
Fuel System	Not Published	diesel
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Not Published	Dual pump
Implement Flow	7.9 gpm	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	Not Published	8.3 gpm
Overall Hydraulic Pump Flow	Not Published	8.3 gpm
Hydraulic System Type	Open center	open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	2
▶Fluid Capacity
Fuel Tank Capacity	7.4 gal	6.1 gal
Coolant Capacity	Not Published	4.0 qt
Crankcase Capacity	Not Published	3.3 qt
Transmission / Hydraulic System Capacity	Not Published	4.0 gal
Front Axle Fluid Capacity	Not Published	3.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	independent, 2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,411 lb
Lift Control Type	Not Published	position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (optional)	HST (3 ranges)
No. of Speeds	Infinite (hydrostatic)	3 ranges (HST)
Max Travel Speed (Forward)	Not Published	12.7 mph
Max Travel Speed (Reverse)	Not Published	9.5 mph
Clutch	Not Published	N/A
Differential Lock & Limited Slip Options	Mechanical differential lock	Standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Hydraulic power steering
Brakes	Not Published	Multi-plate wet disc
Seat Suspension & Adjustability	Not Published	High-back suspension seat with standard arm rests; tilt steering (HST models)
Front Axle Type	Mechanical Front Drive (MFD)	Four-wheel drive
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	660 lb
▶Dimensions & Maneuverability
Overall Width	Not Published	49 in
Wheelbase	65.9 in	61.4 in
Ground Clearance	Not Published	12.8 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brake applied)
Height to Top of ROPS	88.2 in	85.0 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	94.9 in (without 3-point hitch)
▶Weight
Tractor Weight (Base)	2,469 lb	1,632 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Not Published	Farm (R1): 7-12 front, 11.2-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear
R1 Agricultural - Front	Not Published	7-12
R1 Agricultural - Rear	Not Published	11.2-16
R3 Turf - Front	Not Published	23x8.50-12
R3 Turf - Rear	Not Published	33x12.5-15
R4 Industrial - Front	Not Published	23x8.50-12
R4 Industrial - Rear	Not Published	12-16.5
▶Loader & Attachments
Quick Attach Loader System	Not Published	LA435 Swift-Tach Loader (1-lever Quick Coupler)
Loader Model	L330	LA435
Loader Lift Height	94.3 in	78.5 in (at pivot pin)
Loader Lift Capacity (Full Height)	1,214 lb	948 lb (at pivot pin)
Loader Breakout Force	1,926 lb	2,146 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00

Find a Case IH dealer near you→Find a Kubota dealer near you→

Case IH Farmall 25A vs Kubota B2601HSD: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the Kubota B2601HSD?

The Case IH Farmall 25A leads on engine hp at 24.4 hp hp, compared to 24.3 hp hp for the Kubota B2601HSD.

Which has more PTO horsepower, the Case IH Farmall 25A or the Kubota B2601HSD?

The Kubota B2601HSD leads on pto hp at 19.4 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.

Which is heavier, the Case IH Farmall 25A or the Kubota B2601HSD?

The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,632 lb lb for the Kubota B2601HSD.

Which has more loader lift capacity, the Case IH Farmall 25A or the Kubota B2601HSD?

The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 948 lb lb for the Kubota B2601HSD.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the Kubota B2601HSD?

The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,411 lb lb for the Kubota B2601HSD.
