Case IH Farmall 25A vs LS Tractor MT225S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Case IH Farmall 25A, 4 to the LS Tractor MT225S. Machine pages: Case IH Farmall 25A and LS Tractor MT225S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25A	LS Tractor MT225S
Engine HP (hp)	24.4 hp	▲ 24.7 hp
PTO HP (hp)	17.1 hp	▲ 19.3 hp
Weight (lb)	▲ 2,469 lb	1,764 lb
Loader Lift (lb)	▲ 1,214 lb	1,127 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,323 lb
Lift Height (in)	▲ 94.3 in	84.4 in
Breakout Force (lbf)	1,926 lbf	▲ 2,290 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 9.3 gpm
Travel Speed (mph)	n/a	12.9 mph

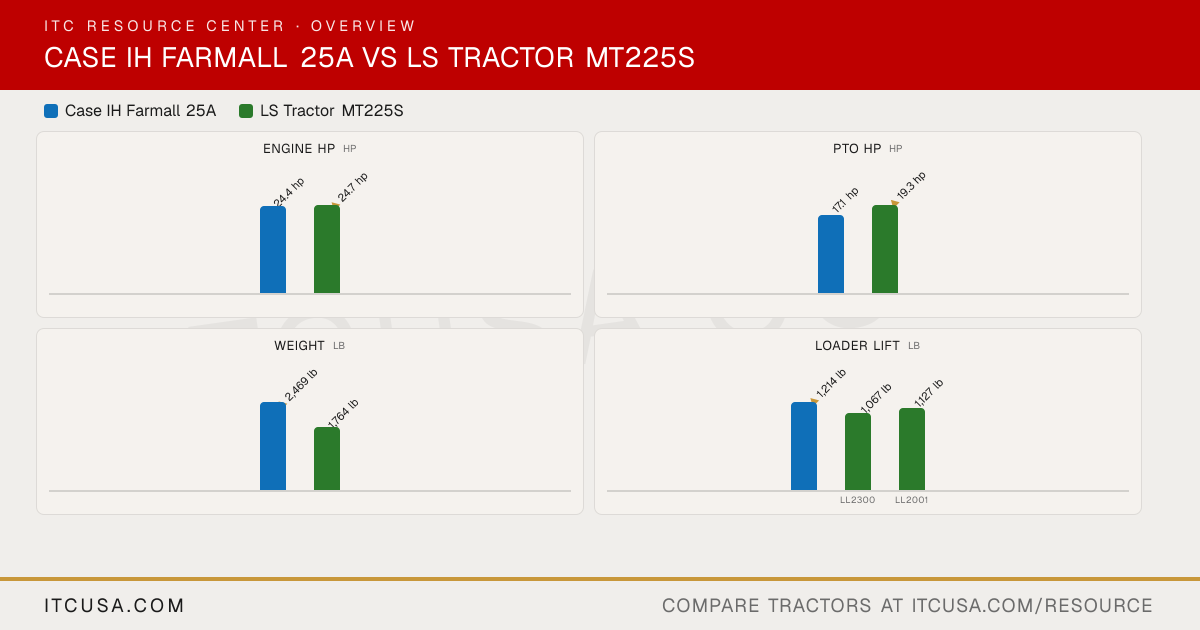

The headline numbers at a glance.

Case IH Farmall 25ALS Tractor MT225S

Engine HPhp

24.4 hp

▲24.7 hp

PTO HPhp

17.1 hp

▲19.3 hp

Weightlb

▲2,469 lb

1,764 lb

Loader Liftlb

▲1,214 lb

1,067 lb

1,127 lb

LL2300LL2001

3-Pt Lift (24 in)lb

▲1,433 lb

1,323 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	LS TractorMT225S


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	Not Published	3TNV80F-ZXKLST
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, indirect injection (swirl chamber)
No. of Cylinders	3	3
Displacement	80.4 in³	77.3 in³
Rated Engine Speed	2500 rpm	2800 rpm
Engine Power (Gross)	24.4 hp	24.7 hp
PTO Power	17.1 hp	19.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	In-line injection pump
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Engine driven
Implement Flow	7.9 gpm	5.6 gpm
Steering Flow	Not Published	3.7 gpm
Total Hydraulic Flow	Not Published	9.3 gpm
Overall Hydraulic Pump Flow	Not Published	9.3 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None
No. of Optional Remote Valves	1	1 pair (optional)

Fuel Tank Capacity	7.4 gal	6.79 gal
Coolant Capacity	Not Published	0.9 gal
Crankcase Capacity	Not Published	0.8 gal
Transmission / Hydraulic System Capacity	Not Published	4.5 gal
Front Axle Fluid Capacity	Not Published	0.8 gal

PTO Type	Independent	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional, 2,000 rpm	Optional (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,896 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,323 lb
Lift Control Type	Not Published	Position control

Transmission Type	Hydrostatic (optional)	Hydrostatic Drive
No. of Speeds	Infinite (hydrostatic)	3 ranges
Max Travel Speed (Forward)	Not Published	12.86 mph
Max Travel Speed (Reverse)	Not Published	8.45 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Four wheel drive (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	48.7 in
Wheelbase	65.9 in	63.4 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake)
Height to Top of ROPS	88.2 in	86.4 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	111.9 in (frame to link)

Tractor Weight (Base)	2,469 lb	1,764 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	IND (R4 Industrial), Versa Turf
R1 Agricultural - Front	Not Published	7-12
R1 Agricultural - Rear	Not Published	11.2-16
R3 Turf - Front	Not Published	22x8.50-12
R3 Turf - Rear	Not Published	31x15.50-15
R4 Industrial - Front	Not Published	23x8.50-12
R4 Industrial - Rear	Not Published	12-16.5

Quick Attach Loader System	Not Published	LL2300: Bobcat type quick attach
Loader Model	L330	LL2300; LL2001
Loader Lift Height	94.3 in	LL2300: 84.4 in; LL2001: 84.4 in
Loader Lift Capacity (Full Height)	1,214 lb	LL2300: 1,067 lb; LL2001: 1,127 lb (at pivot pin)
Loader Breakout Force	1,926 lb	LL2300: 2,290 lb; LL2001: 1,744 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25A vs LS Tractor MT225S: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the LS Tractor MT225S?: The LS Tractor MT225S leads on engine hp at 24.7 hp hp, compared to 24.4 hp hp for the Case IH Farmall 25A.
Which has more PTO horsepower, the Case IH Farmall 25A or the LS Tractor MT225S?: The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.
Which is heavier, the Case IH Farmall 25A or the LS Tractor MT225S?: The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,764 lb lb for the LS Tractor MT225S.
Which has more loader lift capacity, the Case IH Farmall 25A or the LS Tractor MT225S?: The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 1,127 lb lb for the LS Tractor MT225S.
Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the LS Tractor MT225S?: The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,323 lb lb for the LS Tractor MT225S.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25A	LS Tractor MT225S
Engine HP (hp)	24.4 hp	▲ 24.7 hp
PTO HP (hp)	17.1 hp	▲ 19.3 hp
Weight (lb)	▲ 2,469 lb	1,764 lb
Loader Lift (lb)	▲ 1,214 lb	1,127 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,323 lb
Lift Height (in)	▲ 94.3 in	84.4 in
Breakout Force (lbf)	1,926 lbf	▲ 2,290 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 9.3 gpm
Travel Speed (mph)	n/a	12.9 mph

The headline numbers at a glance.

Case IH Farmall 25ALS Tractor MT225S

Engine HPhp

24.4 hp

▲24.7 hp

PTO HPhp

17.1 hp

▲19.3 hp

Weightlb

▲2,469 lb

1,764 lb

Loader Liftlb

▲1,214 lb

1,067 lb

1,127 lb

LL2300LL2001

3-Pt Lift (24 in)lb

▲1,433 lb

1,323 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	LS TractorMT225S


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	Not Published	3TNV80F-ZXKLST
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, indirect injection (swirl chamber)
No. of Cylinders	3	3
Displacement	80.4 in³	77.3 in³
Rated Engine Speed	2500 rpm	2800 rpm
Engine Power (Gross)	24.4 hp	24.7 hp
PTO Power	17.1 hp	19.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	In-line injection pump
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Engine driven
Implement Flow	7.9 gpm	5.6 gpm
Steering Flow	Not Published	3.7 gpm
Total Hydraulic Flow	Not Published	9.3 gpm
Overall Hydraulic Pump Flow	Not Published	9.3 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None
No. of Optional Remote Valves	1	1 pair (optional)

Fuel Tank Capacity	7.4 gal	6.79 gal
Coolant Capacity	Not Published	0.9 gal
Crankcase Capacity	Not Published	0.8 gal
Transmission / Hydraulic System Capacity	Not Published	4.5 gal
Front Axle Fluid Capacity	Not Published	0.8 gal

PTO Type	Independent	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional, 2,000 rpm	Optional (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,896 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,323 lb
Lift Control Type	Not Published	Position control

Transmission Type	Hydrostatic (optional)	Hydrostatic Drive
No. of Speeds	Infinite (hydrostatic)	3 ranges
Max Travel Speed (Forward)	Not Published	12.86 mph
Max Travel Speed (Reverse)	Not Published	8.45 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Four wheel drive (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	48.7 in
Wheelbase	65.9 in	63.4 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake)
Height to Top of ROPS	88.2 in	86.4 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	111.9 in (frame to link)

Tractor Weight (Base)	2,469 lb	1,764 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	IND (R4 Industrial), Versa Turf
R1 Agricultural - Front	Not Published	7-12
R1 Agricultural - Rear	Not Published	11.2-16
R3 Turf - Front	Not Published	22x8.50-12
R3 Turf - Rear	Not Published	31x15.50-15
R4 Industrial - Front	Not Published	23x8.50-12
R4 Industrial - Rear	Not Published	12-16.5

Quick Attach Loader System	Not Published	LL2300: Bobcat type quick attach
Loader Model	L330	LL2300; LL2001
Loader Lift Height	94.3 in	LL2300: 84.4 in; LL2001: 84.4 in
Loader Lift Capacity (Full Height)	1,214 lb	LL2300: 1,067 lb; LL2001: 1,127 lb (at pivot pin)
Loader Breakout Force	1,926 lb	LL2300: 2,290 lb; LL2001: 1,744 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25A vs LS Tractor MT225S: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the LS Tractor MT225S?

The LS Tractor MT225S leads on engine hp at 24.7 hp hp, compared to 24.4 hp hp for the Case IH Farmall 25A.

Which has more PTO horsepower, the Case IH Farmall 25A or the LS Tractor MT225S?

The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.

Which is heavier, the Case IH Farmall 25A or the LS Tractor MT225S?

The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,764 lb lb for the LS Tractor MT225S.

Which has more loader lift capacity, the Case IH Farmall 25A or the LS Tractor MT225S?

The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 1,127 lb lb for the LS Tractor MT225S.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the LS Tractor MT225S?

The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,323 lb lb for the LS Tractor MT225S.
