Case IH Farmall 25A vs LS Tractor MT226HEC

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor MT226HEC leads 5 categories to 0 (3 tied). Machine pages: Case IH Farmall 25A and LS Tractor MT226HEC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25A	LS Tractor MT226HEC
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.1 hp	▲ 19 hp
Weight (lb)	2,469 lb	▲ 3,609 lb
Loader Lift (lb)	1,214 lb	▲ 1,599 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	94.3 in	94.3 in
Breakout Force (lbf)	1,926 lbf	▲ 2,962 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 10.7 gpm

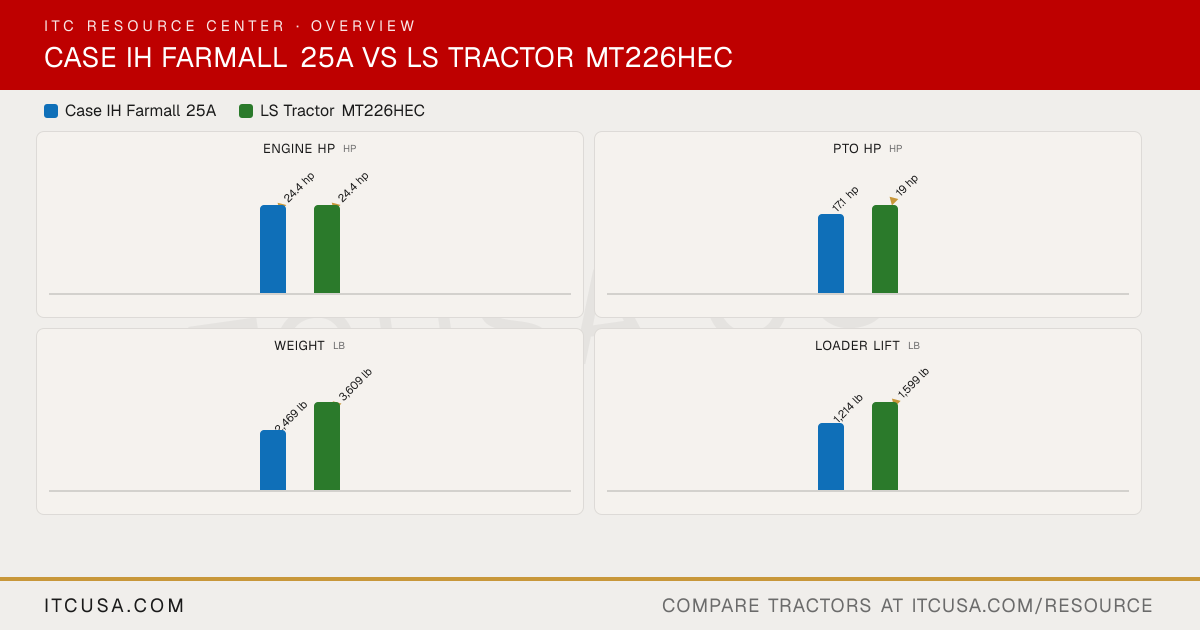

The headline numbers at a glance.

Case IH Farmall 25ALS Tractor MT226HEC

Engine HPhp

▲24.4 hp

PTO HPhp

17.1 hp

▲19 hp

Weightlb

2,469 lb

▲3,609 lb

Loader Liftlb

1,214 lb

▲1,599 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	LS TractorMT226HEC


Engine Manufacturer	Mitsubishi	YANMAR
Engine Model	Not Published	3TNV88F-EPLST
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, liquid-cooled, diesel, naturally aspirated, DI
No. of Cylinders	3	3
Displacement	80.4 in³	100.2 in³
Rated Engine Speed	2500 rpm	2400 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.1 hp	19 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	DI (direct injection)
Alternator	Not Published	55 A, 12 V

Pump Type	Not Published	Gear pump
Implement Flow	7.9 gpm	6.1 gpm
Steering Flow	Not Published	4.6 gpm
Total Hydraulic Flow	Not Published	10.7 gpm
Overall Hydraulic Pump Flow	Not Published	10.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	1 pair
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	7.4 gal	11.4 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional, 2,000 rpm	Available (option)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	Hydrostatic (optional)	HST
No. of Speeds	Infinite (hydrostatic)	3 ranges
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	66 in
Wheelbase	65.9 in	69 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	11.5 ft (3.5 m)
Height to Top of ROPS	88.2 in	Not Published
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	90 in
Overall Length	117.2 in	125 in (frame to link)

Tractor Weight (Base)	2,469 lb	3,609 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Ag, Industrial, VT and Turf; VT same size as Industrial
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	Not Published	27x8.50-15
R4 Industrial - Rear	Not Published	43x16.00-20

Quick Attach Loader System	Not Published	LL3002: ISO 24410 Quick Attaching Coupler
Loader Model	L330	LL3002
Loader Lift Height	94.3 in	LL3002: 94.3 in
Loader Lift Capacity (Full Height)	1,214 lb	LL3002: 1,599 lb (at pivot pin, maximum height)
Loader Breakout Force	1,926 lb	LL3002: 2,962 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Two-year bumper to bumper; six-year limited powertrain

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25A vs LS Tractor MT226HEC: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the LS Tractor MT226HEC?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 25A or the LS Tractor MT226HEC?: The LS Tractor MT226HEC leads on pto hp at 19 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.
Which is heavier, the Case IH Farmall 25A or the LS Tractor MT226HEC?: The LS Tractor MT226HEC leads on weight at 3,609 lb lb, compared to 2,469 lb lb for the Case IH Farmall 25A.
Which has more loader lift capacity, the Case IH Farmall 25A or the LS Tractor MT226HEC?: The LS Tractor MT226HEC leads on loader lift at 1,599 lb lb, compared to 1,214 lb lb for the Case IH Farmall 25A.
Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the LS Tractor MT226HEC?: They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25A	LS Tractor MT226HEC
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.1 hp	▲ 19 hp
Weight (lb)	2,469 lb	▲ 3,609 lb
Loader Lift (lb)	1,214 lb	▲ 1,599 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	94.3 in	94.3 in
Breakout Force (lbf)	1,926 lbf	▲ 2,962 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 10.7 gpm

The headline numbers at a glance.

Case IH Farmall 25ALS Tractor MT226HEC

Engine HPhp

▲24.4 hp

PTO HPhp

17.1 hp

▲19 hp

Weightlb

2,469 lb

▲3,609 lb

Loader Liftlb

1,214 lb

▲1,599 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	LS TractorMT226HEC


Engine Manufacturer	Mitsubishi	YANMAR
Engine Model	Not Published	3TNV88F-EPLST
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, liquid-cooled, diesel, naturally aspirated, DI
No. of Cylinders	3	3
Displacement	80.4 in³	100.2 in³
Rated Engine Speed	2500 rpm	2400 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.1 hp	19 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	DI (direct injection)
Alternator	Not Published	55 A, 12 V

Pump Type	Not Published	Gear pump
Implement Flow	7.9 gpm	6.1 gpm
Steering Flow	Not Published	4.6 gpm
Total Hydraulic Flow	Not Published	10.7 gpm
Overall Hydraulic Pump Flow	Not Published	10.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	1 pair
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	7.4 gal	11.4 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional, 2,000 rpm	Available (option)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	Hydrostatic (optional)	HST
No. of Speeds	Infinite (hydrostatic)	3 ranges
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	66 in
Wheelbase	65.9 in	69 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	11.5 ft (3.5 m)
Height to Top of ROPS	88.2 in	Not Published
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	90 in
Overall Length	117.2 in	125 in (frame to link)

Tractor Weight (Base)	2,469 lb	3,609 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Ag, Industrial, VT and Turf; VT same size as Industrial
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	Not Published	27x8.50-15
R4 Industrial - Rear	Not Published	43x16.00-20

Quick Attach Loader System	Not Published	LL3002: ISO 24410 Quick Attaching Coupler
Loader Model	L330	LL3002
Loader Lift Height	94.3 in	LL3002: 94.3 in
Loader Lift Capacity (Full Height)	1,214 lb	LL3002: 1,599 lb (at pivot pin, maximum height)
Loader Breakout Force	1,926 lb	LL3002: 2,962 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Two-year bumper to bumper; six-year limited powertrain

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25A vs LS Tractor MT226HEC: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the LS Tractor MT226HEC?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 25A or the LS Tractor MT226HEC?

The LS Tractor MT226HEC leads on pto hp at 19 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.

Which is heavier, the Case IH Farmall 25A or the LS Tractor MT226HEC?

The LS Tractor MT226HEC leads on weight at 3,609 lb lb, compared to 2,469 lb lb for the Case IH Farmall 25A.

Which has more loader lift capacity, the Case IH Farmall 25A or the LS Tractor MT226HEC?

The LS Tractor MT226HEC leads on loader lift at 1,599 lb lb, compared to 1,214 lb lb for the Case IH Farmall 25A.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the LS Tractor MT226HEC?

They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
