Case IH Farmall 25A vs LS Tractor MT225E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor MT225E leads 3 categories to 1 (4 tied). Machine pages: Case IH Farmall 25A and LS Tractor MT225E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25A	LS Tractor MT225E
Engine HP (hp)	24.6 hp	24.6 hp
PTO HP (hp)	19.2 hp	19.2 hp
Weight (lb)	2,469 lb	2,469 lb
Loader Lift (lb)	1,214 lb	▲ 1,609 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	▲ 94.3 in	92 in
Breakout Force (lbf)	1,926 lbf	▲ 2,701 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 12.5 gpm

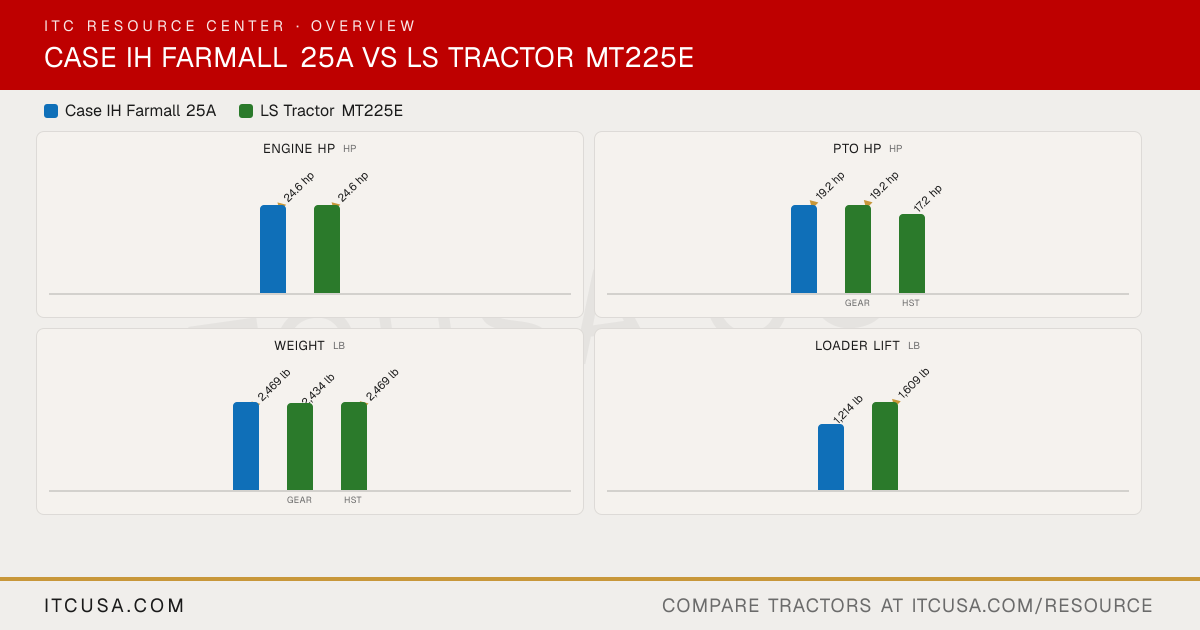

The headline numbers at a glance.

Case IH Farmall 25ALS Tractor MT225E

Engine HPhp

▲24.6 hp

PTO HPhp

▲19.2 hp

17.2 hp

gearHST

Weightlb

▲2,469 lb

2,434 lb

▲2,469 lb

gearHST

Loader Liftlb

1,214 lb

▲1,609 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	LS TractorMT225E


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	Not Published	S3L2
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, liquid-cooled, naturally aspirated IDI diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.6 hp	24.6 hp
PTO Power	19.2 hp	MT225E (gear): 19.2 hp; MT225HE (HST): 17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Indirect injection (IDI)
Alternator	Not Published	50 A, 12 V

Pump Type	Not Published	Gear pump, engine driven
Implement Flow	7.9 gpm	7.9 gpm
Steering Flow	Not Published	4.6 gpm
Total Hydraulic Flow	Not Published	12.5 gpm
Overall Hydraulic Pump Flow	Not Published	12.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None standard
No. of Optional Remote Valves	1	1 or 2 optional (double-acting, 2 or 4 quick couplers)

Fuel Tank Capacity	7.4 gal	7.4 gal
Coolant Capacity	Not Published	1.3 gal
Crankcase Capacity	Not Published	1.1 gal
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	hydrostatic (optional)	MT225E (gear): Synchro shuttle; MT225HE (HST): HST
No. of Speeds	infinite	MT225E (gear): F12 x R12; MT225HE (HST): 3 ranges (HST)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry clutch	MT225E (gear): dry single clutch; MT225HE (HST): not applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	117.2 in	118 in
Overall Width	Not Published	54 in
Wheelbase	65.9 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	10.5 ft
Height to Top of ROPS	88.2 in	88 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,469 lb	MT225E (gear): 2,434 lb; MT225HE (HST): 2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	Not Published	25x8.5-14
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	Not Published	25x8.5-14
R4 Industrial - Rear	Not Published	43x16-20

Quick Attach Loader System	Not Published	LL3300: quick attach loader with skid steer compatible bucket
Loader Model	L330	LL3300
Loader Lift Height	94.3 in	LL3300: 92 in
Loader Lift Capacity (Full Height)	1214 lb	LL3300: 1,609 lb
Loader Breakout Force	1926 lb	LL3300: 2,701 lb

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25A vs LS Tractor MT225E: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the LS Tractor MT225E?: They are effectively tied: both machines are rated at 24.6 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 25A or the LS Tractor MT225E?: They are effectively tied: both machines are rated at 19.2 hp hp for pto hp.
Which is heavier, the Case IH Farmall 25A or the LS Tractor MT225E?: They are effectively tied: both machines are rated at 2,469 lb lb for weight.
Which has more loader lift capacity, the Case IH Farmall 25A or the LS Tractor MT225E?: The LS Tractor MT225E leads on loader lift at 1,609 lb lb, compared to 1,214 lb lb for the Case IH Farmall 25A.
Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the LS Tractor MT225E?: They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25A	LS Tractor MT225E
Engine HP (hp)	24.6 hp	24.6 hp
PTO HP (hp)	19.2 hp	19.2 hp
Weight (lb)	2,469 lb	2,469 lb
Loader Lift (lb)	1,214 lb	▲ 1,609 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	▲ 94.3 in	92 in
Breakout Force (lbf)	1,926 lbf	▲ 2,701 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 12.5 gpm

The headline numbers at a glance.

Case IH Farmall 25ALS Tractor MT225E

Engine HPhp

▲24.6 hp

PTO HPhp

▲19.2 hp

17.2 hp

gearHST

Weightlb

▲2,469 lb

2,434 lb

▲2,469 lb

gearHST

Loader Liftlb

1,214 lb

▲1,609 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	LS TractorMT225E


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	Not Published	S3L2
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, liquid-cooled, naturally aspirated IDI diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.6 hp	24.6 hp
PTO Power	19.2 hp	MT225E (gear): 19.2 hp; MT225HE (HST): 17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Indirect injection (IDI)
Alternator	Not Published	50 A, 12 V

Pump Type	Not Published	Gear pump, engine driven
Implement Flow	7.9 gpm	7.9 gpm
Steering Flow	Not Published	4.6 gpm
Total Hydraulic Flow	Not Published	12.5 gpm
Overall Hydraulic Pump Flow	Not Published	12.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None standard
No. of Optional Remote Valves	1	1 or 2 optional (double-acting, 2 or 4 quick couplers)

Fuel Tank Capacity	7.4 gal	7.4 gal
Coolant Capacity	Not Published	1.3 gal
Crankcase Capacity	Not Published	1.1 gal
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	hydrostatic (optional)	MT225E (gear): Synchro shuttle; MT225HE (HST): HST
No. of Speeds	infinite	MT225E (gear): F12 x R12; MT225HE (HST): 3 ranges (HST)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry clutch	MT225E (gear): dry single clutch; MT225HE (HST): not applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	117.2 in	118 in
Overall Width	Not Published	54 in
Wheelbase	65.9 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	10.5 ft
Height to Top of ROPS	88.2 in	88 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,469 lb	MT225E (gear): 2,434 lb; MT225HE (HST): 2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	Not Published	25x8.5-14
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	Not Published	25x8.5-14
R4 Industrial - Rear	Not Published	43x16-20

Quick Attach Loader System	Not Published	LL3300: quick attach loader with skid steer compatible bucket
Loader Model	L330	LL3300
Loader Lift Height	94.3 in	LL3300: 92 in
Loader Lift Capacity (Full Height)	1214 lb	LL3300: 1,609 lb
Loader Breakout Force	1926 lb	LL3300: 2,701 lb

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25A vs LS Tractor MT225E: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the LS Tractor MT225E?

They are effectively tied: both machines are rated at 24.6 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 25A or the LS Tractor MT225E?

They are effectively tied: both machines are rated at 19.2 hp hp for pto hp.

Which is heavier, the Case IH Farmall 25A or the LS Tractor MT225E?

They are effectively tied: both machines are rated at 2,469 lb lb for weight.

Which has more loader lift capacity, the Case IH Farmall 25A or the LS Tractor MT225E?

The LS Tractor MT225E leads on loader lift at 1,609 lb lb, compared to 1,214 lb lb for the Case IH Farmall 25A.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the LS Tractor MT225E?

They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
