Case IH Farmall 25A vs LS Tractor XJ2025H

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Case IH Farmall 25A leads 5 categories to 2 (1 tied). Machine pages: Case IH Farmall 25A and LS Tractor XJ2025H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25A	LS Tractor XJ2025H
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.1 hp	▲ 18.5 hp
Weight (lb)	▲ 2,469 lb	1,609 lb
Loader Lift (lb)	▲ 1,214 lb	1,091 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,058 lb
Lift Height (in)	▲ 94.3 in	85.7 in
Breakout Force (lbf)	▲ 1,926 lbf	1,426 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 8.5 gpm
Travel Speed (mph)	n/a	11.5 mph

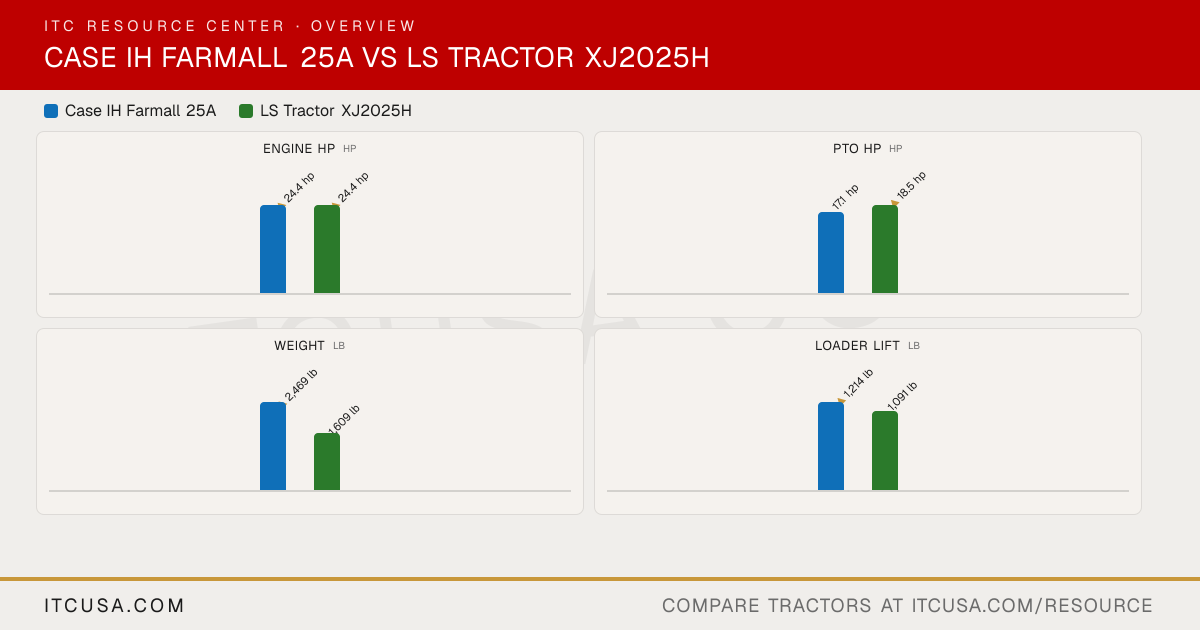

The headline numbers at a glance.

Case IH Farmall 25ALS Tractor XJ2025H

Engine HPhp

▲24.4 hp

PTO HPhp

17.1 hp

▲18.5 hp

Weightlb

▲2,469 lb

1,609 lb

Loader Liftlb

▲1,214 lb

1,091 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	LS TractorXJ2025H


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	Not Published	S3L2
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, indirect injection, water-cooled
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.1 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Indirect injection
Alternator	Not Published	50 A, 12 V

Pump Type	Not Published	Transmission drive
Implement Flow	7.9 gpm	5.9 gpm
Steering Flow	Not Published	2.6 gpm
Total Hydraulic Flow	Not Published	8.5 gpm
Overall Hydraulic Pump Flow	Not Published	8.5 gpm
Hydraulic System Type	Open center	Position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None
No. of Optional Remote Valves	1	2 quick couplers (optional)

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	Not Published	1.0 gal
Crankcase Capacity	Not Published	1.1 gal
Transmission / Hydraulic System Capacity	Not Published	5.3 gal
Front Axle Fluid Capacity	Not Published	0.8 gal

PTO Type	Independent	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional, 2,000 rpm	Standard (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,433 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,058 lb
Lift Control Type	Not Published	Manual position control

Transmission Type	Hydrostatic (optional)	Hydrostatic Drive
No. of Speeds	Infinite (hydrostatic)	2 ranges
Max Travel Speed (Forward)	Not Published	11.5 mph
Max Travel Speed (Reverse)	Not Published	7.2 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical pedal type

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed

Overall Width	Not Published	44.9 in
Wheelbase	65.9 in	59 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake applied)
Height to Top of ROPS	88.2 in	84.5 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	103 in (bumper to link)

Tractor Weight (Base)	2,469 lb	1,609 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Agricultural, Turf, Industrial
R1 Agricultural - Front	Not Published	23X10.50-12
R1 Agricultural - Rear	Not Published	255/75-15.3
R3 Turf - Front	Not Published	23x8.5-12
R3 Turf - Rear	Not Published	33x12-16.5
R4 Industrial - Front	Not Published	23x8.5-12
R4 Industrial - Rear	Not Published	33x12-16.5

Quick Attach Loader System	Not Published	LL2102: Bobcat-type quick attachment (ISO 24410), latch handle with latch pin
Loader Model	L330	LL2102
Loader Lift Height	94.3 in	LL2102: 85.7 in
Loader Lift Capacity (Full Height)	1,214 lb	LL2102: 1,091 lb (at pivot pin, max height)
Loader Breakout Force	1,926 lb	LL2102: 1,426 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25A vs LS Tractor XJ2025H: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the LS Tractor XJ2025H?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 25A or the LS Tractor XJ2025H?: The LS Tractor XJ2025H leads on pto hp at 18.5 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.
Which is heavier, the Case IH Farmall 25A or the LS Tractor XJ2025H?: The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,609 lb lb for the LS Tractor XJ2025H.
Which has more loader lift capacity, the Case IH Farmall 25A or the LS Tractor XJ2025H?: The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 1,091 lb lb for the LS Tractor XJ2025H.
Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the LS Tractor XJ2025H?: The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25A	LS Tractor XJ2025H
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.1 hp	▲ 18.5 hp
Weight (lb)	▲ 2,469 lb	1,609 lb
Loader Lift (lb)	▲ 1,214 lb	1,091 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,058 lb
Lift Height (in)	▲ 94.3 in	85.7 in
Breakout Force (lbf)	▲ 1,926 lbf	1,426 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 8.5 gpm
Travel Speed (mph)	n/a	11.5 mph

The headline numbers at a glance.

Case IH Farmall 25ALS Tractor XJ2025H

Engine HPhp

▲24.4 hp

PTO HPhp

17.1 hp

▲18.5 hp

Weightlb

▲2,469 lb

1,609 lb

Loader Liftlb

▲1,214 lb

1,091 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	LS TractorXJ2025H


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	Not Published	S3L2
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, indirect injection, water-cooled
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.1 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Indirect injection
Alternator	Not Published	50 A, 12 V

Pump Type	Not Published	Transmission drive
Implement Flow	7.9 gpm	5.9 gpm
Steering Flow	Not Published	2.6 gpm
Total Hydraulic Flow	Not Published	8.5 gpm
Overall Hydraulic Pump Flow	Not Published	8.5 gpm
Hydraulic System Type	Open center	Position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None
No. of Optional Remote Valves	1	2 quick couplers (optional)

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	Not Published	1.0 gal
Crankcase Capacity	Not Published	1.1 gal
Transmission / Hydraulic System Capacity	Not Published	5.3 gal
Front Axle Fluid Capacity	Not Published	0.8 gal

PTO Type	Independent	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional, 2,000 rpm	Standard (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,433 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,058 lb
Lift Control Type	Not Published	Manual position control

Transmission Type	Hydrostatic (optional)	Hydrostatic Drive
No. of Speeds	Infinite (hydrostatic)	2 ranges
Max Travel Speed (Forward)	Not Published	11.5 mph
Max Travel Speed (Reverse)	Not Published	7.2 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical pedal type

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed

Overall Width	Not Published	44.9 in
Wheelbase	65.9 in	59 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake applied)
Height to Top of ROPS	88.2 in	84.5 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	103 in (bumper to link)

Tractor Weight (Base)	2,469 lb	1,609 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Agricultural, Turf, Industrial
R1 Agricultural - Front	Not Published	23X10.50-12
R1 Agricultural - Rear	Not Published	255/75-15.3
R3 Turf - Front	Not Published	23x8.5-12
R3 Turf - Rear	Not Published	33x12-16.5
R4 Industrial - Front	Not Published	23x8.5-12
R4 Industrial - Rear	Not Published	33x12-16.5

Quick Attach Loader System	Not Published	LL2102: Bobcat-type quick attachment (ISO 24410), latch handle with latch pin
Loader Model	L330	LL2102
Loader Lift Height	94.3 in	LL2102: 85.7 in
Loader Lift Capacity (Full Height)	1,214 lb	LL2102: 1,091 lb (at pivot pin, max height)
Loader Breakout Force	1,926 lb	LL2102: 1,426 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25A vs LS Tractor XJ2025H: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the LS Tractor XJ2025H?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 25A or the LS Tractor XJ2025H?

The LS Tractor XJ2025H leads on pto hp at 18.5 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.

Which is heavier, the Case IH Farmall 25A or the LS Tractor XJ2025H?

The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,609 lb lb for the LS Tractor XJ2025H.

Which has more loader lift capacity, the Case IH Farmall 25A or the LS Tractor XJ2025H?

The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 1,091 lb lb for the LS Tractor XJ2025H.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the LS Tractor XJ2025H?

The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.
