Case IH Farmall 25A vs Mahindra Max 24

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Case IH Farmall 25A leads 5 categories to 2 (1 tied). Machine pages: Case IH Farmall 25A and Mahindra Max 24.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25A	Mahindra Max 24
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.1 hp	▲ 19.5 hp
Weight (lb)	▲ 2,469 lb	1,693 lb
Loader Lift (lb)	▲ 1,214 lb	900 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,400 lb
Lift Height (in)	▲ 94.3 in	75 in
Breakout Force (lbf)	1,926 lbf	▲ 2,000 lbf
Hydraulic Flow (gpm)	▲ 7.9 gpm	4.6 gpm
Travel Speed (mph)	n/a	9.6 mph

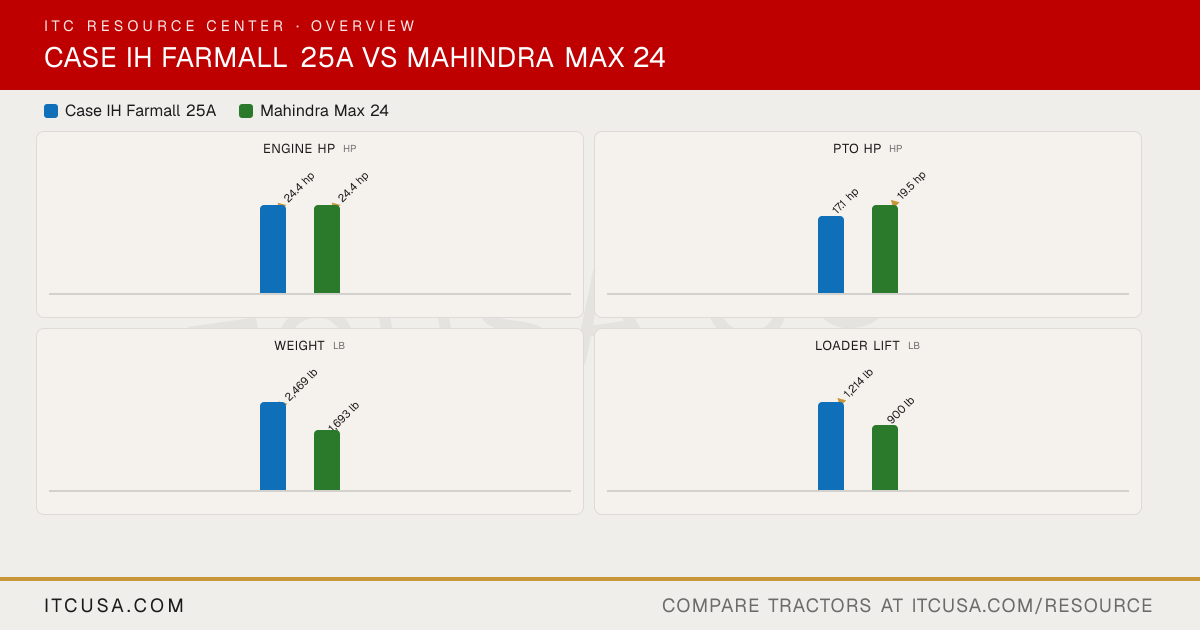

The headline numbers at a glance.

Case IH Farmall 25AMahindra Max 24

Engine HPhp

▲24.4 hp

PTO HPhp

17.1 hp

▲19.5 hp

Weightlb

▲2,469 lb

1,693 lb

Loader Liftlb

▲1,214 lb

900 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,400 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	MahindraMax 24


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	Not Published	S3L2
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	Four stroke, indirect injection water-cooled diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.1 hp	19.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Indirect Injection
Alternator	Not Published	50 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	7.9 gpm	4.6 gpm
Steering Flow	Not Published	2.7 gpm
Total Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	7.4 gal	6.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Live
PTO Rear	540 rpm	540 @ 2376 rpm
Mid-PTO Availability	Optional, 2,000 rpm	2000 @ 2556 rpm
Category, 3-Point Hitch	Category I	Category I, with check chains
Hitch Lift Capacity	Not Published	1,400 lb
Hitch Lift Capacity (at 24”)	1,433 lb	Not Published
Lift Control Type	Not Published	Position control

Transmission Type	Hydrostatic (optional)	HST - 2 ranges
No. of Speeds	Infinite (hydrostatic)	Infinite
Max Travel Speed (Forward)	Not Published	9.6 mph
Max Travel Speed (Reverse)	Not Published	4.9 mph
Clutch	Not Published	Single plate, dry
Differential Lock & Limited Slip Options	Mechanical differential lock	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	50.7 in
Wheelbase	65.9 in	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	7.2 ft
Height to Top of ROPS	88.2 in	81.5 in (with industrial tires)
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	104.1 in

Tractor Weight (Base)	2,469 lb	1,693 lb (operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	6x12
R1 Agricultural - Rear	Not Published	9.5x16
R3 Turf - Front	Not Published	20x8-10
R3 Turf - Rear	Not Published	29x12.5-15
R4 Industrial - Front	Not Published	20x8-10
R4 Industrial - Rear	Not Published	27x12.5-15

Quick Attach Loader System	Not Published	Not Published
Loader Model	L330	Max 24L
Loader Lift Height	94.3 in	75 in
Loader Lift Capacity (Full Height)	1,214 lb	900 lb (at pivot pin)
Loader Breakout Force	1,926 lb	2,000 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Not Published

Find a Case IH dealer near you Find a Mahindra dealer near you

Case IH Farmall 25A vs Mahindra Max 24: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the Mahindra Max 24?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 25A or the Mahindra Max 24?: The Mahindra Max 24 leads on pto hp at 19.5 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.
Which is heavier, the Case IH Farmall 25A or the Mahindra Max 24?: The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,693 lb lb for the Mahindra Max 24.
Which has more loader lift capacity, the Case IH Farmall 25A or the Mahindra Max 24?: The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 900 lb lb for the Mahindra Max 24.
Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the Mahindra Max 24?: The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,400 lb lb for the Mahindra Max 24.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25A	Mahindra Max 24
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.1 hp	▲ 19.5 hp
Weight (lb)	▲ 2,469 lb	1,693 lb
Loader Lift (lb)	▲ 1,214 lb	900 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,400 lb
Lift Height (in)	▲ 94.3 in	75 in
Breakout Force (lbf)	1,926 lbf	▲ 2,000 lbf
Hydraulic Flow (gpm)	▲ 7.9 gpm	4.6 gpm
Travel Speed (mph)	n/a	9.6 mph

The headline numbers at a glance.

Case IH Farmall 25AMahindra Max 24

Engine HPhp

▲24.4 hp

PTO HPhp

17.1 hp

▲19.5 hp

Weightlb

▲2,469 lb

1,693 lb

Loader Liftlb

▲1,214 lb

900 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,400 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	MahindraMax 24


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	Not Published	S3L2
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	Four stroke, indirect injection water-cooled diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.1 hp	19.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Indirect Injection
Alternator	Not Published	50 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	7.9 gpm	4.6 gpm
Steering Flow	Not Published	2.7 gpm
Total Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	7.4 gal	6.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Live
PTO Rear	540 rpm	540 @ 2376 rpm
Mid-PTO Availability	Optional, 2,000 rpm	2000 @ 2556 rpm
Category, 3-Point Hitch	Category I	Category I, with check chains
Hitch Lift Capacity	Not Published	1,400 lb
Hitch Lift Capacity (at 24”)	1,433 lb	Not Published
Lift Control Type	Not Published	Position control

Transmission Type	Hydrostatic (optional)	HST - 2 ranges
No. of Speeds	Infinite (hydrostatic)	Infinite
Max Travel Speed (Forward)	Not Published	9.6 mph
Max Travel Speed (Reverse)	Not Published	4.9 mph
Clutch	Not Published	Single plate, dry
Differential Lock & Limited Slip Options	Mechanical differential lock	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	50.7 in
Wheelbase	65.9 in	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	7.2 ft
Height to Top of ROPS	88.2 in	81.5 in (with industrial tires)
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	104.1 in

Tractor Weight (Base)	2,469 lb	1,693 lb (operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	6x12
R1 Agricultural - Rear	Not Published	9.5x16
R3 Turf - Front	Not Published	20x8-10
R3 Turf - Rear	Not Published	29x12.5-15
R4 Industrial - Front	Not Published	20x8-10
R4 Industrial - Rear	Not Published	27x12.5-15

Quick Attach Loader System	Not Published	Not Published
Loader Model	L330	Max 24L
Loader Lift Height	94.3 in	75 in
Loader Lift Capacity (Full Height)	1,214 lb	900 lb (at pivot pin)
Loader Breakout Force	1,926 lb	2,000 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Not Published

Find a Case IH dealer near you Find a Mahindra dealer near you

Case IH Farmall 25A vs Mahindra Max 24: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the Mahindra Max 24?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 25A or the Mahindra Max 24?

The Mahindra Max 24 leads on pto hp at 19.5 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.

Which is heavier, the Case IH Farmall 25A or the Mahindra Max 24?

The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,693 lb lb for the Mahindra Max 24.

Which has more loader lift capacity, the Case IH Farmall 25A or the Mahindra Max 24?

The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 900 lb lb for the Mahindra Max 24.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the Mahindra Max 24?

The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,400 lb lb for the Mahindra Max 24.
