Case IH Farmall 25A Mechanical vs Case IH Farmall Compact 25A

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, this matchup is a dead heat: 0 categories to the Case IH Farmall 25A Mechanical, 0 to the Case IH Farmall Compact 25A, 8 tied. Machine pages: Case IH Farmall 25A Mechanical and Case IH Farmall Compact 25A.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25A Mechanical	Case IH Farmall Compact 25A
Engine HP (hp)	24.6 hp	24.6 hp
PTO HP (hp)	19.2 hp	19.2 hp
Weight (lb)	2,469 lb	2,469 lb
Loader Lift (lb)	1,214 lb	1,214 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	94.3 in	94.3 in
Breakout Force (lbf)	1,926 lbf	1,926 lbf
Hydraulic Flow (gpm)	7.9 gpm	7.9 gpm

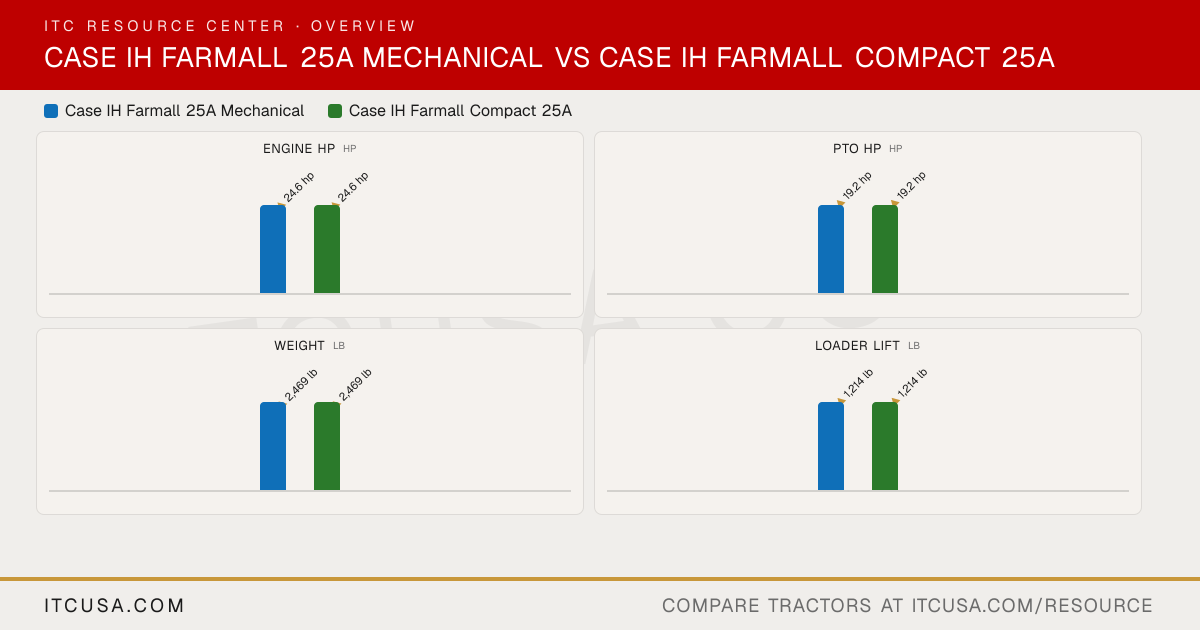

The headline numbers at a glance.

Case IH Farmall 25A MechanicalCase IH Farmall Compact 25A

Engine HPhp

▲24.6 hp

PTO HPhp

▲19.2 hp

Weightlb

▲2,469 lb

Loader Liftlb

▲1,214 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A Mechanical	Case IHFarmall Compact 25A


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.6 hp	24.6 hp
PTO Power	19.2 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Not Published	Not Published
Implement Flow	7.9 gpm	7.9 gpm
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	7.4 gal	7.4 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Not Published	Not Published

Transmission Type	12x12 mechanical shuttle with synchro shift (dry clutch) (standard)	hydrostatic (optional)
No. of Speeds	12 forward, 12 reverse	infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry clutch	Dry clutch
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	117.2 in	117.2 in
Overall Width	Not Published	Not Published
Wheelbase	65.9 in	65.9 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	88.2 in	88.2 in
Height to Top of ROPS (folded)	68.2 in	68.2 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,469 lb	2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	Not Published	Not Published
Loader Model	L330	L330
Loader Lift Height	94.3 in	94.3 in
Loader Lift Capacity (Full Height)	1214 lb	1214 lb
Loader Breakout Force	1926 lb	1926 lb

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection

Find a Case IH dealer near you

Case IH Farmall 25A Mechanical vs Case IH Farmall Compact 25A: Quick Answers

Which has more horsepower, the Case IH Farmall 25A Mechanical or the Case IH Farmall Compact 25A?: They are effectively tied: both machines are rated at 24.6 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 25A Mechanical or the Case IH Farmall Compact 25A?: They are effectively tied: both machines are rated at 19.2 hp hp for pto hp.
Which is heavier, the Case IH Farmall 25A Mechanical or the Case IH Farmall Compact 25A?: They are effectively tied: both machines are rated at 2,469 lb lb for weight.
Which has more loader lift capacity, the Case IH Farmall 25A Mechanical or the Case IH Farmall Compact 25A?: They are effectively tied: both machines are rated at 1,214 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Case IH Farmall 25A Mechanical or the Case IH Farmall Compact 25A?: They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Case IH

Farmall 25A Mechanical

Farmall 25A Mechanical

Farmall 25A Mechanical

Farmall 25A Mechanical

Farmall 25A Mechanical

Category Verdict

Spec	Case IH Farmall 25A Mechanical	Case IH Farmall Compact 25A
Engine HP (hp)	24.6 hp	24.6 hp
PTO HP (hp)	19.2 hp	19.2 hp
Weight (lb)	2,469 lb	2,469 lb
Loader Lift (lb)	1,214 lb	1,214 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	94.3 in	94.3 in
Breakout Force (lbf)	1,926 lbf	1,926 lbf
Hydraulic Flow (gpm)	7.9 gpm	7.9 gpm

The headline numbers at a glance.

Case IH Farmall 25A MechanicalCase IH Farmall Compact 25A

Engine HPhp

▲24.6 hp

PTO HPhp

▲19.2 hp

Weightlb

▲2,469 lb

Loader Liftlb

▲1,214 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A Mechanical	Case IHFarmall Compact 25A


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.6 hp	24.6 hp
PTO Power	19.2 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Not Published	Not Published
Implement Flow	7.9 gpm	7.9 gpm
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	7.4 gal	7.4 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Not Published	Not Published

Transmission Type	12x12 mechanical shuttle with synchro shift (dry clutch) (standard)	hydrostatic (optional)
No. of Speeds	12 forward, 12 reverse	infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry clutch	Dry clutch
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	117.2 in	117.2 in
Overall Width	Not Published	Not Published
Wheelbase	65.9 in	65.9 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	88.2 in	88.2 in
Height to Top of ROPS (folded)	68.2 in	68.2 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,469 lb	2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	Not Published	Not Published
Loader Model	L330	L330
Loader Lift Height	94.3 in	94.3 in
Loader Lift Capacity (Full Height)	1214 lb	1214 lb
Loader Breakout Force	1926 lb	1926 lb

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection

Find a Case IH dealer near you

Case IH Farmall 25A Mechanical vs Case IH Farmall Compact 25A: Quick Answers

Which has more horsepower, the Case IH Farmall 25A Mechanical or the Case IH Farmall Compact 25A?

They are effectively tied: both machines are rated at 24.6 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 25A Mechanical or the Case IH Farmall Compact 25A?

They are effectively tied: both machines are rated at 19.2 hp hp for pto hp.

Which is heavier, the Case IH Farmall 25A Mechanical or the Case IH Farmall Compact 25A?

They are effectively tied: both machines are rated at 2,469 lb lb for weight.

Which has more loader lift capacity, the Case IH Farmall 25A Mechanical or the Case IH Farmall Compact 25A?

They are effectively tied: both machines are rated at 1,214 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A Mechanical or the Case IH Farmall Compact 25A?

They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
