Case IH Farmall 25SC vs Case IH Farmall Compact 25A

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Case IH Farmall Compact 25A leads 7 categories to 1. Machine pages: Case IH Farmall 25SC and Case IH Farmall Compact 25A.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25SC	Case IH Farmall Compact 25A
Engine HP (hp)	▲ 24.7 hp	24.6 hp
PTO HP (hp)	17.2 hp	▲ 19.2 hp
Weight (lb)	1,444 lb	▲ 2,469 lb
Loader Lift (lb)	693 lb	▲ 1,214 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,433 lb
Lift Height (in)	72 in	▲ 94.3 in
Breakout Force (lbf)	1,426 lbf	▲ 1,926 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 7.9 gpm
Travel Speed (mph)	9.1 mph	n/a

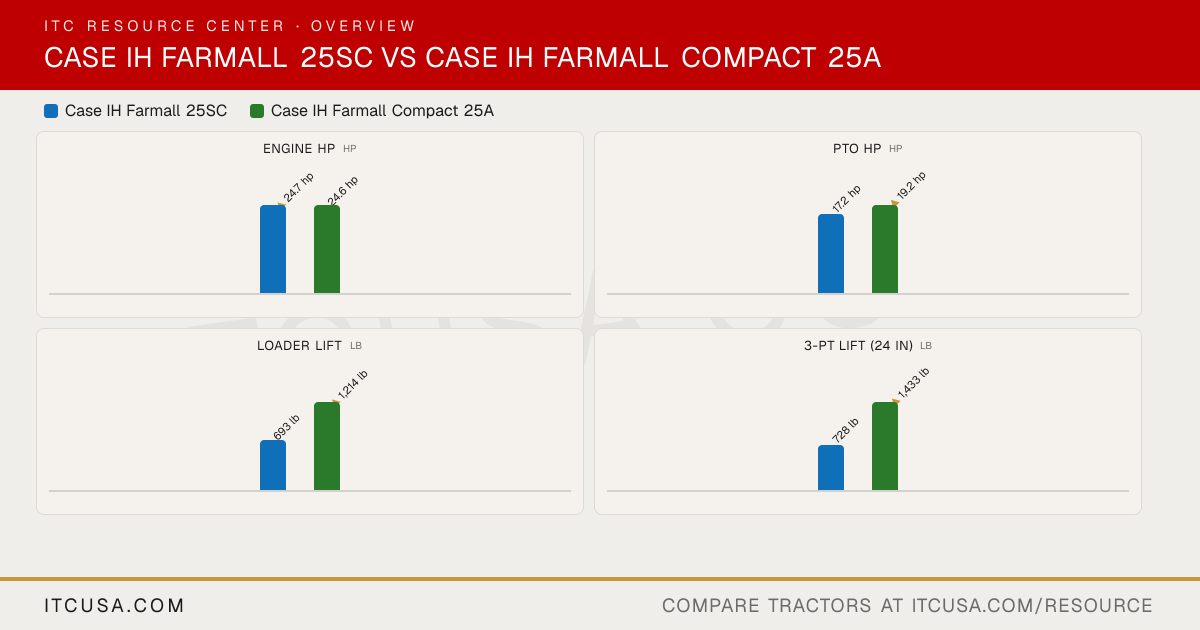

The headline numbers at a glance.

Case IH Farmall 25SCCase IH Farmall Compact 25A

Engine HPhp

▲24.7 hp

24.6 hp

PTO HPhp

17.2 hp

▲19.2 hp

Weightlb

1,444 lb

▲2,469 lb

Loader Liftlb

693 lb

▲1,214 lb

3-Pt Lift (24 in)lb

728 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	Case IHFarmall Compact 25A


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, indirect-injection, water-cooled diesel, Tier 4 B/Final	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	77.3 in³	80.4 in³
Rated Engine Speed	3000 rpm	2500 rpm
Engine Power (Gross)	24.7 hp	24.6 hp
PTO Power	17.2 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect injection	Not Published
Alternator	50 A	Not Published

Pump Type	Not Published	Not Published
Implement Flow	4.6 gpm	7.9 gpm
Steering Flow	2.1 gpm	Not Published
Total Hydraulic Flow	6.7 gpm	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	6.6 gal	7.4 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,500 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	992 lb	Not Published
Hitch Lift Capacity (at 24”)	728 lb	1,433 lb
Lift Control Type	Not Published	Not Published

Transmission Type	2-range hydrostatic (wet clutch)	hydrostatic (optional)
No. of Speeds	Infinite, 2-range hydrostatic	infinite
Max Travel Speed (Forward)	9.1 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet clutch	Dry clutch
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet, multi-disc	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	97 in	117.2 in
Overall Width	46.7 in	Not Published
Wheelbase	56 in	65.9 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	87.4 in	88.2 in
Height to Top of ROPS (folded)	62.4 in	68.2 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,444 lb	2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12-12	Not Published
R4 Industrial - Front	18x8.5-10	Not Published
R4 Industrial - Rear	26x12-12	Not Published

Quick Attach Loader System	L320S	Not Published
Loader Model	L320S	L330
Loader Lift Height	72 in	94.3 in
Loader Lift Capacity (Full Height)	693 lb	1214 lb
Loader Breakout Force	1426 lb	1926 lb

Warranty Length & Coverage	Not Published	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection

Find a Case IH dealer near you

Case IH Farmall 25SC vs Case IH Farmall Compact 25A: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the Case IH Farmall Compact 25A?: The Case IH Farmall 25SC leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall Compact 25A.
Which has more PTO horsepower, the Case IH Farmall 25SC or the Case IH Farmall Compact 25A?: The Case IH Farmall Compact 25A leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.
Which is heavier, the Case IH Farmall 25SC or the Case IH Farmall Compact 25A?: The Case IH Farmall Compact 25A leads on weight at 2,469 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.
Which has more loader lift capacity, the Case IH Farmall 25SC or the Case IH Farmall Compact 25A?: The Case IH Farmall Compact 25A leads on loader lift at 1,214 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.
Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the Case IH Farmall Compact 25A?: The Case IH Farmall Compact 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25SC	Case IH Farmall Compact 25A
Engine HP (hp)	▲ 24.7 hp	24.6 hp
PTO HP (hp)	17.2 hp	▲ 19.2 hp
Weight (lb)	1,444 lb	▲ 2,469 lb
Loader Lift (lb)	693 lb	▲ 1,214 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,433 lb
Lift Height (in)	72 in	▲ 94.3 in
Breakout Force (lbf)	1,426 lbf	▲ 1,926 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 7.9 gpm
Travel Speed (mph)	9.1 mph	n/a

The headline numbers at a glance.

Case IH Farmall 25SCCase IH Farmall Compact 25A

Engine HPhp

▲24.7 hp

24.6 hp

PTO HPhp

17.2 hp

▲19.2 hp

Weightlb

1,444 lb

▲2,469 lb

Loader Liftlb

693 lb

▲1,214 lb

3-Pt Lift (24 in)lb

728 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	Case IHFarmall Compact 25A


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, indirect-injection, water-cooled diesel, Tier 4 B/Final	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	77.3 in³	80.4 in³
Rated Engine Speed	3000 rpm	2500 rpm
Engine Power (Gross)	24.7 hp	24.6 hp
PTO Power	17.2 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect injection	Not Published
Alternator	50 A	Not Published

Pump Type	Not Published	Not Published
Implement Flow	4.6 gpm	7.9 gpm
Steering Flow	2.1 gpm	Not Published
Total Hydraulic Flow	6.7 gpm	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	6.6 gal	7.4 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,500 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	992 lb	Not Published
Hitch Lift Capacity (at 24”)	728 lb	1,433 lb
Lift Control Type	Not Published	Not Published

Transmission Type	2-range hydrostatic (wet clutch)	hydrostatic (optional)
No. of Speeds	Infinite, 2-range hydrostatic	infinite
Max Travel Speed (Forward)	9.1 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet clutch	Dry clutch
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet, multi-disc	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	97 in	117.2 in
Overall Width	46.7 in	Not Published
Wheelbase	56 in	65.9 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	87.4 in	88.2 in
Height to Top of ROPS (folded)	62.4 in	68.2 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,444 lb	2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12-12	Not Published
R4 Industrial - Front	18x8.5-10	Not Published
R4 Industrial - Rear	26x12-12	Not Published

Quick Attach Loader System	L320S	Not Published
Loader Model	L320S	L330
Loader Lift Height	72 in	94.3 in
Loader Lift Capacity (Full Height)	693 lb	1214 lb
Loader Breakout Force	1426 lb	1926 lb

Warranty Length & Coverage	Not Published	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection

Find a Case IH dealer near you

Case IH Farmall 25SC vs Case IH Farmall Compact 25A: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the Case IH Farmall Compact 25A?

The Case IH Farmall 25SC leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall Compact 25A.

Which has more PTO horsepower, the Case IH Farmall 25SC or the Case IH Farmall Compact 25A?

The Case IH Farmall Compact 25A leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.

Which is heavier, the Case IH Farmall 25SC or the Case IH Farmall Compact 25A?

The Case IH Farmall Compact 25A leads on weight at 2,469 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.

Which has more loader lift capacity, the Case IH Farmall 25SC or the Case IH Farmall Compact 25A?

The Case IH Farmall Compact 25A leads on loader lift at 1,214 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.

Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the Case IH Farmall Compact 25A?

The Case IH Farmall Compact 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.
