Case IH Farmall 25SC vs LS Tractor MT225S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor MT225S leads 7 categories to 0 (1 tied). Machine pages: Case IH Farmall 25SC and LS Tractor MT225S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25SC	LS Tractor MT225S
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	17.2 hp	▲ 19.3 hp
Weight (lb)	1,444 lb	▲ 1,764 lb
Loader Lift (lb)	693 lb	▲ 1,127 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,323 lb
Lift Height (in)	72 in	▲ 84.4 in
Breakout Force (lbf)	1,426 lbf	▲ 2,290 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 9.3 gpm
Travel Speed (mph)	n/a	12.9 mph

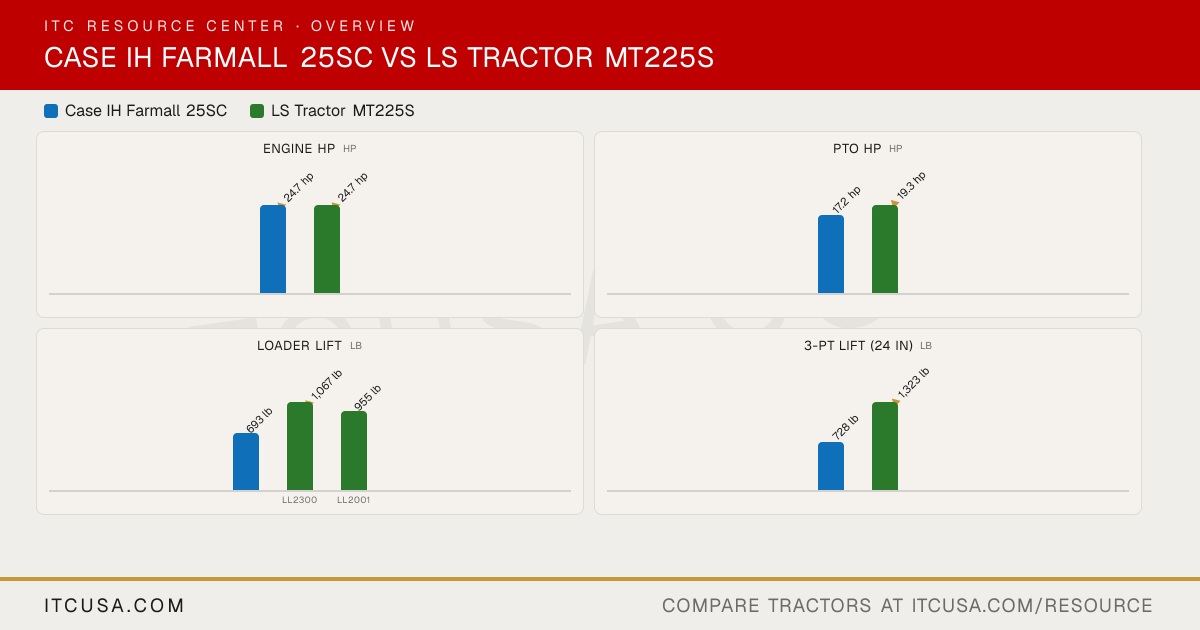

The headline numbers at a glance.

Case IH Farmall 25SCLS Tractor MT225S

Engine HPhp

▲24.7 hp

PTO HPhp

17.2 hp

▲19.3 hp

Weightlb

1,444 lb

▲1,764 lb

Loader Liftlb

693 lb

1,067 lb

▲1,127 lb

LL2300LL2001

3-Pt Lift (24 in)lb

728 lb

▲1,323 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	LS TractorMT225S


Engine Manufacturer	Yanmar	Yanmar
Engine Model	Not Published	3TNV80F-ZXKLST
Engine Type	3-cylinder, Tier 4 B/Final, indirect-injection, water-cooled	3-cylinder, indirect injection (swirl chamber)
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3000 rpm	2800 rpm
Engine Power (Gross)	24.7 hp	24.7 hp
PTO Power	17.2 hp	19.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Indirect injection	In-line injection pump
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Engine driven
Implement Flow	4.6 gpm	5.6 gpm
Steering Flow	Not Published	3.7 gpm
Total Hydraulic Flow	Not Published	9.3 gpm
Overall Hydraulic Pump Flow	Not Published	9.3 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	None
No. of Optional Remote Valves	1	1 pair (optional)

Fuel Tank Capacity	6.6 gal	6.79 gal
Coolant Capacity	Not Published	0.9 gal
Crankcase Capacity	Not Published	0.8 gal
Transmission / Hydraulic System Capacity	Not Published	4.5 gal
Front Axle Fluid Capacity	Not Published	0.8 gal

PTO Type	Independent, electro-hydraulic engagement	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Standard, 2,500 rpm	Optional (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	1,896 lb
Hitch Lift Capacity (at 24”)	728 lb	1,323 lb
Lift Control Type	Not Published	Position control

Transmission Type	2-range hydrostatic (wet clutch)	Hydrostatic Drive
No. of Speeds	Infinite, 2-range hydrostatic	3 ranges
Max Travel Speed (Forward)	Not Published	12.86 mph
Max Travel Speed (Reverse)	Not Published	8.45 mph
Clutch	Wet clutch	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Four wheel drive (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	48.7 in
Wheelbase	56 in	63.4 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake)
Height to Top of ROPS	87.4 in	86.4 in
Height to Top of ROPS (folded)	62.4 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	97 in	111.9 in (frame to link)

Tractor Weight (Base)	1,444 lb	1,764 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	IND (R4 Industrial), Versa Turf
R1 Agricultural - Front	Not Published	7-12
R1 Agricultural - Rear	Not Published	11.2-16
R3 Turf - Front	18x8.5-10	22x8.50-12
R3 Turf - Rear	26x12-12	31x15.50-15
R4 Industrial - Front	18x8.5-10	23x8.50-12
R4 Industrial - Rear	26x12-12	12-16.5

Quick Attach Loader System	L320S	LL2300: Bobcat type quick attach
Loader Model	L320S	LL2300; LL2001
Loader Lift Height	72 in	LL2300: 84.4 in; LL2001: 84.4 in
Loader Lift Capacity (Full Height)	693 lb	LL2300: 1,067 lb; LL2001: 1,127 lb (at pivot pin)
Loader Breakout Force	1,426 lb	LL2300: 2,290 lb; LL2001: 1,744 lb (at pivot pin)

Warranty Length & Coverage	Not Published	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25SC vs LS Tractor MT225S: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the LS Tractor MT225S?: They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 25SC or the LS Tractor MT225S?: The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.
Which is heavier, the Case IH Farmall 25SC or the LS Tractor MT225S?: The LS Tractor MT225S leads on weight at 1,764 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.
Which has more loader lift capacity, the Case IH Farmall 25SC or the LS Tractor MT225S?: The LS Tractor MT225S leads on loader lift at 1,127 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.
Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the LS Tractor MT225S?: The LS Tractor MT225S leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25SC	LS Tractor MT225S
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	17.2 hp	▲ 19.3 hp
Weight (lb)	1,444 lb	▲ 1,764 lb
Loader Lift (lb)	693 lb	▲ 1,127 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,323 lb
Lift Height (in)	72 in	▲ 84.4 in
Breakout Force (lbf)	1,426 lbf	▲ 2,290 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 9.3 gpm
Travel Speed (mph)	n/a	12.9 mph

The headline numbers at a glance.

Case IH Farmall 25SCLS Tractor MT225S

Engine HPhp

▲24.7 hp

PTO HPhp

17.2 hp

▲19.3 hp

Weightlb

1,444 lb

▲1,764 lb

Loader Liftlb

693 lb

1,067 lb

▲1,127 lb

LL2300LL2001

3-Pt Lift (24 in)lb

728 lb

▲1,323 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	LS TractorMT225S


Engine Manufacturer	Yanmar	Yanmar
Engine Model	Not Published	3TNV80F-ZXKLST
Engine Type	3-cylinder, Tier 4 B/Final, indirect-injection, water-cooled	3-cylinder, indirect injection (swirl chamber)
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3000 rpm	2800 rpm
Engine Power (Gross)	24.7 hp	24.7 hp
PTO Power	17.2 hp	19.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Indirect injection	In-line injection pump
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Engine driven
Implement Flow	4.6 gpm	5.6 gpm
Steering Flow	Not Published	3.7 gpm
Total Hydraulic Flow	Not Published	9.3 gpm
Overall Hydraulic Pump Flow	Not Published	9.3 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	None
No. of Optional Remote Valves	1	1 pair (optional)

Fuel Tank Capacity	6.6 gal	6.79 gal
Coolant Capacity	Not Published	0.9 gal
Crankcase Capacity	Not Published	0.8 gal
Transmission / Hydraulic System Capacity	Not Published	4.5 gal
Front Axle Fluid Capacity	Not Published	0.8 gal

PTO Type	Independent, electro-hydraulic engagement	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Standard, 2,500 rpm	Optional (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	1,896 lb
Hitch Lift Capacity (at 24”)	728 lb	1,323 lb
Lift Control Type	Not Published	Position control

Transmission Type	2-range hydrostatic (wet clutch)	Hydrostatic Drive
No. of Speeds	Infinite, 2-range hydrostatic	3 ranges
Max Travel Speed (Forward)	Not Published	12.86 mph
Max Travel Speed (Reverse)	Not Published	8.45 mph
Clutch	Wet clutch	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Four wheel drive (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	48.7 in
Wheelbase	56 in	63.4 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake)
Height to Top of ROPS	87.4 in	86.4 in
Height to Top of ROPS (folded)	62.4 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	97 in	111.9 in (frame to link)

Tractor Weight (Base)	1,444 lb	1,764 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	IND (R4 Industrial), Versa Turf
R1 Agricultural - Front	Not Published	7-12
R1 Agricultural - Rear	Not Published	11.2-16
R3 Turf - Front	18x8.5-10	22x8.50-12
R3 Turf - Rear	26x12-12	31x15.50-15
R4 Industrial - Front	18x8.5-10	23x8.50-12
R4 Industrial - Rear	26x12-12	12-16.5

Quick Attach Loader System	L320S	LL2300: Bobcat type quick attach
Loader Model	L320S	LL2300; LL2001
Loader Lift Height	72 in	LL2300: 84.4 in; LL2001: 84.4 in
Loader Lift Capacity (Full Height)	693 lb	LL2300: 1,067 lb; LL2001: 1,127 lb (at pivot pin)
Loader Breakout Force	1,426 lb	LL2300: 2,290 lb; LL2001: 1,744 lb (at pivot pin)

Warranty Length & Coverage	Not Published	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25SC vs LS Tractor MT225S: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the LS Tractor MT225S?

They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 25SC or the LS Tractor MT225S?

The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.

Which is heavier, the Case IH Farmall 25SC or the LS Tractor MT225S?

The LS Tractor MT225S leads on weight at 1,764 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.

Which has more loader lift capacity, the Case IH Farmall 25SC or the LS Tractor MT225S?

The LS Tractor MT225S leads on loader lift at 1,127 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.

Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the LS Tractor MT225S?

The LS Tractor MT225S leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.
