Case IH Farmall 25SC vs LS Tractor MT226HE

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor MT226HE leads 6 categories to 2. Machine pages: Case IH Farmall 25SC and LS Tractor MT226HE.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25SC	LS Tractor MT226HE
Engine HP (hp)	▲ 24.7 hp	24.6 hp
PTO HP (hp)	▲ 17.2 hp	17.1 hp
Weight (lb)	1,444 lb	▲ 3,007 lb
Loader Lift (lb)	693 lb	▲ 1,599 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,433 lb
Lift Height (in)	72 in	▲ 94.3 in
Breakout Force (lbf)	1,426 lbf	▲ 2,962 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 11.7 gpm

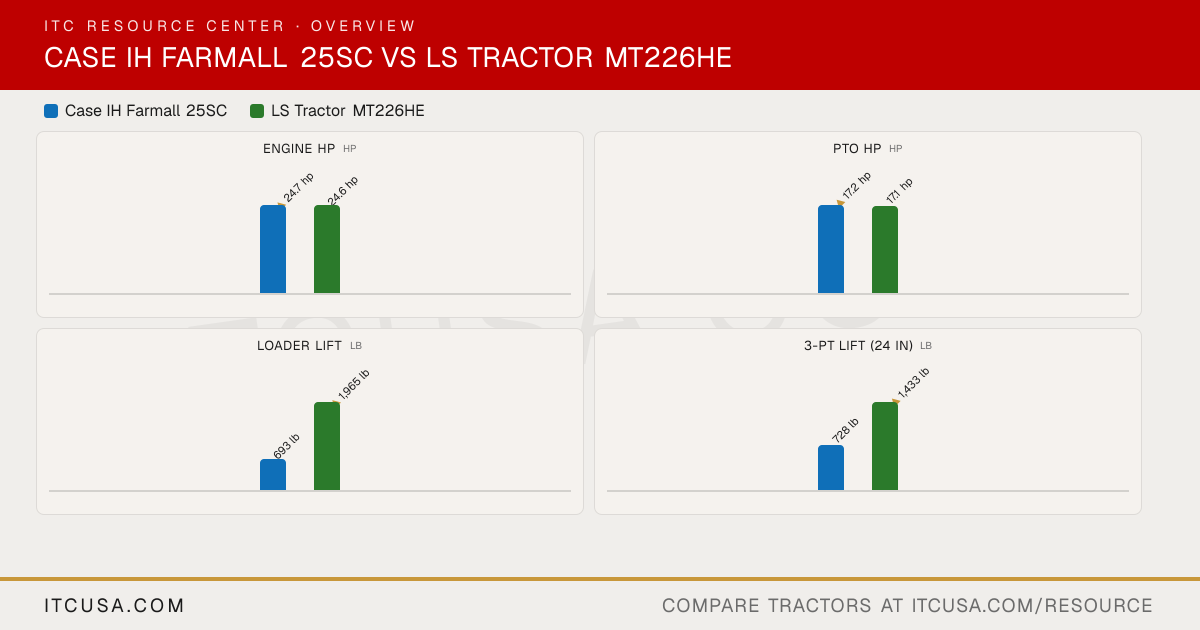

The headline numbers at a glance.

Case IH Farmall 25SCLS Tractor MT226HE

Engine HPhp

▲24.7 hp

24.6 hp

PTO HPhp

▲17.2 hp

17.1 hp

Weightlb

1,444 lb

▲3,007 lb

Loader Liftlb

693 lb

▲1,599 lb

3-Pt Lift (24 in)lb

728 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	LS TractorMT226HE


Engine Manufacturer	Yanmar	MHI
Engine Model	Not Published	S3L2-W463GTAC
Engine Type	3-cylinder, Tier 4 B/Final, indirect-injection, water-cooled	3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI
No. of Cylinders	3	3
Displacement	77.3 in³	80.4 in³
Rated Engine Speed	3000 rpm	2500 rpm
Engine Power (Gross)	24.7 hp	24.6 hp
PTO Power	17.2 hp	17.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Indirect injection	IDI (indirect injection)
Alternator	Not Published	50 A, 12 V

Pump Type	Not Published	Gear pump
Implement Flow	4.6 gpm	7.1 gpm
Steering Flow	Not Published	4.6 gpm
Total Hydraulic Flow	Not Published	11.7 gpm
Overall Hydraulic Pump Flow	Not Published	11.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	None
No. of Optional Remote Valves	1	1 pair (optional)

Fuel Tank Capacity	6.6 gal	10.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Standard, 2,500 rpm	Available (option)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	1,808 lb
Hitch Lift Capacity (at 24”)	728 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	2-range hydrostatic (wet clutch)	HST
No. of Speeds	Infinite, 2-range hydrostatic	3 ranges
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet clutch	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	66 in
Wheelbase	56 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	10.8 ft (3.3 m)
Height to Top of ROPS	87.4 in	95 in
Height to Top of ROPS (folded)	62.4 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	97 in	119 in (frame to link)

Tractor Weight (Base)	1,444 lb	3,007 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	Ag, Industrial, VT and Turf; VT same size as Industrial
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	18x8.5-10	25x8.50-14
R3 Turf - Rear	26x12-12	41x14.00-20
R4 Industrial - Front	18x8.5-10	27x8.50-15
R4 Industrial - Rear	26x12-12	43x16.00-20

Quick Attach Loader System	L320S	LL3001, LL3002: ISO 24410 Quick Attaching Coupler
Loader Model	L320S	LL3002
Loader Lift Height	72 in	LL3002: 94.3 in
Loader Lift Capacity (Full Height)	693 lb	LL3002: 1,599 lb (at pivot pin, maximum height)
Loader Breakout Force	1,426 lb	LL3002: 2,962 lb (at pivot pin)

Warranty Length & Coverage	Not Published	Two-year bumper to bumper; six-year limited powertrain

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25SC vs LS Tractor MT226HE: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the LS Tractor MT226HE?: The Case IH Farmall 25SC leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the LS Tractor MT226HE.
Which has more PTO horsepower, the Case IH Farmall 25SC or the LS Tractor MT226HE?: The Case IH Farmall 25SC leads on pto hp at 17.2 hp hp, compared to 17.1 hp hp for the LS Tractor MT226HE.
Which is heavier, the Case IH Farmall 25SC or the LS Tractor MT226HE?: The LS Tractor MT226HE leads on weight at 3,007 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.
Which has more loader lift capacity, the Case IH Farmall 25SC or the LS Tractor MT226HE?: The LS Tractor MT226HE leads on loader lift at 1,599 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.
Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the LS Tractor MT226HE?: The LS Tractor MT226HE leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25SC	LS Tractor MT226HE
Engine HP (hp)	▲ 24.7 hp	24.6 hp
PTO HP (hp)	▲ 17.2 hp	17.1 hp
Weight (lb)	1,444 lb	▲ 3,007 lb
Loader Lift (lb)	693 lb	▲ 1,599 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,433 lb
Lift Height (in)	72 in	▲ 94.3 in
Breakout Force (lbf)	1,426 lbf	▲ 2,962 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 11.7 gpm

The headline numbers at a glance.

Case IH Farmall 25SCLS Tractor MT226HE

Engine HPhp

▲24.7 hp

24.6 hp

PTO HPhp

▲17.2 hp

17.1 hp

Weightlb

1,444 lb

▲3,007 lb

Loader Liftlb

693 lb

▲1,599 lb

3-Pt Lift (24 in)lb

728 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	LS TractorMT226HE


Engine Manufacturer	Yanmar	MHI
Engine Model	Not Published	S3L2-W463GTAC
Engine Type	3-cylinder, Tier 4 B/Final, indirect-injection, water-cooled	3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI
No. of Cylinders	3	3
Displacement	77.3 in³	80.4 in³
Rated Engine Speed	3000 rpm	2500 rpm
Engine Power (Gross)	24.7 hp	24.6 hp
PTO Power	17.2 hp	17.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Indirect injection	IDI (indirect injection)
Alternator	Not Published	50 A, 12 V

Pump Type	Not Published	Gear pump
Implement Flow	4.6 gpm	7.1 gpm
Steering Flow	Not Published	4.6 gpm
Total Hydraulic Flow	Not Published	11.7 gpm
Overall Hydraulic Pump Flow	Not Published	11.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	None
No. of Optional Remote Valves	1	1 pair (optional)

Fuel Tank Capacity	6.6 gal	10.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Standard, 2,500 rpm	Available (option)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	1,808 lb
Hitch Lift Capacity (at 24”)	728 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	2-range hydrostatic (wet clutch)	HST
No. of Speeds	Infinite, 2-range hydrostatic	3 ranges
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet clutch	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	66 in
Wheelbase	56 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	10.8 ft (3.3 m)
Height to Top of ROPS	87.4 in	95 in
Height to Top of ROPS (folded)	62.4 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	97 in	119 in (frame to link)

Tractor Weight (Base)	1,444 lb	3,007 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	Ag, Industrial, VT and Turf; VT same size as Industrial
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	18x8.5-10	25x8.50-14
R3 Turf - Rear	26x12-12	41x14.00-20
R4 Industrial - Front	18x8.5-10	27x8.50-15
R4 Industrial - Rear	26x12-12	43x16.00-20

Quick Attach Loader System	L320S	LL3001, LL3002: ISO 24410 Quick Attaching Coupler
Loader Model	L320S	LL3002
Loader Lift Height	72 in	LL3002: 94.3 in
Loader Lift Capacity (Full Height)	693 lb	LL3002: 1,599 lb (at pivot pin, maximum height)
Loader Breakout Force	1,426 lb	LL3002: 2,962 lb (at pivot pin)

Warranty Length & Coverage	Not Published	Two-year bumper to bumper; six-year limited powertrain

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25SC vs LS Tractor MT226HE: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the LS Tractor MT226HE?

The Case IH Farmall 25SC leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the LS Tractor MT226HE.

Which has more PTO horsepower, the Case IH Farmall 25SC or the LS Tractor MT226HE?

The Case IH Farmall 25SC leads on pto hp at 17.2 hp hp, compared to 17.1 hp hp for the LS Tractor MT226HE.

Which is heavier, the Case IH Farmall 25SC or the LS Tractor MT226HE?

The LS Tractor MT226HE leads on weight at 3,007 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.

Which has more loader lift capacity, the Case IH Farmall 25SC or the LS Tractor MT226HE?

The LS Tractor MT226HE leads on loader lift at 1,599 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.

Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the LS Tractor MT226HE?

The LS Tractor MT226HE leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.
