Case IH Farmall 25SC vs LS Tractor MT225E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor MT225E leads 7 categories to 1. Machine pages: Case IH Farmall 25SC and LS Tractor MT225E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25SC	LS Tractor MT225E
Engine HP (hp)	▲ 24.7 hp	24.6 hp
PTO HP (hp)	17.2 hp	▲ 19.2 hp
Weight (lb)	1,444 lb	▲ 2,469 lb
Loader Lift (lb)	693 lb	▲ 1,609 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,433 lb
Lift Height (in)	72 in	▲ 92 in
Breakout Force (lbf)	1,426 lbf	▲ 2,701 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 12.5 gpm
Travel Speed (mph)	9.1 mph	n/a

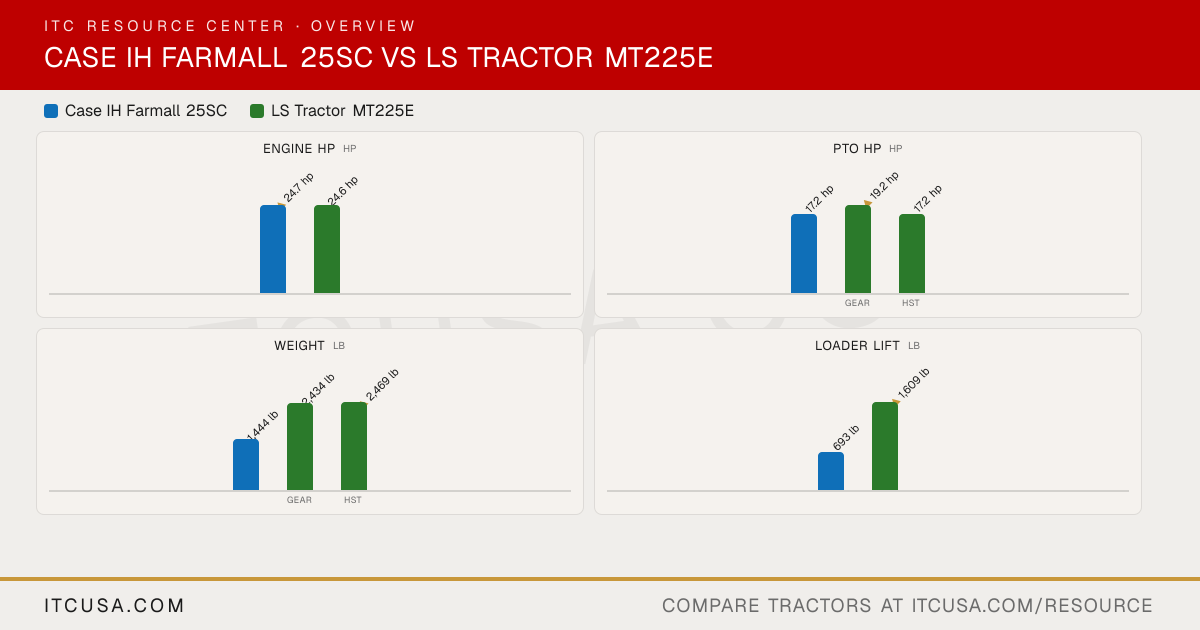

The headline numbers at a glance.

Case IH Farmall 25SCLS Tractor MT225E

Engine HPhp

▲24.7 hp

24.6 hp

PTO HPhp

17.2 hp

▲19.2 hp

17.2 hp

gearHST

Weightlb

1,444 lb

2,434 lb

▲2,469 lb

gearHST

Loader Liftlb

693 lb

▲1,609 lb

3-Pt Lift (24 in)lb

728 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	LS TractorMT225E


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNV80F	S3L2
Engine Type	3-cylinder, indirect-injection, water-cooled diesel, Tier 4 B/Final	3-cylinder, liquid-cooled, naturally aspirated IDI diesel
No. of Cylinders	3	3
Displacement	77.3 in³	80.4 in³
Rated Engine Speed	3000 rpm	2500 rpm
Engine Power (Gross)	24.7 hp	24.6 hp
PTO Power	17.2 hp	MT225E (gear): 19.2 hp; MT225HE (HST): 17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Indirect injection	Indirect injection (IDI)
Alternator	50 A	50 A, 12 V

Pump Type	Not Published	Gear pump, engine driven
Implement Flow	4.6 gpm	7.9 gpm
Steering Flow	2.1 gpm	4.6 gpm
Total Hydraulic Flow	6.7 gpm	12.5 gpm
Overall Hydraulic Pump Flow	Not Published	12.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None standard
No. of Optional Remote Valves	1	1 or 2 optional (double-acting, 2 or 4 quick couplers)

Fuel Tank Capacity	6.6 gal	7.4 gal
Coolant Capacity	Not Published	1.3 gal
Crankcase Capacity	Not Published	1.1 gal
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,500 rpm	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	1,808 lb
Hitch Lift Capacity (at 24”)	728 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	2-range hydrostatic (wet clutch)	MT225E (gear): Synchro shuttle; MT225HE (HST): HST
No. of Speeds	Infinite, 2-range hydrostatic	MT225E (gear): F12 x R12; MT225HE (HST): 3 ranges (HST)
Max Travel Speed (Forward)	9.1 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet clutch	MT225E (gear): dry single clutch; MT225HE (HST): not applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	97 in	118 in
Overall Width	46.7 in	54 in
Wheelbase	56 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	10.5 ft
Height to Top of ROPS	87.4 in	88 in
Height to Top of ROPS (folded)	62.4 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,444 lb	MT225E (gear): 2,434 lb; MT225HE (HST): 2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	18x8.5-10	25x8.5-14
R3 Turf - Rear	26x12-12	41x14-20
R4 Industrial - Front	18x8.5-10	25x8.5-14
R4 Industrial - Rear	26x12-12	43x16-20

Quick Attach Loader System	L320S	LL3300: quick attach loader with skid steer compatible bucket
Loader Model	L320S	LL3300
Loader Lift Height	72 in	LL3300: 92 in
Loader Lift Capacity (Full Height)	693 lb	LL3300: 1,609 lb
Loader Breakout Force	1426 lb	LL3300: 2,701 lb

Warranty Length & Coverage	Not Published	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25SC vs LS Tractor MT225E: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the LS Tractor MT225E?: The Case IH Farmall 25SC leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the LS Tractor MT225E.
Which has more PTO horsepower, the Case IH Farmall 25SC or the LS Tractor MT225E?: The LS Tractor MT225E leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.
Which is heavier, the Case IH Farmall 25SC or the LS Tractor MT225E?: The LS Tractor MT225E leads on weight at 2,469 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.
Which has more loader lift capacity, the Case IH Farmall 25SC or the LS Tractor MT225E?: The LS Tractor MT225E leads on loader lift at 1,609 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.
Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the LS Tractor MT225E?: The LS Tractor MT225E leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25SC	LS Tractor MT225E
Engine HP (hp)	▲ 24.7 hp	24.6 hp
PTO HP (hp)	17.2 hp	▲ 19.2 hp
Weight (lb)	1,444 lb	▲ 2,469 lb
Loader Lift (lb)	693 lb	▲ 1,609 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,433 lb
Lift Height (in)	72 in	▲ 92 in
Breakout Force (lbf)	1,426 lbf	▲ 2,701 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 12.5 gpm
Travel Speed (mph)	9.1 mph	n/a

The headline numbers at a glance.

Case IH Farmall 25SCLS Tractor MT225E

Engine HPhp

▲24.7 hp

24.6 hp

PTO HPhp

17.2 hp

▲19.2 hp

17.2 hp

gearHST

Weightlb

1,444 lb

2,434 lb

▲2,469 lb

gearHST

Loader Liftlb

693 lb

▲1,609 lb

3-Pt Lift (24 in)lb

728 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	LS TractorMT225E


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNV80F	S3L2
Engine Type	3-cylinder, indirect-injection, water-cooled diesel, Tier 4 B/Final	3-cylinder, liquid-cooled, naturally aspirated IDI diesel
No. of Cylinders	3	3
Displacement	77.3 in³	80.4 in³
Rated Engine Speed	3000 rpm	2500 rpm
Engine Power (Gross)	24.7 hp	24.6 hp
PTO Power	17.2 hp	MT225E (gear): 19.2 hp; MT225HE (HST): 17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Indirect injection	Indirect injection (IDI)
Alternator	50 A	50 A, 12 V

Pump Type	Not Published	Gear pump, engine driven
Implement Flow	4.6 gpm	7.9 gpm
Steering Flow	2.1 gpm	4.6 gpm
Total Hydraulic Flow	6.7 gpm	12.5 gpm
Overall Hydraulic Pump Flow	Not Published	12.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None standard
No. of Optional Remote Valves	1	1 or 2 optional (double-acting, 2 or 4 quick couplers)

Fuel Tank Capacity	6.6 gal	7.4 gal
Coolant Capacity	Not Published	1.3 gal
Crankcase Capacity	Not Published	1.1 gal
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,500 rpm	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	1,808 lb
Hitch Lift Capacity (at 24”)	728 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	2-range hydrostatic (wet clutch)	MT225E (gear): Synchro shuttle; MT225HE (HST): HST
No. of Speeds	Infinite, 2-range hydrostatic	MT225E (gear): F12 x R12; MT225HE (HST): 3 ranges (HST)
Max Travel Speed (Forward)	9.1 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet clutch	MT225E (gear): dry single clutch; MT225HE (HST): not applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	97 in	118 in
Overall Width	46.7 in	54 in
Wheelbase	56 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	10.5 ft
Height to Top of ROPS	87.4 in	88 in
Height to Top of ROPS (folded)	62.4 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,444 lb	MT225E (gear): 2,434 lb; MT225HE (HST): 2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	18x8.5-10	25x8.5-14
R3 Turf - Rear	26x12-12	41x14-20
R4 Industrial - Front	18x8.5-10	25x8.5-14
R4 Industrial - Rear	26x12-12	43x16-20

Quick Attach Loader System	L320S	LL3300: quick attach loader with skid steer compatible bucket
Loader Model	L320S	LL3300
Loader Lift Height	72 in	LL3300: 92 in
Loader Lift Capacity (Full Height)	693 lb	LL3300: 1,609 lb
Loader Breakout Force	1426 lb	LL3300: 2,701 lb

Warranty Length & Coverage	Not Published	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25SC vs LS Tractor MT225E: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the LS Tractor MT225E?

The Case IH Farmall 25SC leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the LS Tractor MT225E.

Which has more PTO horsepower, the Case IH Farmall 25SC or the LS Tractor MT225E?

The LS Tractor MT225E leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.

Which is heavier, the Case IH Farmall 25SC or the LS Tractor MT225E?

The LS Tractor MT225E leads on weight at 2,469 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.

Which has more loader lift capacity, the Case IH Farmall 25SC or the LS Tractor MT225E?

The LS Tractor MT225E leads on loader lift at 1,609 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.

Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the LS Tractor MT225E?

The LS Tractor MT225E leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.
