Case IH Farmall 35A vs Case IH Farmall 35C Gear
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the Case IH Farmall 35C Gear leads 5 categories to 2 (2 tied). Machine pages: Case IH Farmall 35A and Case IH Farmall 35C Gear.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

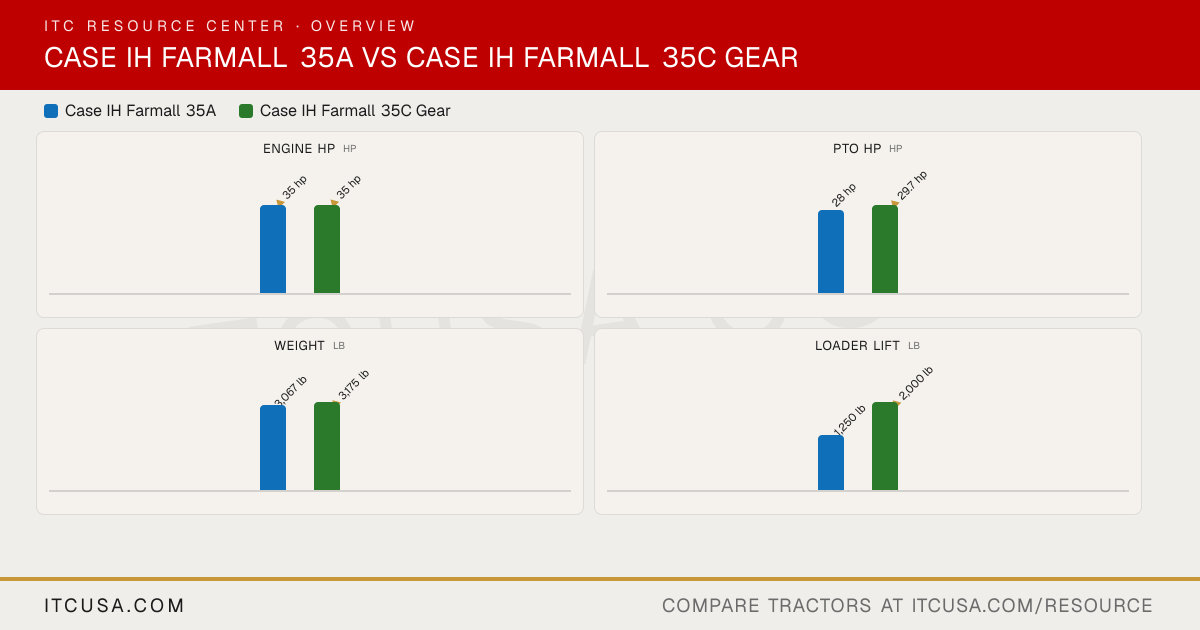

Category Verdict
| Spec | Case IH Farmall 35A | Case IH Farmall 35C Gear |
|---|---|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | 28 hp | ▲ 29.7 hp |
| Weight (lb) | 3,067 lb | ▲ 3,175 lb |
| Loader Lift (lb) | 1,250 lb | ▲ 2,000 lb |
| 3-Pt Lift (24 in) (lb) | 1,433 lb | 1,433 lb |
| Lift Height (in) | 98.4 in | ▲ 105 in |
| Breakout Force (lbf) | 1,913 lbf | ▲ 2,640 lbf |
| Hydraulic Flow (gpm) | ▲ 13.5 gpm | 8.2 gpm |
| Travel Speed (mph) | ▲ 14.8 mph | 14.2 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 35A | Case IHFarmall 35C Gear |
|---|
| Engine Manufacturer | LS Mtron | Not Published |
|---|---|---|
| Engine Model | L3C19-T5 | Not Published |
| Engine Type | 3-cylinder, turbocharged diesel, Tier 4 B/Final | Diesel, 3-cylinder, turbocharged |
| No. of Cylinders | 3 | 3 |
| Displacement | 116 in³ | 116 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 35 hp | 35 hp |
| PTO Power | 28 hp | 29.7 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Pressurized liquid cooling with recirculating bypass | Not Published |
| Air Cleaner | Not Published | Replaceable dry element |
| Fuel System | High pressure common rail | Common rail direct injection |
| Alternator | 70 A, 12 V | 70 A |
Case IH Farmall 35A vs Case IH Farmall 35C Gear: Quick Answers
- Which has more horsepower, the Case IH Farmall 35A or the Case IH Farmall 35C Gear?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall 35A or the Case IH Farmall 35C Gear?
- The Case IH Farmall 35C Gear leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the Case IH Farmall 35A.
- Which is heavier, the Case IH Farmall 35A or the Case IH Farmall 35C Gear?
- The Case IH Farmall 35C Gear leads on weight at 3,175 lb lb, compared to 3,067 lb lb for the Case IH Farmall 35A.
- Which has more loader lift capacity, the Case IH Farmall 35A or the Case IH Farmall 35C Gear?
- The Case IH Farmall 35C Gear leads on loader lift at 2,000 lb lb, compared to 1,250 lb lb for the Case IH Farmall 35A.
- Which has more three-point hitch lift capacity, the Case IH Farmall 35A or the Case IH Farmall 35C Gear?
- They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
