Case IH Farmall 35C Gear vs Case IH Farmall Compact 35A
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the Case IH Farmall 35C Gear leads 5 categories to 2 (2 tied). Machine pages: Case IH Farmall 35C Gear and Case IH Farmall Compact 35A.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

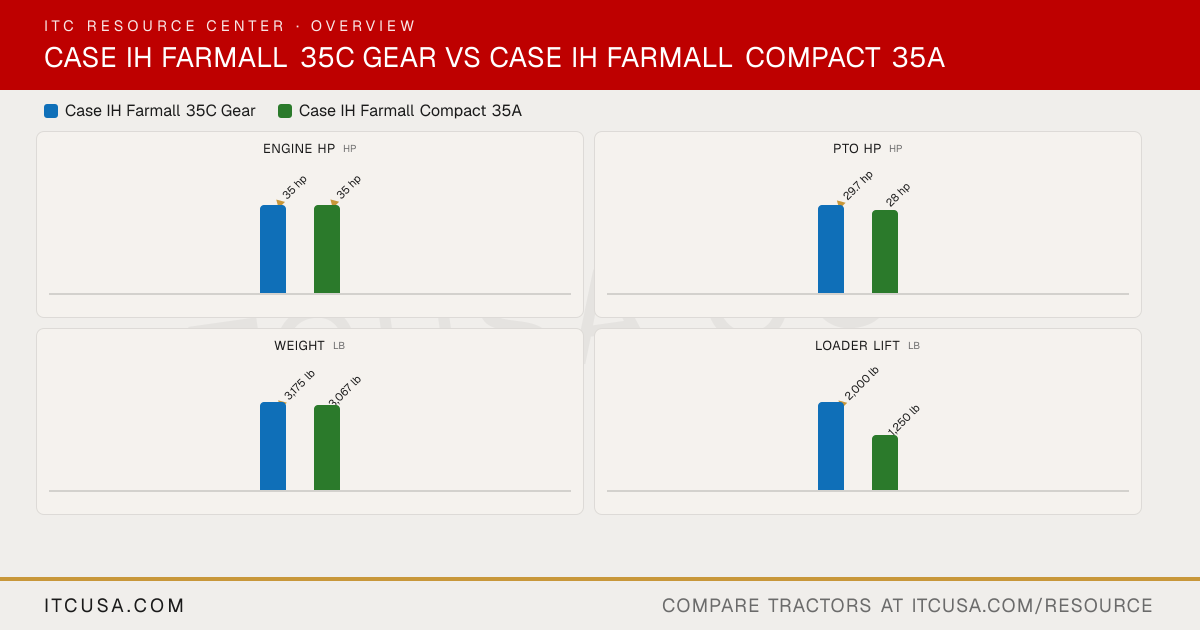

Category Verdict
| Spec | Case IH Farmall 35C Gear | Case IH Farmall Compact 35A |
|---|---|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | ▲ 29.7 hp | 28 hp |
| Weight (lb) | ▲ 3,175 lb | 3,067 lb |
| Loader Lift (lb) | ▲ 2,000 lb | 1,250 lb |
| 3-Pt Lift (24 in) (lb) | 1,433 lb | 1,433 lb |
| Lift Height (in) | ▲ 105 in | 98.4 in |
| Breakout Force (lbf) | ▲ 2,640 lbf | 1,913 lbf |
| Hydraulic Flow (gpm) | 8.2 gpm | ▲ 13.5 gpm |
| Travel Speed (mph) | 14.2 mph | ▲ 14.8 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 35C Gear | Case IHFarmall Compact 35A |
|---|
| Engine Manufacturer | Not Published | LS Mtron |
|---|---|---|
| Engine Model | Not Published | L3C19-T5 |
| Engine Type | Diesel, 3-cylinder, turbocharged | 3-cylinder, turbocharged diesel, Tier 4 B/Final |
| No. of Cylinders | 3 | 3 |
| Displacement | 116 in³ | 116 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 35 hp | 35 hp |
| PTO Power | 29.7 hp | 28 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Not Published | Pressurized liquid cooling with recirculating bypass |
| Air Cleaner | Replaceable dry element | Not Published |
| Fuel System | Common rail direct injection | High pressure common rail |
| Alternator | 70 A | 70 A, 12 V |
Case IH Farmall 35C Gear vs Case IH Farmall Compact 35A: Quick Answers
- Which has more horsepower, the Case IH Farmall 35C Gear or the Case IH Farmall Compact 35A?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall 35C Gear or the Case IH Farmall Compact 35A?
- The Case IH Farmall 35C Gear leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35A.
- Which is heavier, the Case IH Farmall 35C Gear or the Case IH Farmall Compact 35A?
- The Case IH Farmall 35C Gear leads on weight at 3,175 lb lb, compared to 3,067 lb lb for the Case IH Farmall Compact 35A.
- Which has more loader lift capacity, the Case IH Farmall 35C Gear or the Case IH Farmall Compact 35A?
- The Case IH Farmall 35C Gear leads on loader lift at 2,000 lb lb, compared to 1,250 lb lb for the Case IH Farmall Compact 35A.
- Which has more three-point hitch lift capacity, the Case IH Farmall 35C Gear or the Case IH Farmall Compact 35A?
- They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
