Case IH Farmall 50A vs Case IH Farmall Compact 50C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Case IH Farmall 50A leads 5 categories to 2. Machine pages: Case IH Farmall 50A and Case IH Farmall Compact 50C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 50A	Case IH Farmall Compact 50C
Engine HP (hp)	▲ 53 hp	50 hp
PTO HP (hp)	▲ 45 hp	42.5 hp
Loader Lift (lb)	▲ 2,734 lb	1,830 lb
3-Pt Lift (24 in) (lb)	2,701 lb	▲ 2,756 lb
Lift Height (in)	106 in	▲ 112 in
Breakout Force (lbf)	▲ 3,527 lbf	3,114 lbf
Hydraulic Flow (gpm)	▲ 11.9 gpm	8.2 gpm

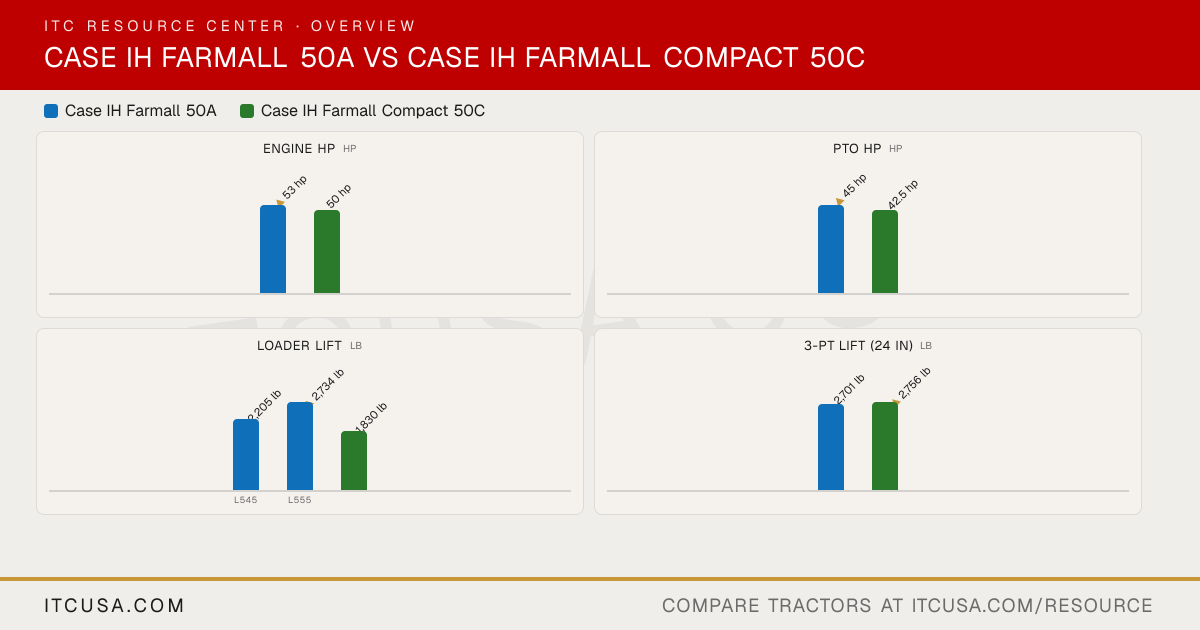

The headline numbers at a glance.

Case IH Farmall 50ACase IH Farmall Compact 50C

Engine HPhp

▲53 hp

50 hp

PTO HPhp

▲45 hp

42.5 hp

Weightlb

—

Loader Liftlb

2,205 lb

▲2,734 lb

1,830 lb

L545L555

3-Pt Lift (24 in)lb

2,701 lb

▲2,756 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 50A	Case IHFarmall Compact 50C


PTO Power	45 hp	42.5 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, turbocharged & aftercooled (intercooled)	Diesel, naturally aspirated
Fuel System	Not Published	Common Rail Direct Injection
Displacement	134.3 in³	115.9 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	Not Published
Cooling System Type	Not Published	Not Published
Engine Manufacturer	FPT Industrial	Not Published
Engine Power (Gross)	53 hp	50 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	Not Published

Pump Type	Not Published	Not Published
Steering Flow	Not Published	Not Published
Implement Flow	11.9 gpm	8.2 gpm
Total Hydraulic Flow	Not Published	Not Published
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
No. of Optional Remote Valves	2	Not Published
No. of Standard Remote Valves	1	Not Published

PTO Rear	540 / 540E	540 rpm (standard)
PTO Type	Not Published	Independent rear PTO with electro-hydraulic engagement (standard)
Lift Control Type	Mechanical Draft Control (MDC) top link sensing	Mechanical position control
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Not Published	Optional mid-PTO @ 2,000 rpm
Category, 3-Point Hitch	Category 1/2	Not Published
Hitch Lift Capacity (at 24”)	2,701 lb	2,756 lb @ 24 in behind pin

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	17.2 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	L545: 106 in; L555: 105 in	112 in
Loader Breakout Force	L545: 3,131 lb; L555: 3,527 lb	3,114 lb
Quick Attach Loader System	Compatible with L545 and L555 loaders	Compatible with L360A loader
Loader Lift Capacity (Full Height)	L545: 2,205 lb; L555: 2,734 lb	1,830 lb

Clutch	Dry clutch	Not Published
No. of Speeds	8 forward / 8 reverse	16x16 (Mechanical) / 3-range (Hydrostatic)
Transmission Type	8x8 mechanical shuttle	16x16 Mechanical Shuttle or 3-range Hydrostatic
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock; limited slip (MFD)	Not Published

Brakes	Not Published	Not Published
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Adjustable suspension seat

Wheelbase	96.5 in (2WD); 97.6 in (MFD)	Not Published
Overall Width	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	75.9 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	129.5 in (2WD); 134.0 in (MFD)	Not Published

Case IH Farmall 50A vs Case IH Farmall Compact 50C: Quick Answers

Which has more horsepower, the Case IH Farmall 50A or the Case IH Farmall Compact 50C?: The Case IH Farmall 50A leads on engine hp at 53 hp hp, compared to 50 hp hp for the Case IH Farmall Compact 50C.
Which has more PTO horsepower, the Case IH Farmall 50A or the Case IH Farmall Compact 50C?: The Case IH Farmall 50A leads on pto hp at 45 hp hp, compared to 42.5 hp hp for the Case IH Farmall Compact 50C.
Which has more loader lift capacity, the Case IH Farmall 50A or the Case IH Farmall Compact 50C?: The Case IH Farmall 50A leads on loader lift at 2,734 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 50C.
Which has more three-point hitch lift capacity, the Case IH Farmall 50A or the Case IH Farmall Compact 50C?: The Case IH Farmall Compact 50C leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,701 lb lb for the Case IH Farmall 50A.
