Case IH Farmall 50C vs Case IH Farmall 55C Gear
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, this matchup is a dead heat: 2 categories to the Case IH Farmall 50C, 2 to the Case IH Farmall 55C Gear, 4 tied. Machine pages: Case IH Farmall 50C and Case IH Farmall 55C Gear.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

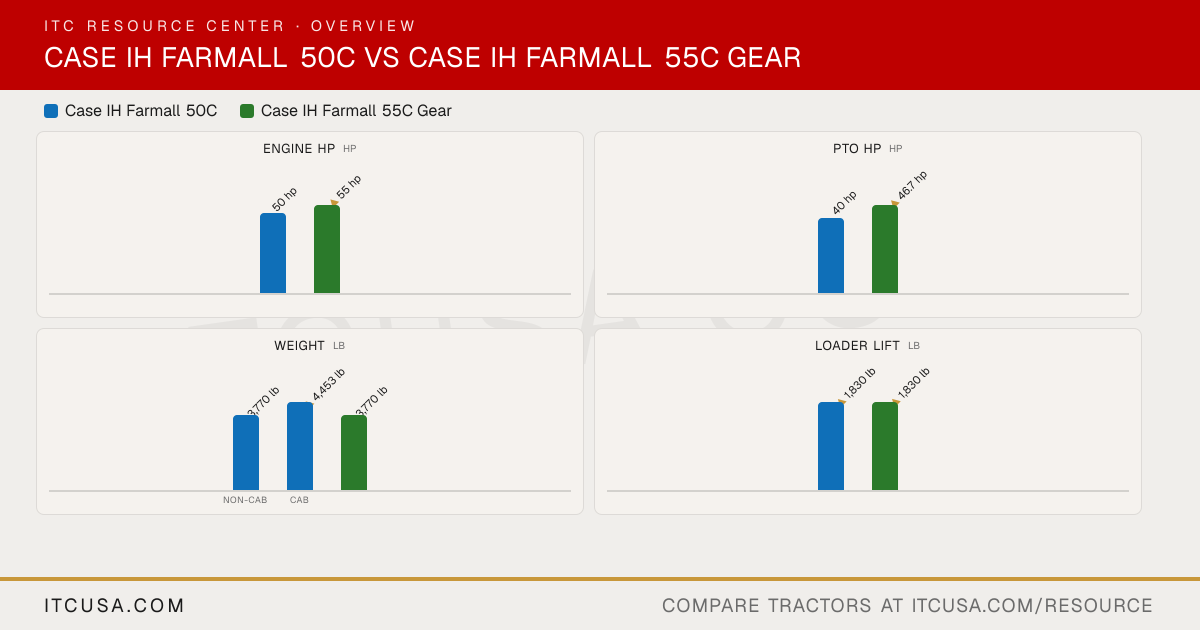

Category Verdict
| Spec | Case IH Farmall 50C | Case IH Farmall 55C Gear |
|---|---|---|
| Engine HP (hp) | 50 hp | ▲ 55 hp |
| PTO HP (hp) | 40 hp | ▲ 46.7 hp |
| Weight (lb) | ▲ 4,453 lb | 3,770 lb |
| Loader Lift (lb) | 1,830 lb | 1,830 lb |
| 3-Pt Lift (24 in) (lb) | 2,756 lb | 2,756 lb |
| Lift Height (in) | 112 in | 112 in |
| Breakout Force (lbf) | 3,114 lbf | 3,114 lbf |
| Hydraulic Flow (gpm) | ▲ 13.5 gpm | 12.4 gpm |
| Travel Speed (mph) | n/a | 16.9 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 50C | Case IHFarmall 55C Gear |
|---|
| Engine Manufacturer | LS Mtron | LS Mtron |
|---|---|---|
| Engine Model | Not Published | L3C19-T |
| Engine Type | Diesel, 3-cylinder, turbocharged | Diesel, 3-cylinder, turbocharged |
| No. of Cylinders | 3 | 3 |
| Displacement | 115.9 in³ | 115.9 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 50 hp | 55 hp |
| PTO Power | 40 hp | 46.7 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Not Published | Liquid-cooled |
| Air Cleaner | Not Published | Replaceable dry element |
| Fuel System | Common rail direct injection | Not Published |
| Alternator | Not Published | 70 A |
Case IH Farmall 50C vs Case IH Farmall 55C Gear: Quick Answers
- Which has more horsepower, the Case IH Farmall 50C or the Case IH Farmall 55C Gear?
- The Case IH Farmall 55C Gear leads on engine hp at 55 hp hp, compared to 50 hp hp for the Case IH Farmall 50C.
- Which has more PTO horsepower, the Case IH Farmall 50C or the Case IH Farmall 55C Gear?
- The Case IH Farmall 55C Gear leads on pto hp at 46.7 hp hp, compared to 40 hp hp for the Case IH Farmall 50C.
- Which is heavier, the Case IH Farmall 50C or the Case IH Farmall 55C Gear?
- The Case IH Farmall 50C leads on weight at 4,453 lb lb, compared to 3,770 lb lb for the Case IH Farmall 55C Gear.
- Which has more loader lift capacity, the Case IH Farmall 50C or the Case IH Farmall 55C Gear?
- They are effectively tied: both machines are rated at 1,830 lb lb for loader lift.
- Which has more three-point hitch lift capacity, the Case IH Farmall 50C or the Case IH Farmall 55C Gear?
- They are effectively tied: both machines are rated at 2,756 lb lb for 3-pt lift (24 in).
