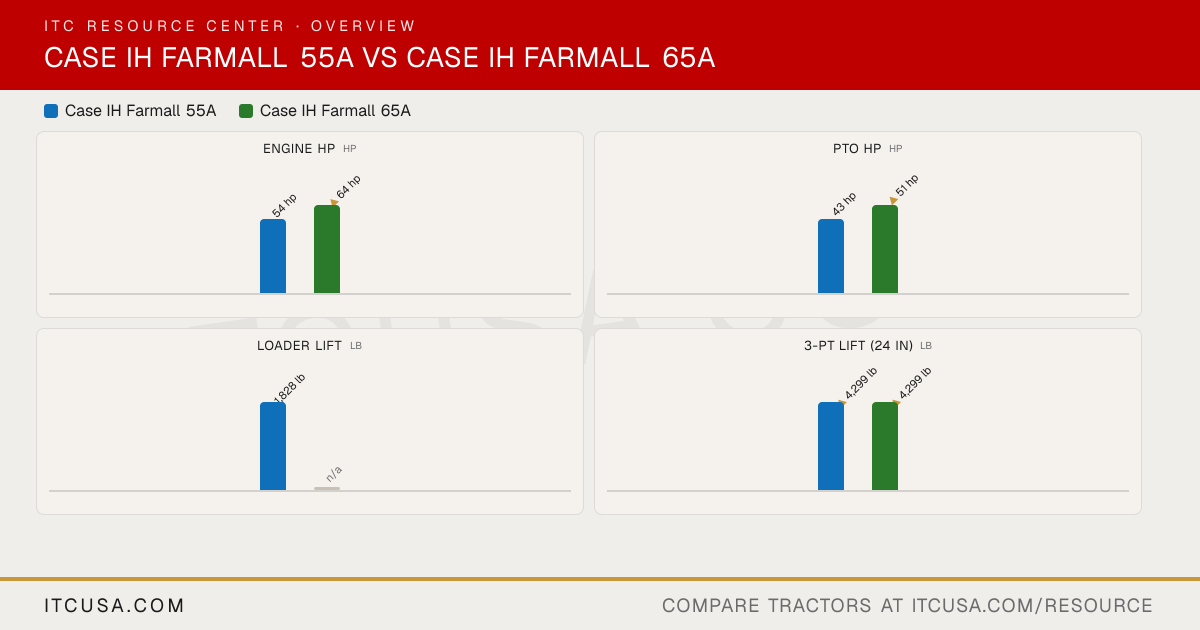

| PTO Power | 43 hp | 51 hp |
|---|
| Alternator | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Engine Type | Diesel, turbocharged | Diesel, turbocharged |
|---|
| Fuel System | Electronic high-pressure common rail | Not Published |
|---|
| Displacement | 177 in³ | 178.8 in³ |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Rated Engine Speed | 2300 rpm | 2300 rpm |
|---|
| Cooling System Type | Not Published | Not Published |
|---|
| Engine Manufacturer | FPT Industrial | FPT Industrial |
|---|
| Engine Power (Gross) | 54 hp | 64 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
|
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Applicable | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Steering Flow | Not Published | Not Published |
|---|
| Implement Flow | 12.6 gpm | 12.6 gpm |
|---|
| Total Hydraulic Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | 3 | 3 |
|---|
| No. of Standard Remote Valves | 2 | 2 |
|---|
|
|---|
| PTO Rear | 540 rpm standard; optional 540/540E | 540 (standard); 540/540E (optional) |
|---|
| PTO Type | Not Published | Not Published |
|---|
| Lift Control Type | Mechanical Draft Control (MDC), top link sensing | Mechanical Draft Control (MDC) top link sensing |
|---|
| Hitch Lift Capacity | 4,299 lb @ 24 in behind pin (optional 4,740 lb) | 4,299 lb (standard); 4,740 lb (optional) @ 24 in behind pin |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category 1/2 | Category 1/2 |
|---|
| Hitch Lift Capacity (at 24”) | 4,299 lb @ 24 in behind pin | 4,299 lb (standard); 4,740 lb (optional) @ 24 in behind pin |
|---|
|
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | L610 |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
|
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Fuel Tank Capacity | 21.7 gal | 21.7 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
|
|---|
| Loader Lift Height | 120 in (L610 max height under level bucket) | 120 in |
|---|
| Loader Breakout Force | Not Published | Not Published |
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Lift Capacity (Full Height) | Up to 1,828 lb NSL or 3,153 lb MSL @ 31.5 in forward of pivot pin | Not Published |
|---|
|
|---|
| Clutch | Dry clutch (8x8); wet clutch (12x12 power shuttle) | Dry clutch (8x8 mechanical); wet clutch (12x12 power shuttle) |
|---|
| No. of Speeds | 8 forward / 8 reverse (optional 12 forward / 12 reverse; creeper ready) | 8F/8R (standard); 12F/12R (optional); 20F/20R (12x12 with creeper) |
|---|
| Transmission Type | 8x8 mechanical shuttle (dry clutch); optional 12x12 power shuttle (wet clutch) or 12x12 with creeper | 8x8 mechanical shuttle (standard); 12x12 power shuttle or 12x12 with creeper (optional) |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical differential lock; limited-slip front axle (MFD) | Mechanical differential lock; MFD with limited slip |
|---|
|
|---|
| Brakes | Not Published | Not Published |
|---|
| Steering | Not Published | Not Published |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | 2WD or MFD with limited slip | 2WD or MFD with limited slip |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
|
|---|
| Wheelbase | 81.2 in 2WD; 81.8 in MFD | 81.2 in (2WD); 81.8 in (MFD) |
|---|
| Overall Width | Not Published | Not Published |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Height to Top of ROPS | 100 in (top of cab, MFD) | Not Applicable |
|---|
| Height to Top of Cab Model | 6,834 lb MFD w/o ballast (cab); 6,173 lb 2WD w/o ballast (cab) | 100.0 in |
|---|
| Height to Top of ROPS (folded) | Not Applicable | Not Applicable |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Overall Length with 3-Point Hitch | 151.8 in | 151.8 in |
|---|
