Case IH Farmall 55A vs Massey Ferguson 1754
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 7 measurable specs, the Case IH Farmall 55A leads 6 categories to 1. Machine pages: Case IH Farmall 55A and Massey Ferguson 1754.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

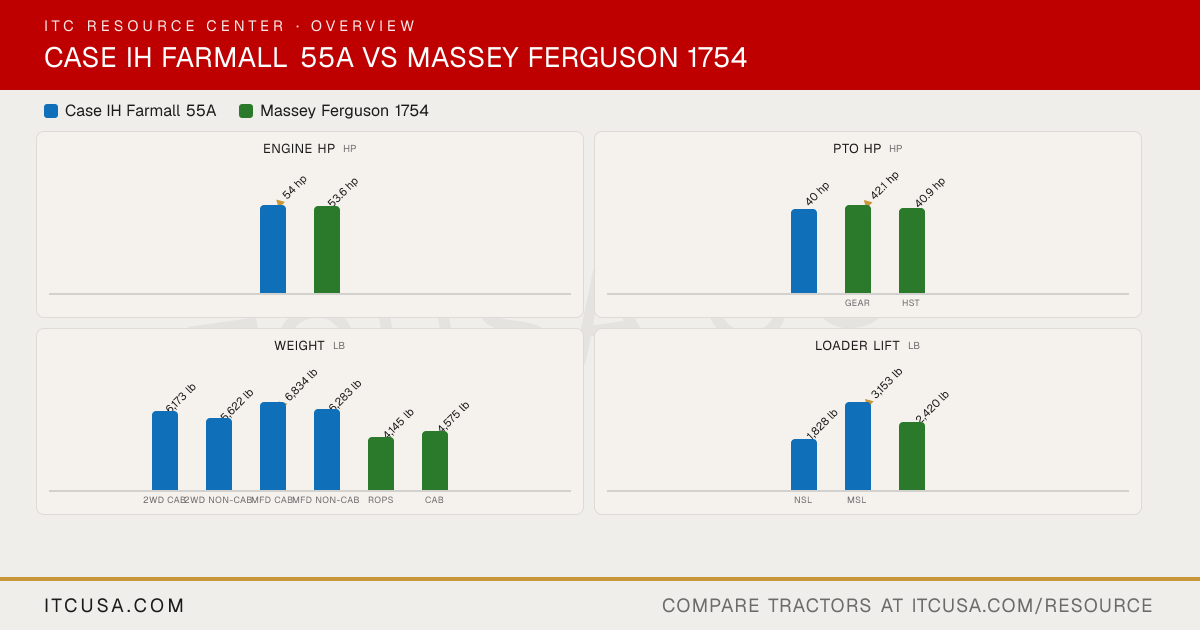

Category Verdict
| Spec | Case IH Farmall 55A | Massey Ferguson 1754 |
|---|---|---|
| Engine HP (hp) | ▲ 54 hp | 53.6 hp |
| PTO HP (hp) | 40 hp | ▲ 42.1 hp |
| Weight (lb) | ▲ 6,834 lb | 4,575 lb |
| Loader Lift (lb) | ▲ 3,153 lb | 2,420 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 4,300 lb | 3,086 lb |
| Lift Height (in) | ▲ 130.3 in | 110.2 in |
| Breakout Force (lbf) | n/a | 2,860 lbf |
| Hydraulic Flow (gpm) | ▲ 12.6 gpm | 11.6 gpm |
| Travel Speed (mph) | 18.6 mph | n/a |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 55A | Massey Ferguson1754 |
|---|
| Engine Manufacturer | FPT | Mitsubishi |
|---|---|---|
| Engine Model | S8000 | K39 |
| Engine Type | 3-cylinder, FPT turbocharged & aftercooled diesel, Tier 4 B/Final | 4-cylinder turbocharged and intercooled diesel |
| No. of Cylinders | 3 | 4 |
| Displacement | 178.8 in³ | 134.7 in³ |
| Rated Engine Speed | 2300 rpm | 2500 rpm |
| Engine Power (Gross) | 54 hp | 53.6 hp |
| PTO Power | 40 hp | Gear: 42.1 hp; HST: 40.9 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Not Published | Not Published |
| Fuel System | Electronic high pressure common rail | Common rail direct injection with electronic engine management |
| Alternator | 120 A | Not Published |
Case IH Farmall 55A vs Massey Ferguson 1754: Quick Answers
- Which has more horsepower, the Case IH Farmall 55A or the Massey Ferguson 1754?
- The Case IH Farmall 55A leads on engine hp at 54 hp hp, compared to 53.6 hp hp for the Massey Ferguson 1754.
- Which has more PTO horsepower, the Case IH Farmall 55A or the Massey Ferguson 1754?
- The Massey Ferguson 1754 leads on pto hp at 42.1 hp hp, compared to 40 hp hp for the Case IH Farmall 55A.
- Which is heavier, the Case IH Farmall 55A or the Massey Ferguson 1754?
- The Case IH Farmall 55A leads on weight at 6,834 lb lb, compared to 4,575 lb lb for the Massey Ferguson 1754.
- Which has more loader lift capacity, the Case IH Farmall 55A or the Massey Ferguson 1754?
- The Case IH Farmall 55A leads on loader lift at 3,153 lb lb, compared to 2,420 lb lb for the Massey Ferguson 1754.
- Which has more three-point hitch lift capacity, the Case IH Farmall 55A or the Massey Ferguson 1754?
- The Case IH Farmall 55A leads on 3-pt lift (24 in) at 4,300 lb lb, compared to 3,086 lb lb for the Massey Ferguson 1754.
