Case IH Farmall 55A vs Massey Ferguson MF 1755 E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, the Case IH Farmall 55A leads 2 categories to 0 (1 tied). Machine pages: Case IH Farmall 55A and Massey Ferguson MF 1755 E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 55A	Massey Ferguson MF 1755 E
Engine HP (hp)	54 hp	54 hp
PTO HP (hp)	43 hp	—
Loader Lift (lb)	1,828 lb	—
3-Pt Lift (24 in) (lb)	▲ 4,299 lb	2,646 lb
Lift Height (in)	120 in	—
Hydraulic Flow (gpm)	▲ 12.6 gpm	8.5 gpm

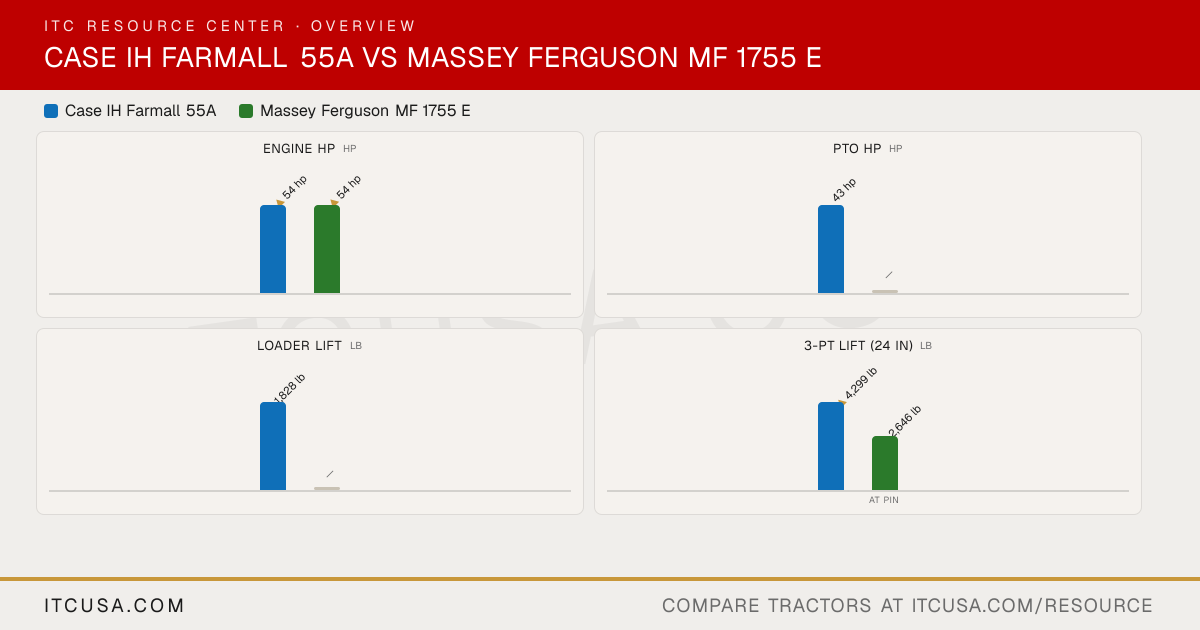

The headline numbers at a glance.

Case IH Farmall 55AMassey Ferguson MF 1755 E

Engine HPhp

▲54 hp

PTO HPhp

43 hp

—

Weightlb

—

Loader Liftlb

1,828 lb

—

3-Pt Lift (24 in)lb

▲4,299 lb

2,646 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 55A	Massey FergusonMF 1755 E


PTO Power	43 hp	Not Published
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, turbocharged	4-cylinder turbocharged diesel
Fuel System	Electronic high-pressure common rail	Not Published
Displacement	177 in³	148.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2300 rpm	Not Published
Cooling System Type	Not Published	Not Published
Engine Manufacturer	FPT Industrial	Massey Ferguson (AGCO)
Engine Power (Gross)	54 hp	54 hp
Engine Emissions Constraints	Tier 4	Stage V

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Not Published	Not Published

Pump Type	Not Published	Not Published
Steering Flow	Not Published	Not Published
Implement Flow	12.6 gpm	8.5 gpm
Total Hydraulic Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open-centre
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
No. of Optional Remote Valves	3	Not Published
No. of Standard Remote Valves	2	Up to 2

PTO Rear	540 rpm standard; optional 540/540E	540 rpm
PTO Type	Not Published	Independent
Lift Control Type	Mechanical Draft Control (MDC), top link sensing	Not Published
Hitch Lift Capacity	4,299 lb @ 24 in behind pin (optional 4,740 lb)	2,646 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1/2	Category I
Hitch Lift Capacity (at 24”)	4,299 lb @ 24 in behind pin	Not Published

R3 Turf - Rear	Not Published	420/70R24
R3 Turf - Front	Not Published	280/70R16
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf
R4 Industrial - Rear	Not Published	Not Applicable
R4 Industrial - Front	Not Published	Not Applicable
R1 Agricultural - Rear	Not Published	13.6R28
R1 Agricultural - Front	Not Published	9.5R16

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	21.7 gal	14.0 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	120 in (L610 max height under level bucket)	Not Published
Loader Breakout Force	Not Published	Not Published
Quick Attach Loader System	Not Published	Not Published
Loader Lift Capacity (Full Height)	Up to 1,828 lb NSL or 3,153 lb MSL @ 31.5 in forward of pivot pin	Not Published

Clutch	Dry clutch (8x8); wet clutch (12x12 power shuttle)	Not Published
No. of Speeds	8 forward / 8 reverse (optional 12 forward / 12 reverse; creeper ready)	12F / 12R
Transmission Type	8x8 mechanical shuttle (dry clutch); optional 12x12 power shuttle (wet clutch) or 12x12 with creeper	Mechanical
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock; limited-slip front axle (MFD)	Differential lock

Brakes	Not Published	Internal wet disc
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	81.2 in 2WD; 81.8 in MFD	78.0 in
Overall Width	Not Published	56.9-66.5 in (1,445-66.5 in)
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	100 in (top of cab, MFD)	90.4-93.9 in (2,295-93.9 in)
Height to Top of Cab Model	6,834 lb MFD w/o ballast (cab); 6,173 lb 2WD w/o ballast (cab)	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	151.8 in	135.8 in
