Case IH Farmall 55A vs New Holland Boomer 50

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Case IH Farmall 55A leads 4 categories to 2. Machine pages: Case IH Farmall 55A and New Holland Boomer 50.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 55A	New Holland Boomer 50
Engine HP (hp)	▲ 54 hp	52.8 hp
PTO HP (hp)	▲ 43 hp	40 hp
Loader Lift (lb)	1,828 lb	▲ 2,371 lb
3-Pt Lift (24 in) (lb)	▲ 4,299 lb	2,469 lb
Lift Height (in)	▲ 120 in	109 in
Breakout Force (lbf)	—	4,081 lbf
Hydraulic Flow (gpm)	12.6 gpm	▲ 14.8 gpm
Travel Speed (mph)	—	16.8 mph

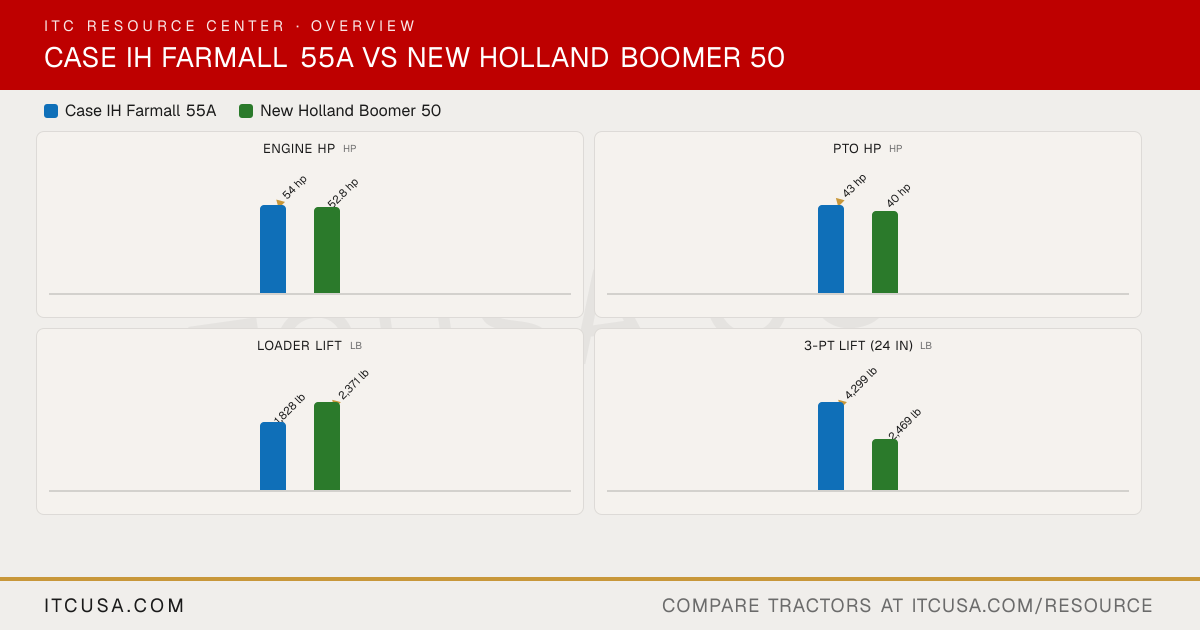

The headline numbers at a glance.

Case IH Farmall 55ANew Holland Boomer 50

Engine HPhp

▲54 hp

52.8 hp

PTO HPhp

▲43 hp

40 hp

Weightlb

—

Loader Liftlb

1,828 lb

▲2,371 lb

3-Pt Lift (24 in)lb

▲4,299 lb

2,469 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 55A	New HollandBoomer 50


PTO Power	43 hp	40 hp
Alternator	Not Published	70 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, turbocharged	Water-cooled, 4-stroke common rail turbocharged diesel
Fuel System	Electronic high-pressure common rail	High pressure common rail (ECU controlled)
Displacement	177 in³	0.1 in³
No. of Cylinders	3	3
Rated Engine Speed	2300 rpm	2600 rpm
Cooling System Type	Not Published	Pressurized liquid w/ recirculating bypass
Engine Manufacturer	FPT Industrial	LS Mtron
Engine Power (Gross)	54 hp	52.8 hp @ 600 rpm
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	Not Published	6-year limited powertrain, 2-year full coverage

Pump Type	Not Published	Gear
Steering Flow	Not Published	HST: 6.3 gpm; Gear: 4.2 gpm
Implement Flow	12.6 gpm	8.5 gpm
Total Hydraulic Flow	Not Published	HST: 14.8 gpm; Gear: 12.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	HST: 14.8 gpm; Gear: 12.7 gpm
No. of Optional Remote Valves	3	1
No. of Standard Remote Valves	2	1

PTO Rear	540 rpm standard; optional 540/540E	540 rpm
PTO Type	Not Published	Independent, electro-hydraulic engagement
Lift Control Type	Mechanical Draft Control (MDC), top link sensing	Position control
Hitch Lift Capacity	4,299 lb @ 24 in behind pin (optional 4,740 lb)	2,756 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1/2	Category I
Hitch Lift Capacity (at 24”)	4,299 lb @ 24 in behind pin	2,469 lb

R3 Turf - Rear	Not Published	41X14.00-20
R3 Turf - Front	Not Published	28X8.50-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	17.5LX24
R4 Industrial - Front	Not Published	12X16.5
R1 Agricultural - Rear	Not Published	13.6-24
R1 Agricultural - Front	Not Published	9.5-16

Coolant Capacity	Not Published	2.3 gal
Crankcase Capacity	Not Published	5.8 qt
Fuel Tank Capacity	21.7 gal	11.0 gal
Front Axle Fluid Capacity	Not Published	2.2 gal
Transmission / Hydraulic System Capacity	Not Published	11.4 gal

Loader Lift Height	120 in (L610 max height under level bucket)	109 in
Loader Breakout Force	Not Published	4,081 lb
Quick Attach Loader System	Not Published	260TLA: New Holland Quick Mount; optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	Up to 1,828 lb NSL or 3,153 lb MSL @ 31.5 in forward of pivot pin	2,371 lb

Clutch	Dry clutch (8x8); wet clutch (12x12 power shuttle)	HST: Not Applicable; Gear: Dry disc
No. of Speeds	8 forward / 8 reverse (optional 12 forward / 12 reverse; creeper ready)	HST: 3-range; Gear: 16F/16R
Transmission Type	8x8 mechanical shuttle (dry clutch); optional 12x12 power shuttle (wet clutch) or 12x12 with creeper	HST: 3-range hydrostatic; Gear: 16x16
Max Travel Speed (Forward)	Not Published	HST: 15.63 mph; Gear: 16.8 mph
Max Travel Speed (Reverse)	Not Published	HST: 11.37 mph; Gear: 15.3 mph
Differential Lock & Limited Slip Options	Mechanical differential lock; limited-slip front axle (MFD)	Differential lock

Brakes	Not Published	Wet disc
Steering	Not Published	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	4WD (FWD)
Drawbar Capacity	Not Published	Short: 2,317 lb; Regular: 1,598 lb; Extend: 1,091 lb
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	81.2 in 2WD; 81.8 in MFD	73 in
Overall Width	Not Published	63 in
Ground Clearance	Not Published	15 in
Height to Top of ROPS	100 in (top of cab, MFD)	96 in
Height to Top of Cab Model	6,834 lb MFD w/o ballast (cab); 6,173 lb 2WD w/o ballast (cab)	91 in
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	151.8 in	142 in

Case IH Farmall 55A vs New Holland Boomer 50: Quick Answers

Which has more horsepower, the Case IH Farmall 55A or the New Holland Boomer 50?: The Case IH Farmall 55A leads on engine hp at 54 hp hp, compared to 52.8 hp hp for the New Holland Boomer 50.
Which has more PTO horsepower, the Case IH Farmall 55A or the New Holland Boomer 50?: The Case IH Farmall 55A leads on pto hp at 43 hp hp, compared to 40 hp hp for the New Holland Boomer 50.
Which has more loader lift capacity, the Case IH Farmall 55A or the New Holland Boomer 50?: The New Holland Boomer 50 leads on loader lift at 2,371 lb lb, compared to 1,828 lb lb for the Case IH Farmall 55A.
Which has more three-point hitch lift capacity, the Case IH Farmall 55A or the New Holland Boomer 50?: The Case IH Farmall 55A leads on 3-pt lift (24 in) at 4,299 lb lb, compared to 2,469 lb lb for the New Holland Boomer 50.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 55A	New Holland Boomer 50
Engine HP (hp)	▲ 54 hp	52.8 hp
PTO HP (hp)	▲ 43 hp	40 hp
Loader Lift (lb)	1,828 lb	▲ 2,371 lb
3-Pt Lift (24 in) (lb)	▲ 4,299 lb	2,469 lb
Lift Height (in)	▲ 120 in	109 in
Breakout Force (lbf)	—	4,081 lbf
Hydraulic Flow (gpm)	12.6 gpm	▲ 14.8 gpm
Travel Speed (mph)	—	16.8 mph

The headline numbers at a glance.

Case IH Farmall 55ANew Holland Boomer 50

Engine HPhp

▲54 hp

52.8 hp

PTO HPhp

▲43 hp

40 hp

Weightlb

—

Loader Liftlb

1,828 lb

▲2,371 lb

3-Pt Lift (24 in)lb

▲4,299 lb

2,469 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 55A	New HollandBoomer 50


PTO Power	43 hp	40 hp
Alternator	Not Published	70 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, turbocharged	Water-cooled, 4-stroke common rail turbocharged diesel
Fuel System	Electronic high-pressure common rail	High pressure common rail (ECU controlled)
Displacement	177 in³	0.1 in³
No. of Cylinders	3	3
Rated Engine Speed	2300 rpm	2600 rpm
Cooling System Type	Not Published	Pressurized liquid w/ recirculating bypass
Engine Manufacturer	FPT Industrial	LS Mtron
Engine Power (Gross)	54 hp	52.8 hp @ 600 rpm
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	Not Published	6-year limited powertrain, 2-year full coverage

Pump Type	Not Published	Gear
Steering Flow	Not Published	HST: 6.3 gpm; Gear: 4.2 gpm
Implement Flow	12.6 gpm	8.5 gpm
Total Hydraulic Flow	Not Published	HST: 14.8 gpm; Gear: 12.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	HST: 14.8 gpm; Gear: 12.7 gpm
No. of Optional Remote Valves	3	1
No. of Standard Remote Valves	2	1

PTO Rear	540 rpm standard; optional 540/540E	540 rpm
PTO Type	Not Published	Independent, electro-hydraulic engagement
Lift Control Type	Mechanical Draft Control (MDC), top link sensing	Position control
Hitch Lift Capacity	4,299 lb @ 24 in behind pin (optional 4,740 lb)	2,756 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1/2	Category I
Hitch Lift Capacity (at 24”)	4,299 lb @ 24 in behind pin	2,469 lb

R3 Turf - Rear	Not Published	41X14.00-20
R3 Turf - Front	Not Published	28X8.50-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	17.5LX24
R4 Industrial - Front	Not Published	12X16.5
R1 Agricultural - Rear	Not Published	13.6-24
R1 Agricultural - Front	Not Published	9.5-16

Coolant Capacity	Not Published	2.3 gal
Crankcase Capacity	Not Published	5.8 qt
Fuel Tank Capacity	21.7 gal	11.0 gal
Front Axle Fluid Capacity	Not Published	2.2 gal
Transmission / Hydraulic System Capacity	Not Published	11.4 gal

Loader Lift Height	120 in (L610 max height under level bucket)	109 in
Loader Breakout Force	Not Published	4,081 lb
Quick Attach Loader System	Not Published	260TLA: New Holland Quick Mount; optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	Up to 1,828 lb NSL or 3,153 lb MSL @ 31.5 in forward of pivot pin	2,371 lb

Clutch	Dry clutch (8x8); wet clutch (12x12 power shuttle)	HST: Not Applicable; Gear: Dry disc
No. of Speeds	8 forward / 8 reverse (optional 12 forward / 12 reverse; creeper ready)	HST: 3-range; Gear: 16F/16R
Transmission Type	8x8 mechanical shuttle (dry clutch); optional 12x12 power shuttle (wet clutch) or 12x12 with creeper	HST: 3-range hydrostatic; Gear: 16x16
Max Travel Speed (Forward)	Not Published	HST: 15.63 mph; Gear: 16.8 mph
Max Travel Speed (Reverse)	Not Published	HST: 11.37 mph; Gear: 15.3 mph
Differential Lock & Limited Slip Options	Mechanical differential lock; limited-slip front axle (MFD)	Differential lock

Brakes	Not Published	Wet disc
Steering	Not Published	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	4WD (FWD)
Drawbar Capacity	Not Published	Short: 2,317 lb; Regular: 1,598 lb; Extend: 1,091 lb
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	81.2 in 2WD; 81.8 in MFD	73 in
Overall Width	Not Published	63 in
Ground Clearance	Not Published	15 in
Height to Top of ROPS	100 in (top of cab, MFD)	96 in
Height to Top of Cab Model	6,834 lb MFD w/o ballast (cab); 6,173 lb 2WD w/o ballast (cab)	91 in
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	151.8 in	142 in

Case IH Farmall 55A vs New Holland Boomer 50: Quick Answers

Which has more horsepower, the Case IH Farmall 55A or the New Holland Boomer 50?

The Case IH Farmall 55A leads on engine hp at 54 hp hp, compared to 52.8 hp hp for the New Holland Boomer 50.

Which has more PTO horsepower, the Case IH Farmall 55A or the New Holland Boomer 50?

The Case IH Farmall 55A leads on pto hp at 43 hp hp, compared to 40 hp hp for the New Holland Boomer 50.

Which has more loader lift capacity, the Case IH Farmall 55A or the New Holland Boomer 50?

The New Holland Boomer 50 leads on loader lift at 2,371 lb lb, compared to 1,828 lb lb for the Case IH Farmall 55A.

Which has more three-point hitch lift capacity, the Case IH Farmall 55A or the New Holland Boomer 50?

The Case IH Farmall 55A leads on 3-pt lift (24 in) at 4,299 lb lb, compared to 2,469 lb lb for the New Holland Boomer 50.
