Across 8 measurable specs, the Case IH Farmall 65C leads 7 categories to 1. Machine pages: Case IH Farmall 55C and Case IH Farmall 65C.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 55C | Case IH Farmall 65C |
|---|
| Engine HP (hp) | 55 hp | ▲ 64 hp |
| PTO HP (hp) | 44 hp | ▲ 50 hp |
| Weight (lb) | 3,770 lb | ▲ 6,548 lb |
| Loader Lift (lb) | 2,500 lb | ▲ 2,734 lb |
| 3-Pt Lift (24 in) (lb) | 2,469 lb | ▲ 3,956 lb |
| Lift Height (in) | ▲ 112 in | 105 in |
| Breakout Force (lbf) | 3,114 lbf | ▲ 3,527 lbf |
| Hydraulic Flow (gpm) | 8.2 gpm | ▲ 12.9 gpm |
| Travel Speed (mph) | 17.9 mph | n/a |

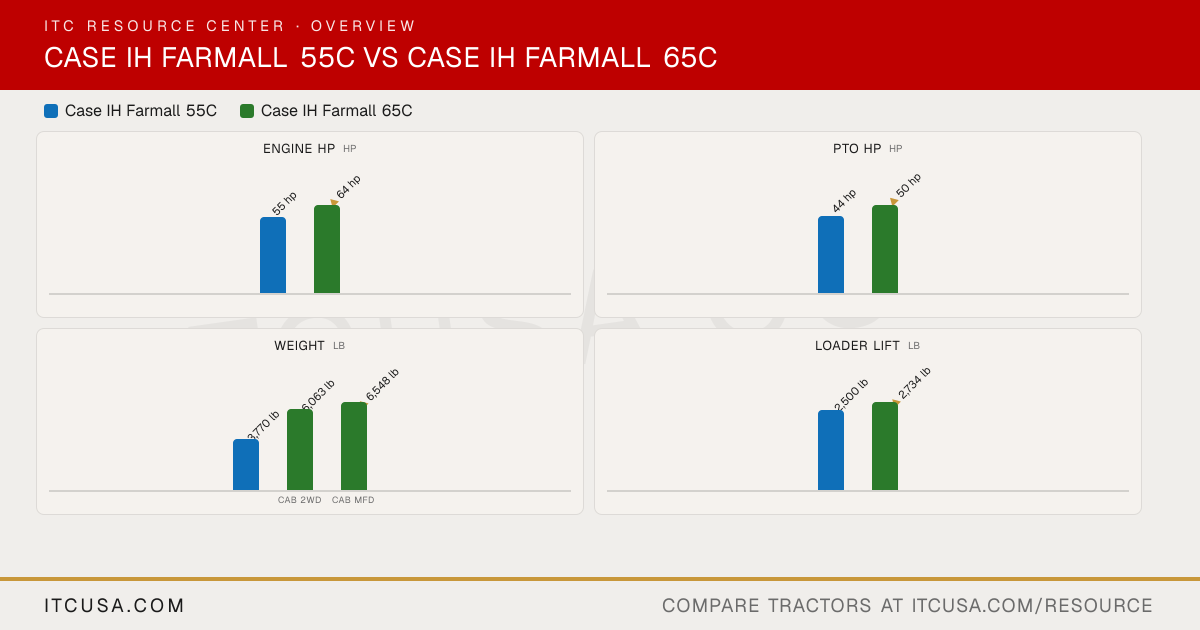

The headline numbers at a glance.
Case IH Farmall 55CCase IH Farmall 65C
ITCUSA.COMITCUSA.COMITCUSA.COM
Weightlb
3,770 lb
6,063 lb
▲6,548 lb
Cab 2WDCab MFD
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 55C | Case IHFarmall 65C |
|---|
|
|---|
| Engine Manufacturer | LS Mtron | FPT |
|---|
| Engine Model | L3C19-T | Not Published |
|---|
| Engine Type | Diesel, 3-cylinder, turbocharged | Turbocharged diesel |
|---|
| No. of Cylinders | 3 | 4 |
|---|
| Displacement | 116 in³ | 207 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2300 rpm |
|---|
| Engine Power (Gross) | 55 hp | 64 hp |
|---|
| PTO Power | 44 hp | 50 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Not Published |
|---|
| Air Cleaner | Replaceable dry element | Not Published |
|---|
| Fuel System | Common rail direct injection | Common rail |
|---|
| Alternator | 70 A | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Dual gear pumps |
|---|
| Implement Flow | 8.2 gpm | 12.9 gpm |
|---|
| Steering Flow | 5.3 gpm | 7.3 gpm |
|---|
| Total Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 1 | 2 |
|---|
| No. of Optional Remote Valves | 2 | 3 |
|---|
|
|---|
| Fuel Tank Capacity | 10.5 gal | 23.8 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent rear PTO, electro-hydraulic engagement | Independent |
|---|
| PTO Rear | 540 rpm | 540 rpm (540/540E optional) |
|---|
| Mid-PTO Availability | Optional, 2000 rpm | Not Published |
|---|
| Category, 3-Point Hitch | Category 1 | Category I/II |
|---|
| Hitch Lift Capacity | 2,756 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 2,469 lb | 3,956 lb |
|---|
| Lift Control Type | Mechanical draft control (MDC) | Mechanical draft control (MDC), top link sensing |
|---|
|
|---|
| Transmission Type | 3-range hydrostatic (HST) | Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) |
|---|
| No. of Speeds | infinitely variable, 3 ranges | Standard: 12 forward / 12 reverse; Optional creeper: 20 forward / 20 reverse |
|---|
| Max Travel Speed (Forward) | 17.9 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Applicable | Wet clutch |
|---|
| Differential Lock & Limited Slip Options | Mechanical rear differential lock | Mechanical rear differential lock; limited-slip MFD front axle |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Hydrostatic power steering |
|---|
| Brakes | Wet multi-disc | Hydraulic wet disc |
|---|
| Seat Suspension & Adjustability | Adjustable suspension seat | Not Published |
|---|
| Front Axle Type | Mechanical Front Drive (MFD) | 2WD: 2WD front axle; MFD: MFD with limited slip, electrohydraulic engagement |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 128.1 in | 145.8 in |
|---|
| Overall Width | 69.1 in | 76 in |
|---|
| Wheelbase | 73.2 in | 2WD: 85.8 in; MFD: 84 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | 97.1 in | Not Published |
|---|
| Height to Top of ROPS (folded) | 78.6 in | Not Published |
|---|
| Height to Top of Cab Model | 93.3 in | 98 in |
|---|
|
|---|
| Tractor Weight (Base) | 3,770 lb | Cab 2WD: 6,063 lb; Cab MFD: 6,548 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Agricultural; R3 Turf; R4 Industrial | 18.4R34 rear |
|---|
| R1 Agricultural - Front | 9.5-16 | Not Published |
|---|
| R1 Agricultural - Rear | 13.6-24 | Not Published |
|---|
| R3 Turf - Front | 28x8.50-15 | Not Published |
|---|
| R3 Turf - Rear | 41x14.00-20 | Not Published |
|---|
| R4 Industrial - Front | 12-16.5 | Not Published |
|---|
| R4 Industrial - Rear | 17.5L-24 | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Quick-Attach faceplate; quick-connect loader mounting (L360A) | Compatible with L565 loader |
|---|
| Loader Model | L360A | L565 |
|---|
| Loader Lift Height | 112 in | 105 in |
|---|
| Loader Lift Capacity (Full Height) | 2,500 lb | 2,734 lb |
|---|
| Loader Breakout Force | 3,114 lbf | 3,527 lb |
|---|
|
|---|
| Warranty Length & Coverage | 6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain | Not Published |
|---|
Case IH Farmall 55C vs Case IH Farmall 65C: Quick Answers
- Which has more horsepower, the Case IH Farmall 55C or the Case IH Farmall 65C?
- The Case IH Farmall 65C leads on engine hp at 64 hp hp, compared to 55 hp hp for the Case IH Farmall 55C.
- Which has more PTO horsepower, the Case IH Farmall 55C or the Case IH Farmall 65C?
- The Case IH Farmall 65C leads on pto hp at 50 hp hp, compared to 44 hp hp for the Case IH Farmall 55C.
- Which is heavier, the Case IH Farmall 55C or the Case IH Farmall 65C?
- The Case IH Farmall 65C leads on weight at 6,548 lb lb, compared to 3,770 lb lb for the Case IH Farmall 55C.
- Which has more loader lift capacity, the Case IH Farmall 55C or the Case IH Farmall 65C?
- The Case IH Farmall 65C leads on loader lift at 2,734 lb lb, compared to 2,500 lb lb for the Case IH Farmall 55C.
- Which has more three-point hitch lift capacity, the Case IH Farmall 55C or the Case IH Farmall 65C?
- The Case IH Farmall 65C leads on 3-pt lift (24 in) at 3,956 lb lb, compared to 2,469 lb lb for the Case IH Farmall 55C.
