Case IH Farmall 55C vs TYM 5520C

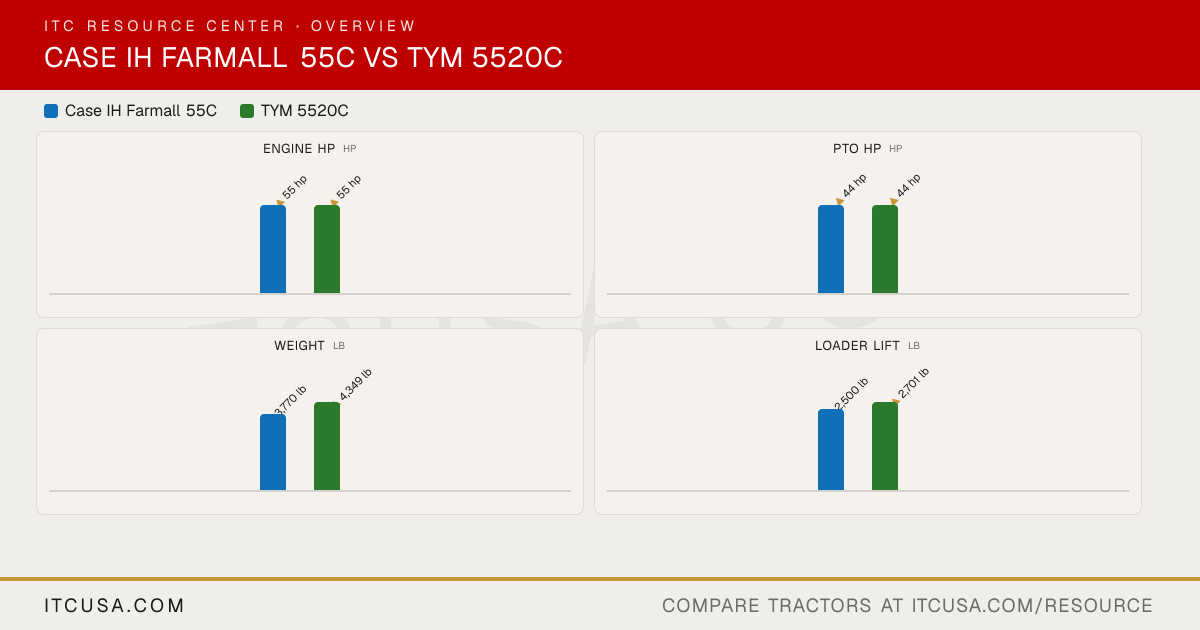

Across 9 measurable specs, the TYM 5520C leads 5 categories to 2 (2 tied). Machine pages: Case IH Farmall 55C and TYM 5520C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 55C	TYM5520C

▶Engine
Engine Manufacturer	LS Mtron	TYM
Engine Model	L3C19-T	T2300T3
Engine Type	Diesel, 3-cylinder, turbocharged	4-cylinder, turbocharged diesel
No. of Cylinders	3	4
Displacement	116 in³	139.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	55 hp	55 hp
PTO Power	44 hp	44 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid cooled
Air Cleaner	Replaceable dry element	Dry element
Fuel System	Common rail direct injection	IDI (indirect injection)
Alternator	70 A	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Implement Flow	8.2 gpm	11.4 gpm
Steering Flow	5.3 gpm	5.2 gpm
Total Hydraulic Flow	Not Published	16.5 gpm
Overall Hydraulic Pump Flow	Not Published	16.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	4
No. of Optional Remote Valves	2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	10.5 gal	11.8 gal
Coolant Capacity	Not Published	8.3 qt
Crankcase Capacity	Not Published	4.8 qt
Transmission / Hydraulic System Capacity	Not Published	5520C: 10.3 gal; 5520CH: 11.1 gal
Front Axle Fluid Capacity	Not Published	6.8 qt
▶PTO & Hitch
PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540/750 rpm
Mid-PTO Availability	Optional, 2000 rpm	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	2,756 lb	3,306 lb
Hitch Lift Capacity (at 24”)	2,469 lb	2,425 lb
Lift Control Type	Mechanical draft control (MDC)	Position control
▶Transmission & Drivetrain
Transmission Type	3-range hydrostatic (HST)	5520C: Synchromesh; 5520CH: HST
No. of Speeds	infinitely variable, 3 ranges	5520C: F16 x R16; 5520CH: 4-Range
Max Travel Speed (Forward)	17.9 mph	5520C: 16 mph; 5520CH: 19.5 mph
Max Travel Speed (Reverse)	Not Published	5520C: 15.2 mph; 5520CH: 19.5 mph
Clutch	Not Applicable	5520C: Dry single type; 5520CH: N/A (HST)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Standard differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	4WD (selectable 2WD/4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	128.1 in	127.4 in
Overall Width	69.1 in	64.9 in
Wheelbase	73.2 in	71.1 in
Ground Clearance	Not Published	15.5 in
Min. Turn Radius without Brakes	Not Published	L: 128.7 in; R: 126.0 in
Height to Top of ROPS	97.1 in	Not Published
Height to Top of ROPS (folded)	78.6 in	Not Published
Height to Top of Cab Model	93.3 in	97 in
▶Weight
Tractor Weight (Base)	3,770 lb	4,349 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	9.5-16	9.5-16
R1 Agricultural - Rear	13.6-24	13.6-26
R3 Turf - Front	28x8.50-15	27x8.5-15 / 29x12.5-15
R3 Turf - Rear	41x14.00-20	41x14-20 / 44x18-20
R4 Industrial - Front	12-16.5	12-16.5
R4 Industrial - Rear	17.5L-24	17.5Lx24
▶Loader & Attachments
Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L360A)	BL200C: Quick attach mechanism
Loader Model	L360A	BL200C
Loader Lift Height	112 in	BL200C: 106.6 in
Loader Lift Capacity (Full Height)	2,500 lb	BL200C: 2,701 lb
Loader Breakout Force	3,114 lbf	BL200C: 3,660 lb
▶Warranty
Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 TYM Legacy Branson 20 Series Fuel Tank Guard $249.99 TYM Legacy Branson 20 Series Hydraulic Valve Guard $249.99

Find a Case IH dealer near you→Find a TYM dealer near you→

Case IH Farmall 55C vs TYM 5520C: Quick Answers

Which has more horsepower, the Case IH Farmall 55C or the TYM 5520C?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 55C or the TYM 5520C?

They are effectively tied: both machines are rated at 44 hp hp for pto hp.

Which is heavier, the Case IH Farmall 55C or the TYM 5520C?

The TYM 5520C leads on weight at 4,349 lb lb, compared to 3,770 lb lb for the Case IH Farmall 55C.

Which has more loader lift capacity, the Case IH Farmall 55C or the TYM 5520C?

The TYM 5520C leads on loader lift at 2,701 lb lb, compared to 2,500 lb lb for the Case IH Farmall 55C.

Which has more three-point hitch lift capacity, the Case IH Farmall 55C or the TYM 5520C?

The Case IH Farmall 55C leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 2,425 lb lb for the TYM 5520C.
