Case IH Farmall 55C vs TYM T574
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the TYM T574 leads 5 categories to 3 (1 tied). Machine pages: Case IH Farmall 55C and TYM T574.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

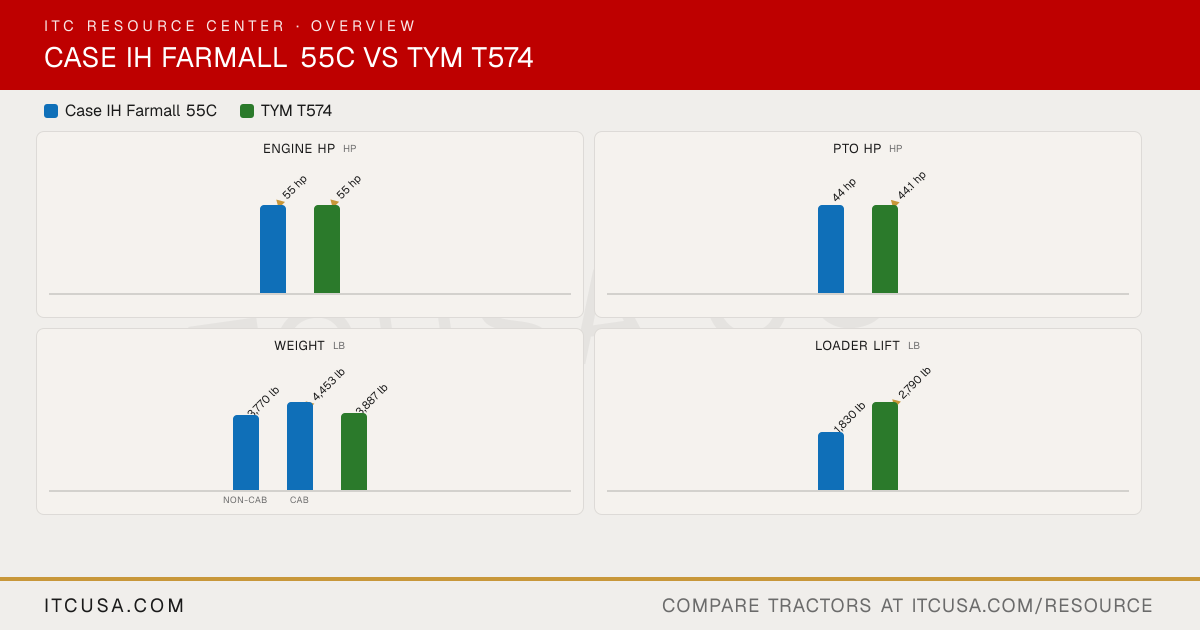

Category Verdict
| Spec | Case IH Farmall 55C | TYM T574 |
|---|---|---|
| Engine HP (hp) | 55 hp | 55 hp |
| PTO HP (hp) | 44 hp | ▲ 44.1 hp |
| Weight (lb) | ▲ 4,453 lb | 3,887 lb |
| Loader Lift (lb) | 1,830 lb | ▲ 2,790 lb |
| 3-Pt Lift (24 in) (lb) | 2,756 lb | ▲ 3,051 lb |
| Lift Height (in) | ▲ 112 in | 109.4 in |
| Breakout Force (lbf) | 3,114 lbf | ▲ 5,316 lbf |
| Hydraulic Flow (gpm) | ▲ 13.5 gpm | 11.9 gpm |
| Travel Speed (mph) | 17.9 mph | ▲ 18.6 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 55C | TYMT574 |
|---|
| Engine Manufacturer | LS Mtron | TYM |
|---|---|---|
| Engine Model | L3C19-T | T2300T2 |
| Engine Type | Diesel, 3-cylinder, turbocharged | 4-cylinder, turbocharged, liquid-cooled diesel |
| No. of Cylinders | 3 | 4 |
| Displacement | 115.9 in³ | 139.5 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 55 hp | 55 hp |
| PTO Power | 44 hp | 44.1 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Replaceable dry element | Single dry |
| Fuel System | Common rail direct injection | IDI |
| Alternator | 70 A | 70 A, 12 V |
Case IH Farmall 55C vs TYM T574: Quick Answers
- Which has more horsepower, the Case IH Farmall 55C or the TYM T574?
- They are effectively tied: both machines are rated at 55 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall 55C or the TYM T574?
- The TYM T574 leads on pto hp at 44.1 hp hp, compared to 44 hp hp for the Case IH Farmall 55C.
- Which is heavier, the Case IH Farmall 55C or the TYM T574?
- The Case IH Farmall 55C leads on weight at 4,453 lb lb, compared to 3,887 lb lb for the TYM T574.
- Which has more loader lift capacity, the Case IH Farmall 55C or the TYM T574?
- The TYM T574 leads on loader lift at 2,790 lb lb, compared to 1,830 lb lb for the Case IH Farmall 55C.
- Which has more three-point hitch lift capacity, the Case IH Farmall 55C or the TYM T574?
- The TYM T574 leads on 3-pt lift (24 in) at 3,051 lb lb, compared to 2,756 lb lb for the Case IH Farmall 55C.
