Case IH Farmall 55C Gear Cab vs Case IH Farmall 60A
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Case IH Farmall 60A leads 6 categories to 2. Machine pages: Case IH Farmall 55C Gear Cab and Case IH Farmall 60A.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

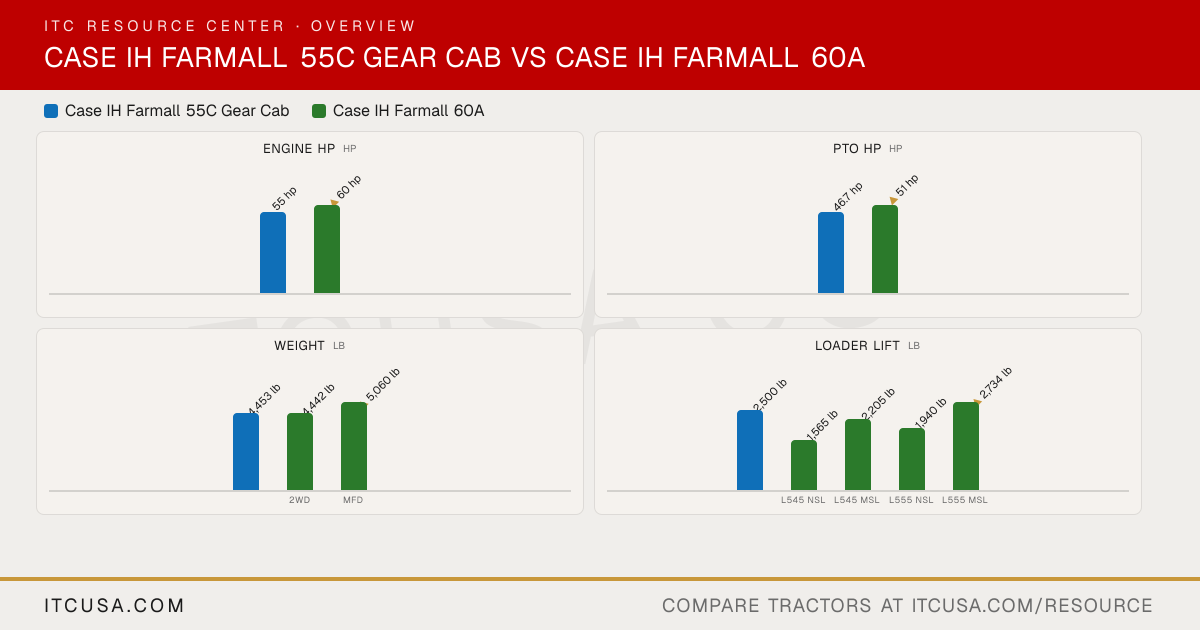

Category Verdict
| Spec | Case IH Farmall 55C Gear Cab | Case IH Farmall 60A |
|---|---|---|
| Engine HP (hp) | 55 hp | ▲ 60 hp |
| PTO HP (hp) | 46.7 hp | ▲ 51 hp |
| Weight (lb) | 4,453 lb | ▲ 5,060 lb |
| Loader Lift (lb) | 1,830 lb | ▲ 2,734 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,756 lb | 2,701 lb |
| Lift Height (in) | ▲ 112 in | 106 in |
| Breakout Force (lbf) | 3,114 lbf | ▲ 3,527 lbf |
| Hydraulic Flow (gpm) | 12.4 gpm | ▲ 17.4 gpm |
| Travel Speed (mph) | 16.9 mph | n/a |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 55C Gear Cab | Case IHFarmall 60A |
|---|
| Engine Manufacturer | LS Mtron | FPT |
|---|---|---|
| Engine Model | L3C19-T | R 753 IE4 |
| Engine Type | Diesel, 3-cylinder, turbocharged | 3-cylinder, FPT turbocharged & aftercooled |
| No. of Cylinders | 3 | 3 |
| Displacement | 115.9 in³ | 135.9 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 55 hp | 60 hp |
| PTO Power | 46.7 hp | 51 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Replaceable dry element | Dry |
| Fuel System | Not Published | Electronic high pressure common rail |
| Alternator | 70 A | 75 A |
Case IH Farmall 55C Gear Cab vs Case IH Farmall 60A: Quick Answers
- Which has more horsepower, the Case IH Farmall 55C Gear Cab or the Case IH Farmall 60A?
- The Case IH Farmall 60A leads on engine hp at 60 hp hp, compared to 55 hp hp for the Case IH Farmall 55C Gear Cab.
- Which has more PTO horsepower, the Case IH Farmall 55C Gear Cab or the Case IH Farmall 60A?
- The Case IH Farmall 60A leads on pto hp at 51 hp hp, compared to 46.7 hp hp for the Case IH Farmall 55C Gear Cab.
- Which is heavier, the Case IH Farmall 55C Gear Cab or the Case IH Farmall 60A?
- The Case IH Farmall 60A leads on weight at 5,060 lb lb, compared to 4,453 lb lb for the Case IH Farmall 55C Gear Cab.
- Which has more loader lift capacity, the Case IH Farmall 55C Gear Cab or the Case IH Farmall 60A?
- The Case IH Farmall 60A leads on loader lift at 2,734 lb lb, compared to 1,830 lb lb for the Case IH Farmall 55C Gear Cab.
- Which has more three-point hitch lift capacity, the Case IH Farmall 55C Gear Cab or the Case IH Farmall 60A?
- The Case IH Farmall 55C Gear Cab leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,701 lb lb for the Case IH Farmall 60A.
