| Engine Manufacturer | FPT | John Deere |
|---|
| Engine Model | S8000 | 3029T |
|---|
| Engine Type | 3-cylinder, FPT turbocharged & aftercooled diesel, Tier 4 B/Final | 3-cylinder liquid-cooled diesel, turbocharged, direct injection |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 178.8 in³ | 179 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2400 rpm |
|---|

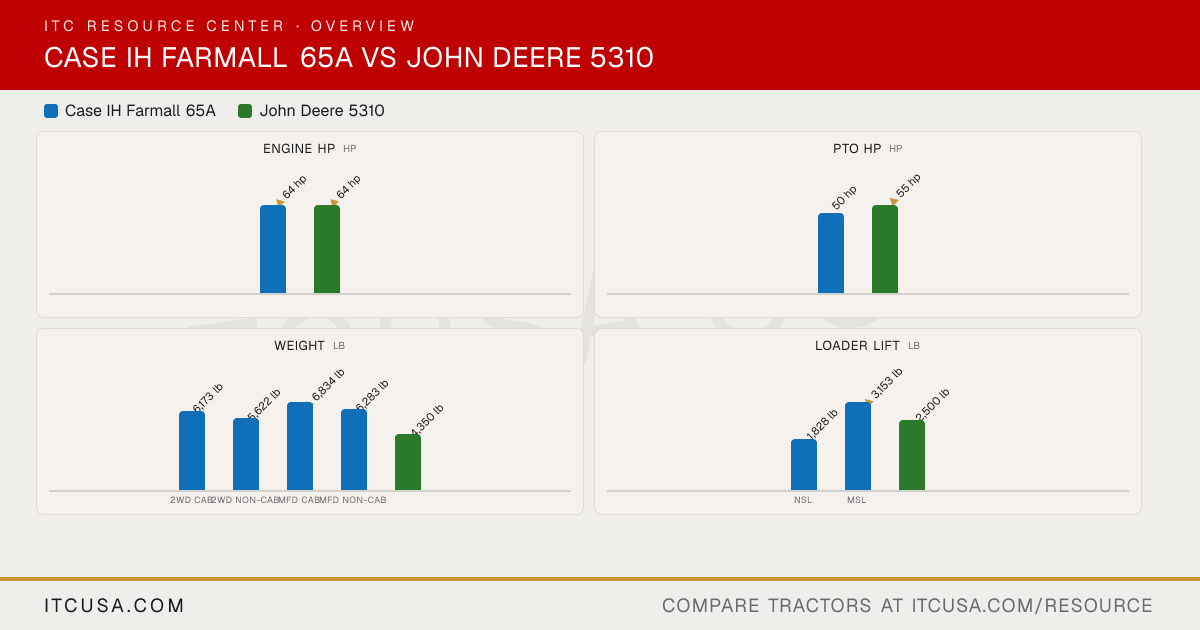

| Engine Power (Gross) | 64 hp | 64 hp |
|---|
| PTO Power | 50 hp | 55 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Dry type with safety element |
|---|
| Fuel System | Electronic high pressure common rail | Direct injection, rotary injection pump with electric shutoff |
|---|
| Alternator | 120 A | 40 A |
|---|
|
|---|
| Pump Type | Fixed displacement | Tandem gear pump |
|---|
| Implement Flow | 12.6 gpm | 11.4 gpm |
|---|
| Steering Flow | Not Published | 6.8 gpm |
|---|
| Total Hydraulic Flow | Not Published | 18.2 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 18.2 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | 11.4 gpm |
|---|
| No. of Standard Remote Valves | 2 | Not Published |
|---|
| No. of Optional Remote Valves | 3 | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 21.7 gal | 18 gal (open station); 23 gal (cab) |
|---|
| Coolant Capacity | Not Published | 10 qt |
|---|
| Crankcase Capacity | Not Published | 9 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch) |
|---|
| Front Axle Fluid Capacity | Not Published | 5.2 qt (MFWD axle housing); 0.6 qt (each wheel hub); 5.7 qt (MFWD assembly) |
|---|
|
|---|
| PTO Type | Independent | Fully independent 540 rpm PTO; shiftable 540/540E with SyncShuttle transmission; lever operated clutch |
|---|
| PTO Rear | 540 (standard); 540/540E (optional) | 540 rpm (at 2400 engine rpm); 540E (at 1700 engine rpm, SyncShuttle) |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I/II | Category I and II |
|---|
| Hitch Lift Capacity | 5,952 lb (optional hitch 6,614 lb) | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 4,300 lb (optional hitch 4,740 lb) | 3374 lb |
|---|
| Lift Control Type | Mechanical Draft Control (MDC), top link sensing | Position and depth control, top link draft sensing |
|---|
|
|---|
| Transmission Type | MFD: 12x12 power shuttle (wet clutch); 2WD: 8x8 mechanical shuttle (dry clutch); optional 12x12 mechanical shuttle (dry clutch) or 12x12 with creeper (20x20) | CollarShift standard; SyncShuttle optional; PowrReverser optional |
|---|
| No. of Speeds | MFD: 12F/12R; 2WD: 8F/8R; optional 12F/12R mechanical or 20F/20R creeper | 9 forward, 3 reverse (CollarShift and SyncShuttle); 12 forward, 12 reverse (PowrReverser) |
|---|
| Max Travel Speed (Forward) | 18.6 mph | 15.62 mph (CollarShift and SyncShuttle, gear C-3); 15.52 mph (PowrReverser, gear C-4) |
|---|
| Max Travel Speed (Reverse) | Not Published | 13.33 mph (CollarShift and SyncShuttle, gear C-R); 17.95 mph (PowrReverser, gear C-4 reverse) |
|---|
| Clutch | MFD: wet clutch (12x12 power shuttle); 2WD: dry clutch (8x8 mechanical shuttle) | Dual dry clutch (CollarShift and SyncShuttle); multi-disk wet clutch (PowrReverser) |
|---|
| Differential Lock & Limited Slip Options | Mechanical rear differential lock; MFD engagement electrohydraulic; limited-slip MFD front axle | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Two-post ROPS; cab optional; two-wheel drive or MFWD |
|---|
| Steering | Hydrostatic | Hydrostatic power steering |
|---|
| Brakes | Wet disc | Wet disk, self-equalizing, self-adjusting |
|---|
| Seat Suspension & Adjustability | Mechanical contoured seat, adjustable; optional air-ride seat | Not Published |
|---|
| Front Axle Type | 2WD or MFD with limited slip | Two-wheel drive or mechanical front wheel drive (MFWD) |
|---|
| Front Axle Rating | Not Published | 2720 to 4700 lb (2WD, by front tire, no loader); 2760 to 4620 lb (MFWD, by front tire, without loader) |
|---|
| Drawbar Capacity | Not Published | 1675 lb |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 155.3 in | 123.6 in (2WD); 128.1 in (MFWD) (w/o 3P, less hitch, drawbar and front weights) (without 3-point hitch) |
|---|
| Overall Width | Not Published | 66.7 in |
|---|
| Wheelbase | 2WD: 82.1 in; MFD: 83.6 in | 80.7 in |
|---|
| Ground Clearance | Not Published | 18.1 in (2WD front axle); 14.8 in (MFWD front axle); 15.8 in (2WD drawbar); 16.3 in (MFWD drawbar) |
|---|
| Min. Turn Radius without Brakes | Not Published | 11.3 ft (2WD); 12.5 ft (MFWD engaged); 11.3 ft (MFWD disengaged) |
|---|
| Height to Top of ROPS | Not Published | 88.7 in |
|---|
| Height to Top of ROPS (folded) | Not Published | 75.5 in |
|---|
| Height to Top of Cab Model | 2WD: 98 in; MFD: 100 in | 97.9 in |
|---|
|
|---|
| Tractor Weight (Base) | 2WD Cab: 6,173 lb; 2WD Non-cab: 5,622 lb; MFD Cab: 6,834 lb; MFD Non-cab: 6,283 lb | 4350 lb (2WD); 4750 lb (MFWD); add approximately 1000 lb with cab |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R-1 (ag tread) bias ply standard; optional R-1W (ag tread) radial | Front: 6.50-16, 7.50-16, 9.5L-15, 27/9.5L-15, 11L-15 (2WD); 9.5L-16, 8.3-24, 9.5-24, 10.5/80-18, 11.2-24 (MFWD). Rear: 13.6-28, 14.9-24, 14.9-28, 16.9-24, 16.9-28, 16.9-30, 18.4-16.1 |
|---|
| R1 Agricultural - Front | 2WD: 9.5L-15; MFD: 11.2x24 | 7.50-16 (2WD); 9.5-24 (MFWD) |
|---|
| R1 Agricultural - Rear | 2WD: 16.9R28; MFD: 16.9x30 (optional 16.9R28) | 14.9-28 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | L610 | 521; 541; 541 self-leveling |
|---|
| Loader Lift Height | 130.3 in | 521: 122 in; 541: 126 in; 541 self-leveling: 130 in |
|---|
| Loader Lift Capacity (Full Height) | NSL: 1,828 lb; MSL: 3,153 lb | 521: 2500 lb; 541: 2500 lb; 541 self-leveling: 2800 lb (full at pin) |
|---|
| Loader Breakout Force | Not Published | 521: 3485 lbf; 541: 3484 lbf; 541 self-leveling: 4125 lbf (at pin) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
