Across 7 measurable specs, the Case IH Farmall 75C leads 2 categories to 0 (5 tied). Machine pages: Case IH Farmall 65C and Case IH Farmall 75C.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 65C | Case IH Farmall 75C |
|---|
| Engine HP (hp) | 64 hp | ▲ 74 hp |
| PTO HP (hp) | 50 hp | ▲ 64 hp |
| Loader Lift (lb) | 2,734 lb | 2,734 lb |
| 3-Pt Lift (24 in) (lb) | 3,664 lb | 3,664 lb |
| Lift Height (in) | 105 in | 105 in |
| Breakout Force (lbf) | 3,527 lbf | 3,527 lbf |
| Hydraulic Flow (gpm) | 12.5 gpm | 12.5 gpm |

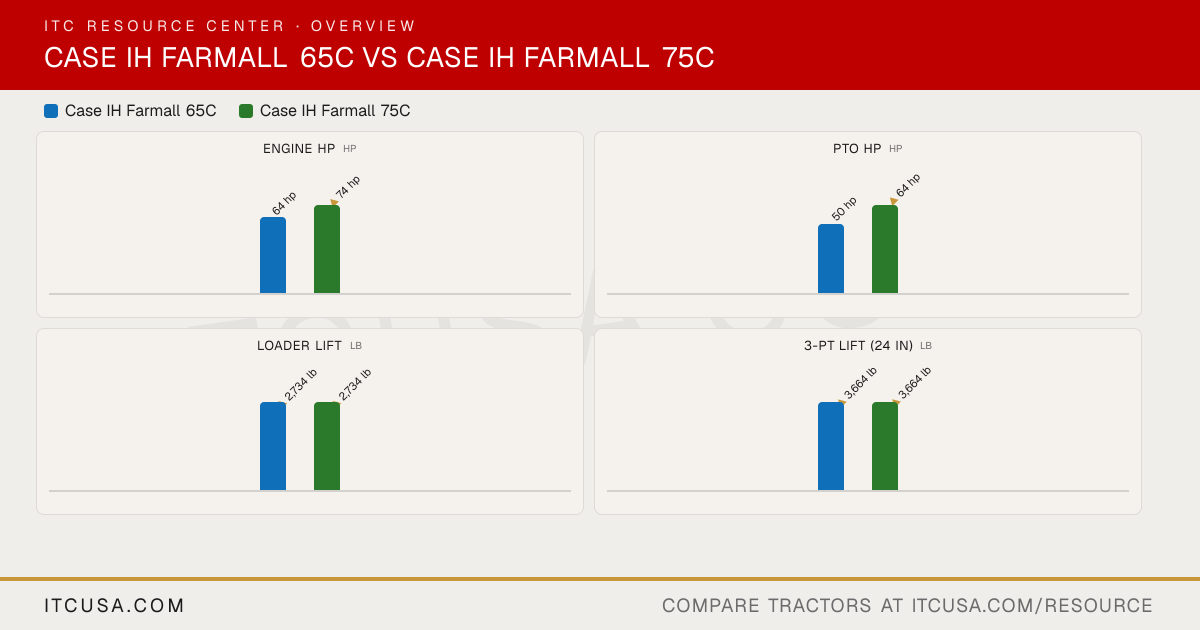

The headline numbers at a glance.
Case IH Farmall 65CCase IH Farmall 75C
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 65C | Case IHFarmall 75C |
|---|
|
|---|
| PTO Power | 50 hp | 64 hp |
|---|
| Alternator | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Engine Type | Diesel, turbocharged | Diesel, turbocharged |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Displacement | 207.5 in³ | 207.5 in³ |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Rated Engine Speed | 2300 rpm | 2300 rpm |
|---|
| Cooling System Type | Not Published | Not Published |
|---|
| Engine Manufacturer | FPT Industrial | FPT Industrial |
|---|
| Engine Power (Gross) | 64 hp | 74 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
|
|---|
| Weight with ROPS and Loader | Not Applicable | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Steering Flow | Not Published | Not Published |
|---|
| Implement Flow | 12.5 gpm | 12.5 gpm |
|---|
| Total Hydraulic Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | 2 standard / 3 optional | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | 3 | 3 |
|---|
| No. of Standard Remote Valves | 2 | 2 |
|---|
|
|---|
| PTO Rear | 540 rpm (standard) / 540/540E rpm (optional) | 540 / 540/540E |
|---|
| PTO Type | Not Published | Not Published |
|---|
| Lift Control Type | Mechanical draft control (MDC) top link sensing | Mechanical Draft Control (MDC) top link sensing |
|---|
| Hitch Lift Capacity | 3,664 lb @ 24 in behind pin | 3,664 lb @ 24 in behind pin |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I/II | Category 1/2 |
|---|
| Hitch Lift Capacity (at 24”) | 3,664 lb @ 24 in behind pin | 3,664 lb @ 24 in behind pin |
|---|
|
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
|
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Fuel Tank Capacity | 23.8 gal | 23.8 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
|
|---|
| Loader Lift Height | 105 in | 105 in |
|---|
| Loader Breakout Force | 3,527 lb | 3,527 lb |
|---|
| Quick Attach Loader System | Compatible with L565 loader | L565 |
|---|
| Loader Lift Capacity (Full Height) | 2,734 lb | 2,734 lb |
|---|
|
|---|
| Clutch | Wet clutch | Wet clutch |
|---|
| No. of Speeds | 12 forward / 12 reverse | 12F/12R (standard); 8F/8R (optional); creeper option (12x12) |
|---|
| Transmission Type | 12x12 Power shuttle (wet clutch) | 12x12 Power shuttle (wet clutch) (standard); 8x8 Power shuttle (wet clutch) (optional); 12x12 Power shuttle (wet clutch) with creeper (optional) |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical | Mechanical diff lock; HD 2WD or MFD with limited slip |
|---|
|
|---|
| Brakes | Not Published | Not Published |
|---|
| Steering | Not Published | Not Published |
|---|
| Frame Type | Utility chassis (cab, MFD) | Not Published |
|---|
| Front Axle Type | MFD with limited slip | HD 2WD or MFD with limited slip |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
|
|---|
| Wheelbase | 84 in | 86 in (2WD); 84 in (MFD) |
|---|
| Overall Width | Not Published | Not Published |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Applicable | Not Published |
|---|
| Height to Top of Cab Model | 98 in | 98 in |
|---|
| Height to Top of ROPS (folded) | Not Applicable | 77.6 in |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Overall Length with 3-Point Hitch | 151.8 in | 153 in (2WD); 151 in (MFD) |
|---|
Case IH Farmall 65C vs Case IH Farmall 75C: Quick Answers
- Which has more horsepower, the Case IH Farmall 65C or the Case IH Farmall 75C?
- The Case IH Farmall 75C leads on engine hp at 74 hp hp, compared to 64 hp hp for the Case IH Farmall 65C.
- Which has more PTO horsepower, the Case IH Farmall 65C or the Case IH Farmall 75C?
- The Case IH Farmall 75C leads on pto hp at 64 hp hp, compared to 50 hp hp for the Case IH Farmall 65C.
- Which has more loader lift capacity, the Case IH Farmall 65C or the Case IH Farmall 75C?
- They are effectively tied: both machines are rated at 2,734 lb lb for loader lift.
- Which has more three-point hitch lift capacity, the Case IH Farmall 65C or the Case IH Farmall 75C?
- They are effectively tied: both machines are rated at 3,664 lb lb for 3-pt lift (24 in).
