Which has more horsepower, the Case IH Farmall 65C or the LS Tractor MT463C?

The Case IH Farmall 65C leads on engine hp at 64 hp hp, compared to 63 hp hp for the LS Tractor MT463C.

Which has more PTO horsepower, the Case IH Farmall 65C or the LS Tractor MT463C?

The LS Tractor MT463C leads on pto hp at 54.1 hp hp, compared to 50 hp hp for the Case IH Farmall 65C.

Which has more loader lift capacity, the Case IH Farmall 65C or the LS Tractor MT463C?

The LS Tractor MT463C leads on loader lift at 3,488 lb lb, compared to 2,734 lb lb for the Case IH Farmall 65C.

Which has more three-point hitch lift capacity, the Case IH Farmall 65C or the LS Tractor MT463C?

The Case IH Farmall 65C leads on 3-pt lift (24 in) at 3,664 lb lb, compared to 3,483 lb lb for the LS Tractor MT463C.

Case IH Farmall 65C vs LS Tractor MT463C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the LS Tractor MT463C leads 4 categories to 2. Machine pages: Case IH Farmall 65C and LS Tractor MT463C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 65C	LS Tractor MT463C
Engine HP (hp)	▲ 64 hp	63 hp
PTO HP (hp)	50 hp	▲ 54.1 hp
Weight (lb)	—	6,966 lb
Loader Lift (lb)	2,734 lb	▲ 3,488 lb
3-Pt Lift (24 in) (lb)	▲ 3,664 lb	3,483 lb
Lift Height (in)	105 in	▲ 132.9 in
Breakout Force (lbf)	3,527 lbf	—
Hydraulic Flow (gpm)	12.5 gpm	▲ 21.7 gpm

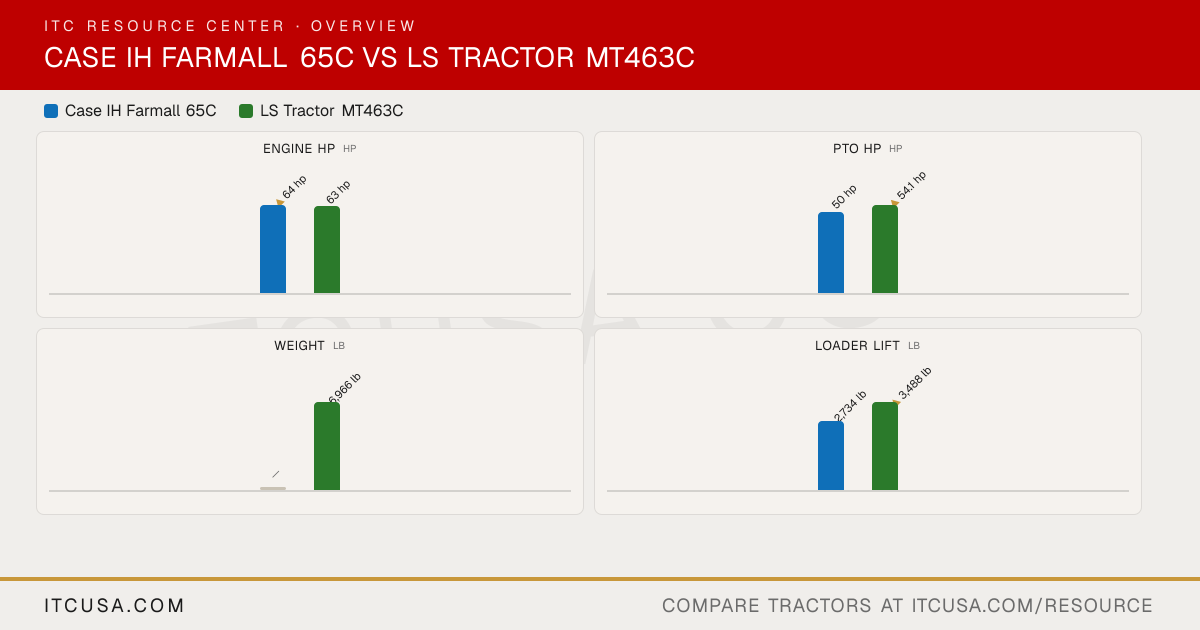

The headline numbers at a glance.

Case IH Farmall 65CLS Tractor MT463C

Engine HPhp

▲64 hp

63 hp

PTO HPhp

50 hp

▲54.1 hp

Weightlb

—

6,966 lb

Loader Liftlb

2,734 lb

▲3,488 lb

3-Pt Lift (24 in)lb

▲3,664 lb

3,483 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 65C	LS TractorMT463C


PTO Power	50 hp	54.1 hp
Alternator	Not Published	70 A, 12 V
Air Cleaner	Not Published	Dry
Engine Type	Diesel, turbocharged	In-line vertical, water cooled 4-cycle diesel, CRDI
Fuel System	Not Published	Delphi, CRDI
Displacement	207.5 in³	152.9 in³
No. of Cylinders	4	4
Rated Engine Speed	2300 rpm	2500 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	FPT Industrial	LS Mtron
Engine Power (Gross)	64 hp	63 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Applicable	Not Applicable
Weight with Cab and Loader	Not Published	6,966 lb

Warranty Length & Coverage	Not Published	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Not Published	Gear type, engine drive
Steering Flow	Not Published	6.8 gpm
Implement Flow	12.5 gpm	14.9 gpm
Total Hydraulic Flow	Not Published	21.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	2 standard / 3 optional	Not Published
Overall Hydraulic Pump Flow	Not Published	21.7 gpm
No. of Optional Remote Valves	3	Not Published
No. of Standard Remote Valves	2	2 Pairs (Front), 2 Pairs (Rear)

PTO Rear	540 rpm (standard) / 540/540E rpm (optional)	540 / 540E
PTO Type	Not Published	Independent
Lift Control Type	Mechanical draft control (MDC) top link sensing	Position & Draft
Hitch Lift Capacity	3,664 lb @ 24 in behind pin	4,079 lbs
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I/II	Category II
Hitch Lift Capacity (at 24”)	3,664 lb @ 24 in behind pin	3,483 lbs

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Multiple options available (Standard Ag, Industrial, Large Ag, R14)
R4 Industrial - Rear	Not Published	19.5LX24
R4 Industrial - Front	Not Published	10.5/80X18
R1 Agricultural - Rear	Not Published	16.9-30
R1 Agricultural - Front	Not Published	11.2-24

Coolant Capacity	Not Published	3.0 gal
Crankcase Capacity	Not Published	1.8 gal
Fuel Tank Capacity	23.8 gal	24.3 gal
Front Axle Fluid Capacity	Not Published	2.3 gal
Transmission / Hydraulic System Capacity	Not Published	16.5 gal

Loader Lift Height	105 in	132.9 in
Loader Breakout Force	3,527 lb	Not Published
Quick Attach Loader System	Compatible with L565 loader	LL5001: Standard Quick-Attach, Skid-Steer Compatible (SSQA)
Loader Lift Capacity (Full Height)	2,734 lb	3,488 lb

Clutch	Wet clutch	Dry single clutch
No. of Speeds	12 forward / 12 reverse	F16 X R16
Transmission Type	12x12 Power shuttle (wet clutch)	Synchro Shuttle
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical	Mechanical differential lock (pedal)

Brakes	Not Published	Wet, Multi-disc
Steering	Not Published	Hydrostatic Power Steering
Frame Type	Utility chassis (cab, MFD)	Not Published
Front Axle Type	MFD with limited slip	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Seat With Suspension & Armrest

Wheelbase	84 in	83.1 in
Overall Width	Not Published	72.6 in
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	Not Applicable	Not Applicable
Height to Top of Cab Model	98 in	105.4 in
Height to Top of ROPS (folded)	Not Applicable	Not Applicable
Min. Turn Radius without Brakes	Not Published	12.8 ft (3.9 m)
Overall Length with 3-Point Hitch	151.8 in	154 in

Case IH Farmall 65C vs LS Tractor MT463C: Quick Answers

Which has more horsepower, the Case IH Farmall 65C or the LS Tractor MT463C?: The Case IH Farmall 65C leads on engine hp at 64 hp hp, compared to 63 hp hp for the LS Tractor MT463C.
Which has more PTO horsepower, the Case IH Farmall 65C or the LS Tractor MT463C?: The LS Tractor MT463C leads on pto hp at 54.1 hp hp, compared to 50 hp hp for the Case IH Farmall 65C.
Which has more loader lift capacity, the Case IH Farmall 65C or the LS Tractor MT463C?: The LS Tractor MT463C leads on loader lift at 3,488 lb lb, compared to 2,734 lb lb for the Case IH Farmall 65C.
Which has more three-point hitch lift capacity, the Case IH Farmall 65C or the LS Tractor MT463C?: The Case IH Farmall 65C leads on 3-pt lift (24 in) at 3,664 lb lb, compared to 3,483 lb lb for the LS Tractor MT463C.
