Across 6 measurable specs, the New Holland Workmaster 65 leads 3 categories to 1 (2 tied). Machine pages: Case IH Farmall 65C 2WD and New Holland Workmaster 65.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 65C 2WD | New Holland Workmaster 65 |
|---|
| Engine HP (hp) | 64 hp | 64 hp |
| PTO HP (hp) | 50 hp | 50 hp |
| Weight (lb) | 6,063 lb | n/a |
| Loader Lift (lb) | 2,734 lb | ▲ 3,153 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,956 lb | 3,500 lb |
| Lift Height (in) | 105 in | ▲ 131.3 in |
| Breakout Force (lbf) | 3,527 lbf | n/a |
| Hydraulic Flow (gpm) | 12.9 gpm | ▲ 20.2 gpm |
| Travel Speed (mph) | n/a | 25 mph |

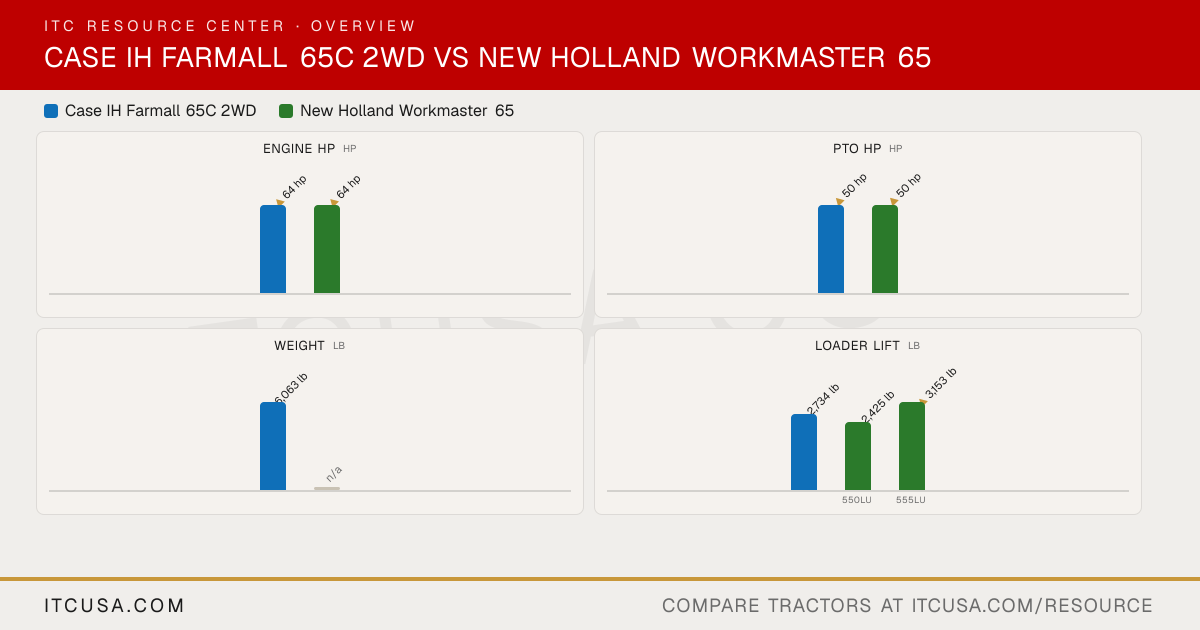

The headline numbers at a glance.
Case IH Farmall 65C 2WDNew Holland Workmaster 65
ITCUSA.COMITCUSA.COMITCUSA.COM
Loader Liftlb
2,734 lb
2,425 lb
▲3,153 lb
550LU555LU
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 65C 2WD | New HollandWorkmaster 65 |
|---|
|
|---|
| Engine Manufacturer | FPT | FPT Industrial |
|---|
| Engine Model | Not Published | n/a |
|---|
| Engine Type | Turbocharged diesel | Turbocharged 3-cylinder diesel |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Displacement | 207 in³ | 179 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2300 rpm |
|---|
| Engine Power (Gross) | 64 hp | 64 hp |
|---|
| PTO Power | 50 hp | 50 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4B CEGR + DOC (no DPF; no regeneration) |
|---|
| Cooling System Type | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Common rail | High-pressure common rail |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Dual gear pumps | Dual pumps |
|---|
| Implement Flow | 12.9 gpm | 12.6 gpm |
|---|
| Steering Flow | 7.3 gpm | 7.6 gpm |
|---|
| Total Hydraulic Flow | Not Published | 20.2 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 20.2 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 | 2 |
|---|
| No. of Optional Remote Valves | 3 | 1 |
|---|
|
|---|
| Fuel Tank Capacity | 23.8 gal | Not Published |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Hydraulic wet clutch |
|---|
| PTO Rear | 540 rpm (540/540E optional) | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I/II | Not Published |
|---|
| Hitch Lift Capacity | Not Published | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 3,956 lb | 3,500 lb |
|---|
| Lift Control Type | Mechanical draft control (MDC), top link sensing | Lift-O-Matic |
|---|
|
|---|
| Transmission Type | Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) | 12x12 power shuttle |
|---|
| No. of Speeds | Standard: 12 forward / 12 reverse; Optional creeper: 20 forward / 20 reverse | 12F/12R |
|---|
| Max Travel Speed (Forward) | Not Published | 25 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Wet clutch | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical rear differential lock; limited-slip MFD front axle | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Not Published |
|---|
| Brakes | Hydraulic wet disc | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Cloth air-suspension seat |
|---|
| Front Axle Type | 2WD: 2WD front axle; MFD: MFD with limited slip, electrohydraulic engagement | Not Published |
|---|
| Front Axle Rating | Not Published | 6,500 lb dynamic capacity |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 145.8 in | 154.1 in |
|---|
| Overall Width | 76 in | Not Published |
|---|
| Wheelbase | 2WD: 85.8 in; MFD: 84 in | 83.6 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Published | Not Applicable |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Applicable |
|---|
| Height to Top of Cab Model | 98 in | 100.2 in |
|---|
|
|---|
| Tractor Weight (Base) | 6,063 lb | n/a |
|---|
| Weight with ROPS and Loader | Not Published | Not Applicable |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 18.4R34 rear | Not Published |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | 550LU, 555LU: 72 in bucket; SSL or Euro-style quick attach |
|---|
| Loader Model | L565 | n/a |
|---|
| Loader Lift Height | 105 in | 550LU: 131.3 in; 555LU: 130.0 in |
|---|
| Loader Lift Capacity (Full Height) | 2,734 lb | 550LU: 2,425 lb; 555LU: 3,153 lb |
|---|
| Loader Breakout Force | 3,527 lb | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
Case IH Farmall 65C 2WD vs New Holland Workmaster 65: Quick Answers
- Which has more horsepower, the Case IH Farmall 65C 2WD or the New Holland Workmaster 65?
- They are effectively tied: both machines are rated at 64 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall 65C 2WD or the New Holland Workmaster 65?
- They are effectively tied: both machines are rated at 50 hp hp for pto hp.
- Which has more loader lift capacity, the Case IH Farmall 65C 2WD or the New Holland Workmaster 65?
- The New Holland Workmaster 65 leads on loader lift at 3,153 lb lb, compared to 2,734 lb lb for the Case IH Farmall 65C 2WD.
- Which has more three-point hitch lift capacity, the Case IH Farmall 65C 2WD or the New Holland Workmaster 65?
- The Case IH Farmall 65C 2WD leads on 3-pt lift (24 in) at 3,956 lb lb, compared to 3,500 lb lb for the New Holland Workmaster 65.
