Which has more horsepower, the Case IH Farmall 75A or the John Deere 5075M?

The Case IH Farmall 75A leads on engine hp at 74 hp hp, compared to 73.9 hp hp for the John Deere 5075M.

Which has more PTO horsepower, the Case IH Farmall 75A or the John Deere 5075M?

The Case IH Farmall 75A leads on pto hp at 60 hp hp, compared to 57.7 hp hp for the John Deere 5075M.

Which has more three-point hitch lift capacity, the Case IH Farmall 75A or the John Deere 5075M?

The John Deere 5075M leads on 3-pt lift (24 in) at 5,161 lb lb, compared to 4,299 lb lb for the Case IH Farmall 75A.

Case IH Farmall 75A vs John Deere 5075M

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 4 measurable specs, this matchup is a dead heat: 2 categories to the Case IH Farmall 75A, 2 to the John Deere 5075M. Machine pages: Case IH Farmall 75A and John Deere 5075M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 75A	John Deere 5075M
Engine HP (hp)	▲ 74 hp	73.9 hp
PTO HP (hp)	▲ 60 hp	57.7 hp
3-Pt Lift (24 in) (lb)	4,299 lb	▲ 5,161 lb
Hydraulic Flow (gpm)	12.6 gpm	▲ 24.7 gpm

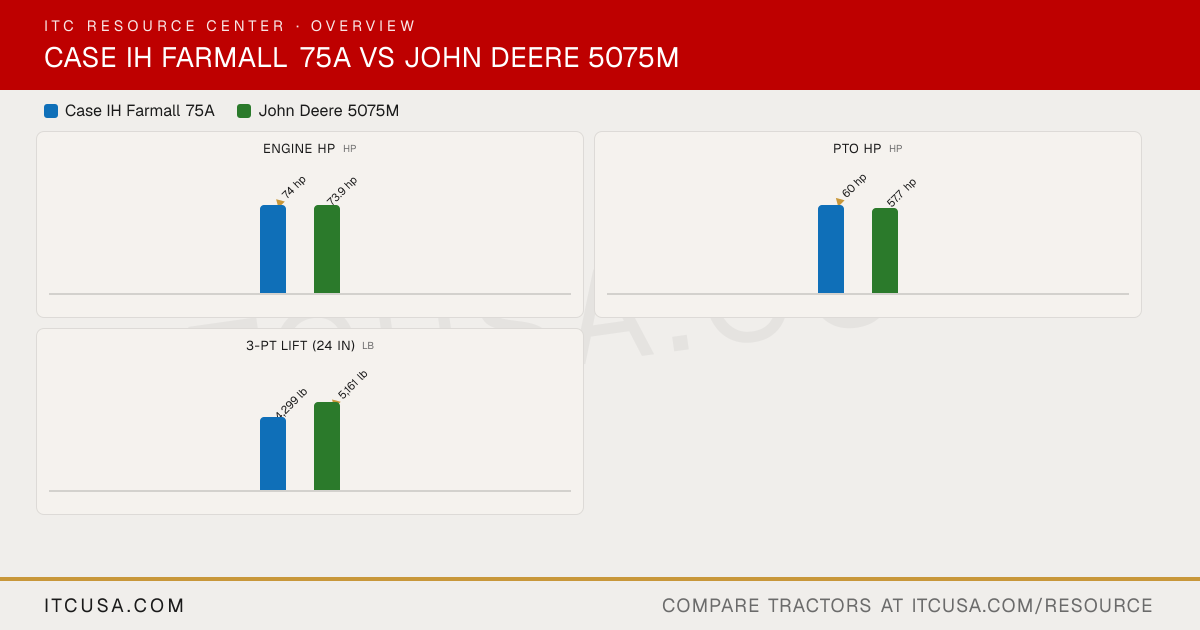

The headline numbers at a glance.

Case IH Farmall 75AJohn Deere 5075M

Engine HPhp

▲74 hp

73.9 hp

PTO HPhp

▲60 hp

57.7 hp

Weightlb

—

Loader Liftlb

—

3-Pt Lift (24 in)lb

4,299 lb

▲5,161 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 75A	John Deere5075M


PTO Power	60 hp	57.7 hp @ 100 rpm
Alternator	Not Published	90 A
Air Cleaner	Not Published	Dry air cleaner
Engine Type	Diesel, turbocharged	Diesel, turbocharged and air-to-air aftercooled
Fuel System	Not Published	High Pressure Common Rail (HPCR) electronic fuel injection
Displacement	177 in³	177 in³
No. of Cylinders	3	3
Rated Engine Speed	2300 rpm	2200 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	FPT Industrial	John Deere PowerTech 3029 EWR
Engine Power (Gross)	74 hp	73.9 hp @ 200 rpm
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Not Published	Tandem Gear
Steering Flow	Not Published	6.3 gpm
Implement Flow	12.6 gpm	18.4 gpm
Total Hydraulic Flow	Not Published	24.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	24.7 gpm
No. of Optional Remote Valves	3	Up to 1 additional (rear) (max 3 total)
No. of Standard Remote Valves	2	2 (rear)

PTO Rear	540 / 540/540E	540 @2100 engine rpm; 540E @1645 engine rpm; 1000 @2100 engine rpm (if equipped)
PTO Type	Not Published	Independent rear PTO (wet disc clutch, electrohydraulic activation): 540/540E standard; 1000 optional
Lift Control Type	Mechanical Draft Control (MDC) top link sensing	Mechanical or electrohydraulic (draft control)
Hitch Lift Capacity	Not Published	5,305 lb @ hitch ball (standard 2.6 in cylinders); 6,114 lb optional (65 & 3 in cylinders)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1/2	Category II (convertible to Category I)
Hitch Lift Capacity (at 24”)	4,299 lb (standard); 4,740 lb (optional) @ 24 in behind pin	5,161 lb @ 24 in behind lift point (standard); 5,958 lb optional

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	R1 Ag / R3 Turf / R4 Industrial
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	Not Published	OOS: 3.6 gal; Cab: 4.2 gal
Crankcase Capacity	Not Published	2.2 gal
Fuel Tank Capacity	21.7 gal	Cab: 48.2 gal; OOS: 44.6 gal
Front Axle Fluid Capacity	Not Published	Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal
Transmission / Hydraulic System Capacity	Not Published	Open center: 10.4 gal; Closed center: 12.5 gal

Loader Lift Height	Not Published	Not Published
Loader Breakout Force	Not Published	Not Published
Quick Attach Loader System	Not Published	Not Published
Loader Lift Capacity (Full Height)	Not Published	Not Published

Clutch	Dry clutch (8x8 mechanical shuttle); wet clutch (12x12 power shuttle)	Not Published
No. of Speeds	Not Published	16 forward / 16 reverse; 32 forward / 16 reverse (Hi-Lo)
Transmission Type	8x8 mechanical shuttle (dry clutch) (standard); 12x12 power shuttle (wet clutch) or 12x12 with creeper (optional)	PowrReverser 16F/16R or 32F/16R Hi-Lo
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock; MFD engagement electrohydraulic	Not Published

Brakes	Not Published	Hydraulically actuated wet disc brakes
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	MFWD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	6,613 lb max permissible front axle load
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	81.2 in (2WD); 81.8 in (MFD)	92.5 in
Overall Width	Not Published	74.0 in (without fender extension); 85.6 in (with fender extension)
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	Not Published	Not Published
Height to Top of Cab Model	100 in	105.3 in
Height to Top of ROPS (folded)	67.7 in	Not Published
Min. Turn Radius without Brakes	Not Published	157.5 in
Overall Length with 3-Point Hitch	151.8 in	Cab overall length: 157.3 in
