Which has more horsepower, the Case IH Farmall 75A or the LS Tractor MT774CPS?

The Case IH Farmall 75A leads on engine hp at 74 hp hp, compared to 73.7 hp hp for the LS Tractor MT774CPS.

Which has more PTO horsepower, the Case IH Farmall 75A or the LS Tractor MT774CPS?

The LS Tractor MT774CPS leads on pto hp at 65.6 hp hp, compared to 60 hp hp for the Case IH Farmall 75A.

Which has more three-point hitch lift capacity, the Case IH Farmall 75A or the LS Tractor MT774CPS?

The LS Tractor MT774CPS leads on 3-pt lift (24 in) at 5,181 lb lb, compared to 4,299 lb lb for the Case IH Farmall 75A.

Case IH Farmall 75A vs LS Tractor MT774CPS

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 4 measurable specs, the LS Tractor MT774CPS leads 3 categories to 1. Machine pages: Case IH Farmall 75A and LS Tractor MT774CPS.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 75A	LS Tractor MT774CPS
Engine HP (hp)	▲ 74 hp	73.7 hp
PTO HP (hp)	60 hp	▲ 65.6 hp
Weight (lb)	—	9,487 lb
Loader Lift (lb)	—	5,139 lb
3-Pt Lift (24 in) (lb)	4,299 lb	▲ 5,181 lb
Lift Height (in)	—	139.9 in
Breakout Force (lbf)	—	5,313 lbf
Hydraulic Flow (gpm)	12.6 gpm	▲ 21.9 gpm
Travel Speed (mph)	—	20.8 mph

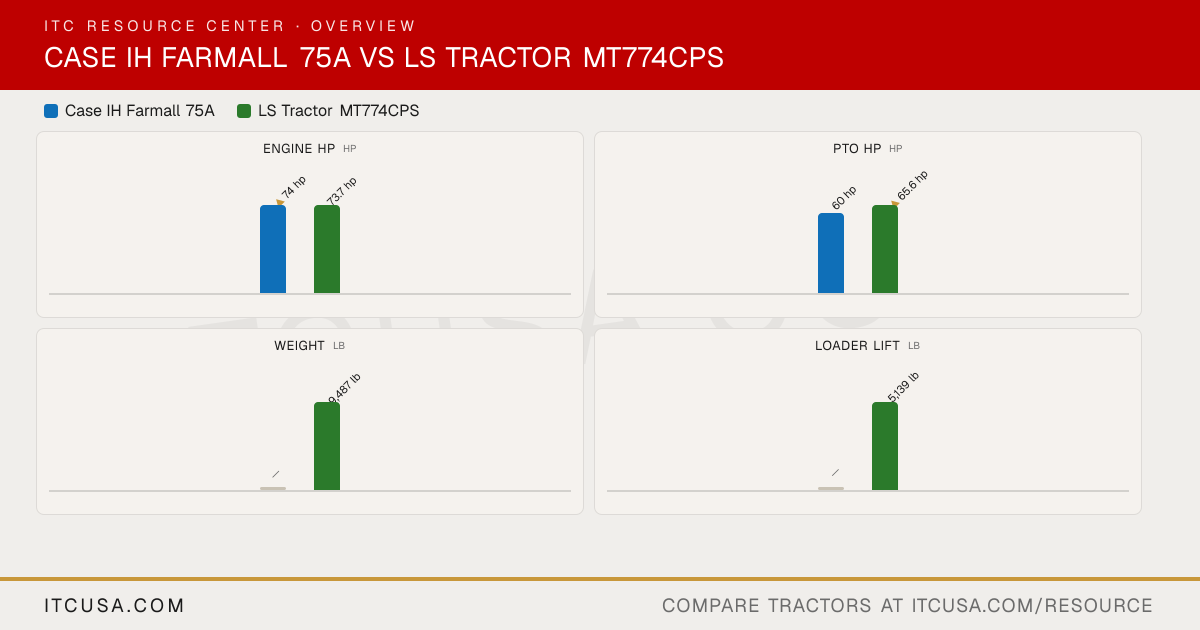

The headline numbers at a glance.

Case IH Farmall 75ALS Tractor MT774CPS

Engine HPhp

▲74 hp

73.7 hp

PTO HPhp

60 hp

▲65.6 hp

Weightlb

—

9,487 lb

Loader Liftlb

—

5,139 lb

3-Pt Lift (24 in)lb

4,299 lb

▲5,181 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 75A	LS TractorMT774CPS


PTO Power	60 hp	65.6 hp
Alternator	Not Published	120 A, 14 V
Air Cleaner	Not Published	Dry
Engine Type	Diesel, turbocharged	In-line, water-cooled, 4 stroke, CRDI
Fuel System	Not Published	CRDI (Bosch CP4.11)
Displacement	177 in³	206.7 in³
No. of Cylinders	3	4
Rated Engine Speed	2300 rpm	2200 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	FPT Industrial	FPT Industrial
Engine Power (Gross)	74 hp	73.7 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	9,487 lb

Warranty Length & Coverage	Not Published	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Not Published	Gear pump type, engine drive
Steering Flow	Not Published	6.4 gpm
Implement Flow	12.6 gpm	15.5 gpm
Total Hydraulic Flow	Not Published	21.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	21.9 gpm
No. of Optional Remote Valves	3	1 Pair (Rear)
No. of Standard Remote Valves	2	3 Pairs (Front), 2 Pairs (Rear)

PTO Rear	540 / 540/540E	540 / 750 / 1,000
PTO Type	Not Published	Independent
Lift Control Type	Mechanical Draft Control (MDC) top link sensing	Position & Draft
Hitch Lift Capacity	Not Published	7,253 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1/2	Category II
Hitch Lift Capacity (at 24”)	4,299 lb (standard); 4,740 lb (optional) @ 24 in behind pin	5,181 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Multiple options available (Ag, R14)
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	16.9-30
R1 Agricultural - Front	Not Published	11.2-24

Coolant Capacity	Not Published	3.2 gal
Crankcase Capacity	Not Published	1.7-2.1 gal (6.5-2.1 gal)
Fuel Tank Capacity	21.7 gal	30.4 gal
Front Axle Fluid Capacity	Not Published	1.4 gal
Transmission / Hydraulic System Capacity	Not Published	14.5 gal

Loader Lift Height	Not Published	139.9 in
Loader Breakout Force	Not Published	5,313 lb
Quick Attach Loader System	Not Published	LL8100: ISO 24410 “Quick Attachment” (lever-lock with latch pins into the attachment latch groove)
Loader Lift Capacity (Full Height)	Not Published	5,139 lb

Clutch	Dry clutch (8x8 mechanical shuttle); wet clutch (12x12 power shuttle)	Wet clutch disks
No. of Speeds	Not Published	F24 X R24
Transmission Type	8x8 mechanical shuttle (dry clutch) (standard); 12x12 power shuttle (wet clutch) or 12x12 with creeper (optional)	Power shuttle with Hi-Lo and Hand clutch
Max Travel Speed (Forward)	Not Published	20.8 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock; MFD engagement electrohydraulic	Electro-Hydraulic Differential lock (EHD)

Brakes	Not Published	Wet, Multi-disc
Steering	Not Published	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Air suspension seat

Wheelbase	81.2 in (2WD); 81.8 in (MFD)	90 in
Overall Width	Not Published	78 in
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	Not Published	Not Applicable
Height to Top of Cab Model	100 in	105 in
Height to Top of ROPS (folded)	67.7 in	Not Applicable
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	151.8 in	171 in
