Across 4 measurable specs, the New Holland T4.80V leads 4 categories to 0. Machine pages: Case IH Farmall 75A and New Holland T4.80V.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 75A | New Holland T4.80V |
|---|
| Engine HP (hp) | 74 hp | ▲ 75 hp |
| PTO HP (hp) | 60 hp | ▲ 61 hp |
| 3-Pt Lift (24 in) (lb) | 4,299 lb | ▲ 5,181 lb |
| Hydraulic Flow (gpm) | 12.6 gpm | ▲ 64 gpm |
| Travel Speed (mph) | n/a | 25 mph |

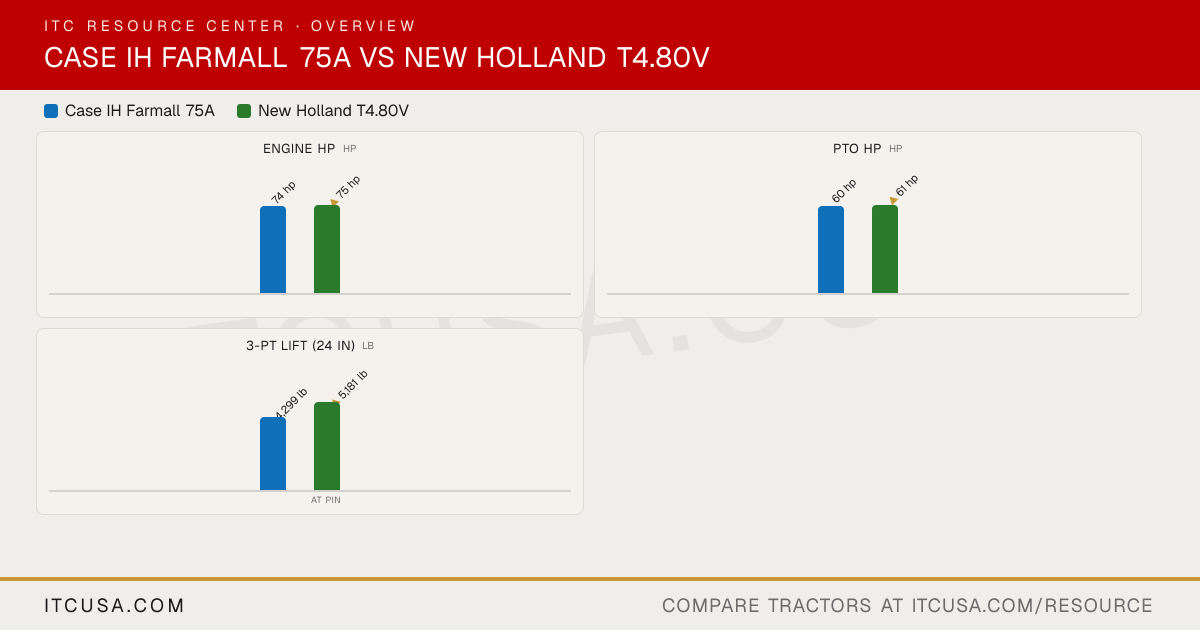

The headline numbers at a glance.
Case IH Farmall 75ANew Holland T4.80V
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 75A | New HollandT4.80V |
|---|
|
|---|
| PTO Power | 60 hp | 61 hp |
|---|
| Alternator | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Engine Type | Diesel, turbocharged | 4-cylinder diesel |
|---|
| Fuel System | Not Published | Electronic fuel injection |
|---|
| Displacement | 177 in³ | 207.5 in³ |
|---|
| No. of Cylinders | 3 | 4 |
|---|
| Rated Engine Speed | 2300 rpm | 2300 rpm |
|---|
| Cooling System Type | Not Published | Not Published |
|---|
| Engine Manufacturer | FPT Industrial | FPT Industrial |
|---|
| Engine Power (Gross) | 74 hp | 75 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4B Final |
|---|
|
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Applicable |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Open center |
|---|
| Steering Flow | Not Published | 9.5 gpm |
|---|
| Implement Flow | 12.6 gpm | 16.9 gpm |
|---|
| Total Hydraulic Flow | Not Published | 64 + 9.5 gpm (16.9 + 9.5 gpm) |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | 64 + 9.5 gpm (16.9 + 9.5 gpm) |
|---|
| No. of Optional Remote Valves | 3 | Not Published |
|---|
| No. of Standard Remote Valves | 2 | Not Published |
|---|
|
|---|
| PTO Rear | 540 / 540/540E | 540 / 540E (Std); 540 / 540E / 1000 (Opt) |
|---|
| PTO Type | Not Published | Electrohydraulic |
|---|
| Lift Control Type | Mechanical Draft Control (MDC) top link sensing | Mechanical Draft Control with Lift-O-Matic (Std); Electronic Draft Control (Opt) |
|---|
| Hitch Lift Capacity | Not Published | 5,181 lb |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category 1/2 | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 4,299 lb (standard); 4,740 lb (optional) @ 24 in behind pin | Not Published |
|---|
|
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
|
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Fuel Tank Capacity | 21.7 gal | 15.3 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
|
|---|
| Loader Lift Height | Not Published | Not Published |
|---|
| Loader Breakout Force | Not Published | Not Published |
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Lift Capacity (Full Height) | Not Published | Not Published |
|---|
|
|---|
| Clutch | Dry clutch (8x8 mechanical shuttle); wet clutch (12x12 power shuttle) | Wet clutch |
|---|
| No. of Speeds | Not Published | 16F/16R; 32F/16R |
|---|
| Transmission Type | 8x8 mechanical shuttle (dry clutch) (standard); 12x12 power shuttle (wet clutch) or 12x12 with creeper (optional) | 16x16 Shuttle Command; 16x16 Power Shuttle; 32x16 Dual Command |
|---|
| Max Travel Speed (Forward) | Not Published | 25 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical differential lock; MFD engagement electrohydraulic | Electro-hydraulic differential lock |
|---|
|
|---|
| Brakes | Not Published | Not Published |
|---|
| Steering | Not Published | Not Published |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | 2WD or MFD with limited slip | 4WD front axle |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
|
|---|
| Wheelbase | 81.2 in (2WD); 81.8 in (MFD) | 85.8 in |
|---|
| Overall Width | Not Published | 41.8 in |
|---|
| Ground Clearance | Not Published | 9.8 in |
|---|
| Height to Top of ROPS | Not Published | 98.7 in |
|---|
| Height to Top of Cab Model | 100 in | Not Applicable |
|---|
| Height to Top of ROPS (folded) | 67.7 in | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | 13.8 ft (4.2 m) |
|---|
| Overall Length with 3-Point Hitch | 151.8 in | Not Published |
|---|
Case IH Farmall 75A vs New Holland T4.80V: Quick Answers
- Which has more horsepower, the Case IH Farmall 75A or the New Holland T4.80V?
- The New Holland T4.80V leads on engine hp at 75 hp hp, compared to 74 hp hp for the Case IH Farmall 75A.
- Which has more PTO horsepower, the Case IH Farmall 75A or the New Holland T4.80V?
- The New Holland T4.80V leads on pto hp at 61 hp hp, compared to 60 hp hp for the Case IH Farmall 75A.
- Which has more three-point hitch lift capacity, the Case IH Farmall 75A or the New Holland T4.80V?
- The New Holland T4.80V leads on 3-pt lift (24 in) at 5,181 lb lb, compared to 4,299 lb lb for the Case IH Farmall 75A.
