Across 8 measurable specs, the Case IH Farmall 75C leads 1 categories to 0 (7 tied). Machine pages: Case IH Farmall 75C and Case IH Farmall 75C ROPS.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 75C | Case IH Farmall 75C ROPS |
|---|
| Engine HP (hp) | 74 hp | 74 hp |
| PTO HP (hp) | 61 hp | 61 hp |
| Weight (lb) | ▲ 6,548 lb | 5,953 lb |
| Loader Lift (lb) | 2,734 lb | 2,734 lb |
| 3-Pt Lift (24 in) (lb) | 3,956 lb | 3,956 lb |
| Lift Height (in) | 105 in | 105 in |
| Breakout Force (lbf) | 3,527 lbf | 3,527 lbf |
| Hydraulic Flow (gpm) | 12.9 gpm | 12.9 gpm |

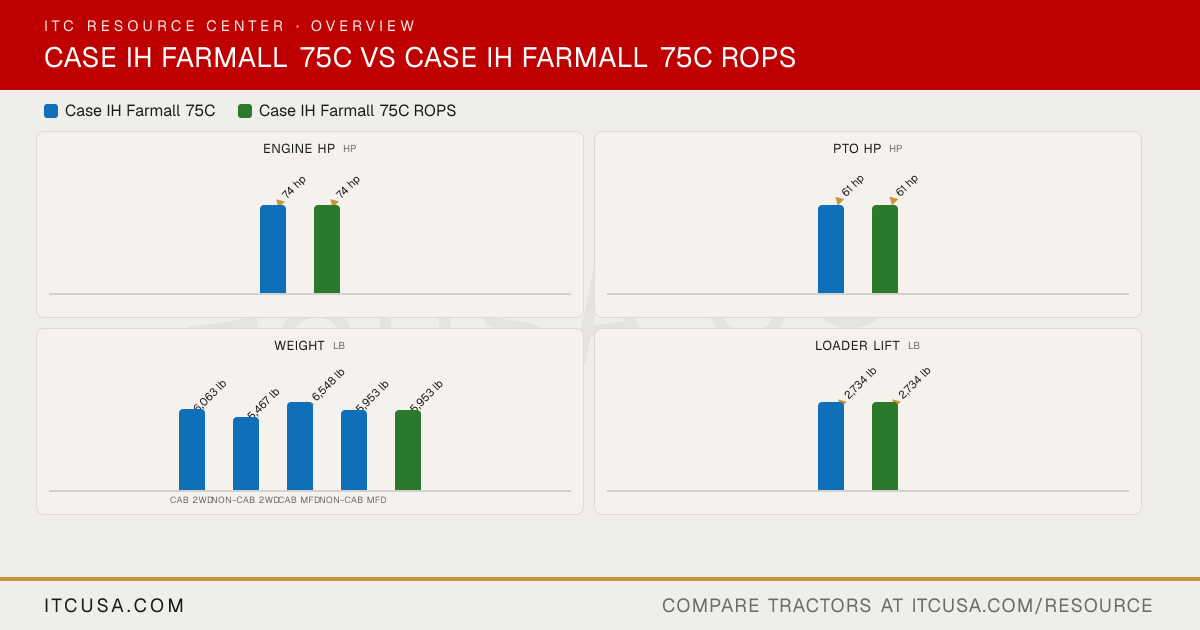

The headline numbers at a glance.
Case IH Farmall 75CCase IH Farmall 75C ROPS
ITCUSA.COMITCUSA.COMITCUSA.COM
Weightlb
6,063 lb
5,467 lb
▲6,548 lb
5,953 lb
5,953 lb
Cab 2WDNon-Cab 2WDCab MFDNon-Cab MFD
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 75C | Case IHFarmall 75C ROPS |
|---|
|
|---|
| Engine Manufacturer | FPT | FPT |
|---|
| Engine Model | F5DFL463A*F017 | F5DFL463A*F017 |
|---|
| Engine Type | Turbocharged diesel | Turbocharged diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 207 in³ | 207 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2300 rpm |
|---|
| Engine Power (Gross) | 74 hp | 74 hp |
|---|
| PTO Power | 61 hp | 61 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Common rail | Common rail |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Dual gear pumps | Dual gear pumps |
|---|
| Implement Flow | 12.9 gpm | 12.9 gpm |
|---|
| Steering Flow | 7.3 gpm | 7.3 gpm |
|---|
| Total Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 | 2 |
|---|
| No. of Optional Remote Valves | 3 | 3 |
|---|
|
|---|
| Fuel Tank Capacity | 23.8 gal | 23.8 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm (540/540E optional) | 540 rpm (540/540E optional) |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I/II | Category I/II |
|---|
| Hitch Lift Capacity | Not Published | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 3,956 lb | 3,956 lb |
|---|
| Lift Control Type | Mechanical draft control (MDC), top link sensing | Mechanical draft control (MDC), top link sensing |
|---|
|
|---|
| Transmission Type | Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) | Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) |
|---|
| No. of Speeds | Standard: 12 forward / 12 reverse; Optional creeper: 20 forward / 20 reverse | Standard: 12 forward / 12 reverse; Optional creeper: 20 forward / 20 reverse |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Wet clutch | Wet clutch |
|---|
| Differential Lock & Limited Slip Options | Mechanical rear differential lock; limited-slip MFD front axle | Mechanical rear differential lock; limited-slip MFD front axle |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Hydraulic wet disc | Hydraulic wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | 2WD: 2WD front axle; MFD: MFD with limited slip, electrohydraulic engagement | 2WD: 2WD front axle; MFD: MFD with limited slip, electrohydraulic engagement |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 145.8 in | 145.8 in |
|---|
| Overall Width | 76 in | 76 in |
|---|
| Wheelbase | 2WD: 85.8 in; MFD: 84 in | 2WD: 85.8 in; MFD: 84 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | 104.5 in | 104.5 in |
|---|
| Height to Top of ROPS (folded) | 77.6 in | 77.6 in |
|---|
| Height to Top of Cab Model | 98 in | 98 in |
|---|
|
|---|
| Tractor Weight (Base) | Cab 2WD: 6,063 lb; Non-Cab 2WD: 5,467 lb; Cab MFD: 6,548 lb; Non-Cab MFD: 5,953 lb | 5,953 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 18.4R34 rear | 18.4R34 rear |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | L565 | Not Published |
|---|
| Loader Model | L565 | L565 |
|---|
| Loader Lift Height | 105 in | 105 in |
|---|
| Loader Lift Capacity (Full Height) | 2,734 lb | 2,734 lb |
|---|
| Loader Breakout Force | 3,527 lb | 3,527 lb |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
Case IH Farmall 75C vs Case IH Farmall 75C ROPS: Quick Answers
- Which has more horsepower, the Case IH Farmall 75C or the Case IH Farmall 75C ROPS?
- They are effectively tied: both machines are rated at 74 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall 75C or the Case IH Farmall 75C ROPS?
- They are effectively tied: both machines are rated at 61 hp hp for pto hp.
- Which is heavier, the Case IH Farmall 75C or the Case IH Farmall 75C ROPS?
- The Case IH Farmall 75C leads on weight at 6,548 lb lb, compared to 5,953 lb lb for the Case IH Farmall 75C ROPS.
- Which has more loader lift capacity, the Case IH Farmall 75C or the Case IH Farmall 75C ROPS?
- They are effectively tied: both machines are rated at 2,734 lb lb for loader lift.
- Which has more three-point hitch lift capacity, the Case IH Farmall 75C or the Case IH Farmall 75C ROPS?
- They are effectively tied: both machines are rated at 3,956 lb lb for 3-pt lift (24 in).
