Across 6 measurable specs, the Case IH Farmall 75C leads 4 categories to 2. Machine pages: Case IH Farmall 75C and John Deere 4075R.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 75C | John Deere 4075R |
|---|
| Engine HP (hp) | 74 hp | ▲ 74.3 hp |
| PTO HP (hp) | ▲ 61 hp | 60 hp |
| Weight (lb) | ▲ 6,548 lb | 4,828 lb |
| Loader Lift (lb) | ▲ 2,734 lb | 2,539 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,956 lb | 2,500 lb |
| Lift Height (in) | 105 in | n/a |
| Breakout Force (lbf) | 3,527 lbf | n/a |
| Hydraulic Flow (gpm) | 12.9 gpm | ▲ 15.9 gpm |
| Travel Speed (mph) | n/a | 18.7 mph |

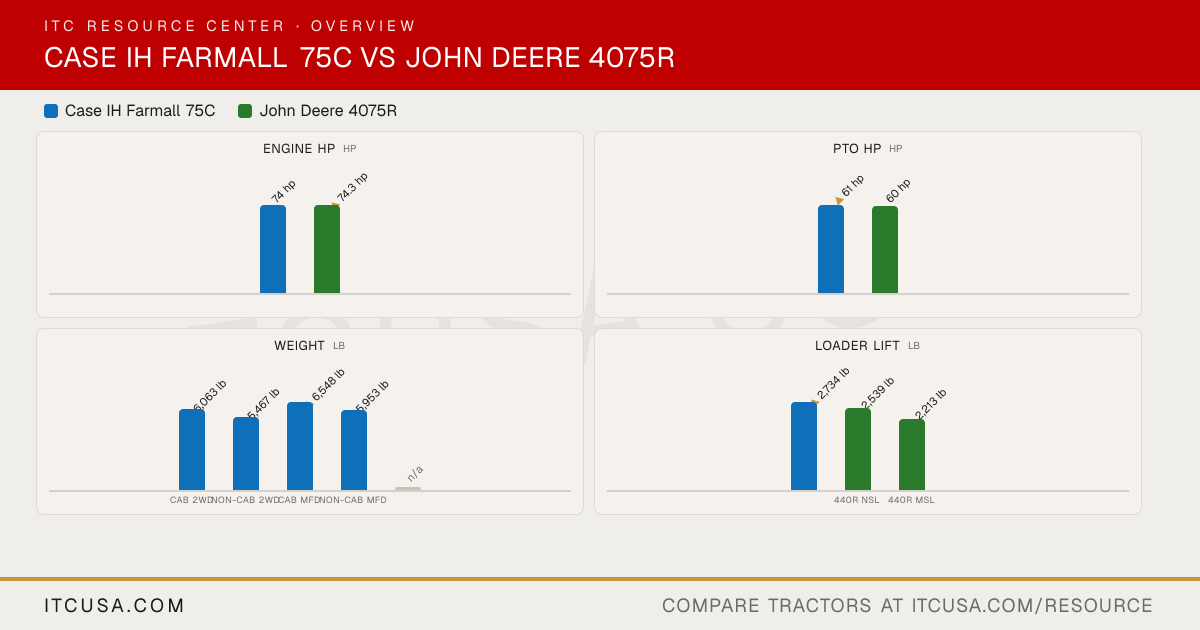

The headline numbers at a glance.
Case IH Farmall 75CJohn Deere 4075R
ITCUSA.COMITCUSA.COMITCUSA.COM
Loader Liftlb
▲2,734 lb
2,539 lb
2,213 lb
440R NSL440R MSL
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 75C | John Deere4075R |
|---|
|
|---|
| Engine Manufacturer | FPT | Yanmar |
|---|
| Engine Model | Not Published | 4TNV86CHT-MJT |
|---|
| Engine Type | Turbocharged diesel | Turbocharged 4-cylinder Diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 207.5 in³ | 127.6 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 74 hp | 74.3 hp |
|---|
| PTO Power | 61 hp | 60 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Not Published | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Dry type with electronic restriction indicator |
|---|
| Fuel System | Common rail | High pressure common-rail direct injection |
|---|
| Alternator | Not Published | 75 A |
|---|
|
|---|
| Pump Type | Dual gear pumps | Dual Independent |
|---|
| Implement Flow | 12.9 gpm | Not Published |
|---|
| Steering Flow | 7.3 gpm | Not Published |
|---|
| Total Hydraulic Flow | Not Published | 15.9 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 15.9 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 | Not Published |
|---|
| No. of Optional Remote Valves | 1 | 3/4/5 optional |
|---|
|
|---|
| Fuel Tank Capacity | 23.8 gal | 14.7 gal |
|---|
| Coolant Capacity | Not Published | 8.0 qt |
|---|
| Crankcase Capacity | Not Published | 5.7 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent (wet disc clutch) |
|---|
| PTO Rear | 540 rpm (540/540E optional) | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | No mid-PTO offered |
|---|
| Category, 3-Point Hitch | Category I/II | Category I |
|---|
| Hitch Lift Capacity | Not Published | 3,130 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3,956 lb | 2,500 lb |
|---|
| Lift Control Type | Mechanical draft control (MDC), top link sensing | Position control |
|---|
|
|---|
| Transmission Type | Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) | Standard: eHydro (3F/3R hydrostatic); Optional: 12F/12R PowrReverser |
|---|
| No. of Speeds | Standard: 12 forward and 12 reverse; Optional creeper: 20 forward and 20 reverse | eHydro: 3F/3R; PowrReverser: 12F/12R |
|---|
| Max Travel Speed (Forward) | Not Published | 18.7 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Wet clutch | Wet disc (PowrReverser); n/a (eHydro) |
|---|
| Differential Lock & Limited Slip Options | Mechanical; MFD front axle with limited slip | Yes, mechanical rear differential lock |
|---|
|
|---|
| Frame Type | Not Published | ComfortGard cab (standard) |
|---|
| Steering | Hydrostatic power steering | Power steering |
|---|
| Brakes | Hydraulic wet disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | MFD with limited slip; electrohydraulic engagement | Mechanical front wheel drive (MFWD) - Standard |
|---|
| Front Axle Rating | Not Published | 3,307 lb |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 76 in | 78.3 in |
|---|
| Wheelbase | 84 in | 73 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Applicable | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Applicable | Not Published |
|---|
| Height to Top of Cab Model | 98 in | 97.4 in |
|---|
| Overall Length | 145.8 in | 133.4 in |
|---|
|
|---|
| Tractor Weight (Base) | 6,548 lb (weight w/o ballast) | 4,828 lb (operating weight) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 18.4R34 rear | Not Published |
|---|
| R1 Agricultural - Front | Not Published | 8-16 (6PR) |
|---|
| R1 Agricultural - Rear | Not Published | 13.6-28 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | L565 | Not Published |
|---|
| Loader Model | L565 | 440R |
|---|
| Loader Lift Height | L565: 105 in | Not Published |
|---|
| Loader Lift Capacity (Full Height) | L565: 2,734 lb | 440R NSL: 2,539 lb; 440R MSL: 2,213 lb (at pivot pin, 4R Series figures) |
|---|
| Loader Breakout Force | L565: 3,527 lb | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours |
|---|
Case IH Farmall 75C vs John Deere 4075R: Quick Answers
- Which has more horsepower, the Case IH Farmall 75C or the John Deere 4075R?
- The John Deere 4075R leads on engine hp at 74.3 hp hp, compared to 74 hp hp for the Case IH Farmall 75C.
- Which has more PTO horsepower, the Case IH Farmall 75C or the John Deere 4075R?
- The Case IH Farmall 75C leads on pto hp at 61 hp hp, compared to 60 hp hp for the John Deere 4075R.
- Which is heavier, the Case IH Farmall 75C or the John Deere 4075R?
- The Case IH Farmall 75C leads on weight at 6,548 lb lb, compared to 4,828 lb lb for the John Deere 4075R.
- Which has more loader lift capacity, the Case IH Farmall 75C or the John Deere 4075R?
- The Case IH Farmall 75C leads on loader lift at 2,734 lb lb, compared to 2,539 lb lb for the John Deere 4075R.
- Which has more three-point hitch lift capacity, the Case IH Farmall 75C or the John Deere 4075R?
- The Case IH Farmall 75C leads on 3-pt lift (24 in) at 3,956 lb lb, compared to 2,500 lb lb for the John Deere 4075R.
