Case IH Farmall 75C vs John Deere 5075E
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the John Deere 5075E leads 5 categories to 3. Machine pages: Case IH Farmall 75C and John Deere 5075E.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

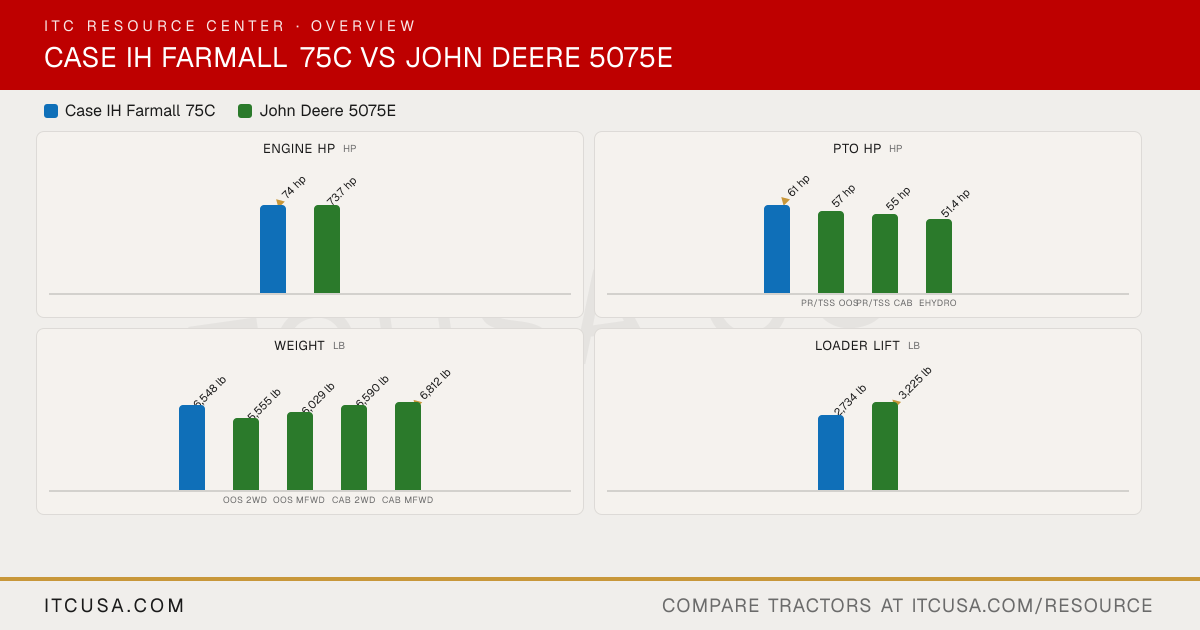

Category Verdict
| Spec | Case IH Farmall 75C | John Deere 5075E |
|---|---|---|
| Engine HP (hp) | ▲ 74 hp | 73.7 hp |
| PTO HP (hp) | ▲ 61 hp | 57 hp |
| Weight (lb) | 6,548 lb | ▲ 6,812 lb |
| Loader Lift (lb) | 2,734 lb | ▲ 3,225 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,956 lb | 3,192 lb |
| Lift Height (in) | 105 in | ▲ 124 in |
| Breakout Force (lbf) | 3,527 lbf | ▲ 4,354 lbf |
| Hydraulic Flow (gpm) | 12.9 gpm | ▲ 29.6 gpm |
| Travel Speed (mph) | n/a | 15.5 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 75C | John Deere5075E |
|---|
| Engine Manufacturer | FPT | John Deere |
|---|---|---|
| Engine Model | Not Published | PowerTech 3029 (2.9L) EWR |
| Engine Type | Turbocharged diesel | Diesel, turbocharged |
| No. of Cylinders | 4 | 3 |
| Displacement | 207.5 in³ | 179 in³ |
| Rated Engine Speed | 2300 rpm | 2100 rpm |
| Engine Power (Gross) | 74 hp | 73.7 hp |
| PTO Power | 61 hp | PR/TSS OOS: 57 hp; PR/TSS Cab: 55 hp; eHydro: 51.4 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Not Published | Liquid-cooled |
| Air Cleaner | Not Published | Dry type with safety element |
| Fuel System | Common rail | Electronically controlled, high-pressure common rail |
| Alternator | Not Published | 110 A |
Case IH Farmall 75C vs John Deere 5075E: Quick Answers
- Which has more horsepower, the Case IH Farmall 75C or the John Deere 5075E?
- The Case IH Farmall 75C leads on engine hp at 74 hp hp, compared to 73.7 hp hp for the John Deere 5075E.
- Which has more PTO horsepower, the Case IH Farmall 75C or the John Deere 5075E?
- The Case IH Farmall 75C leads on pto hp at 61 hp hp, compared to 57 hp hp for the John Deere 5075E.
- Which is heavier, the Case IH Farmall 75C or the John Deere 5075E?
- The John Deere 5075E leads on weight at 6,812 lb lb, compared to 6,548 lb lb for the Case IH Farmall 75C.
- Which has more loader lift capacity, the Case IH Farmall 75C or the John Deere 5075E?
- The John Deere 5075E leads on loader lift at 3,225 lb lb, compared to 2,734 lb lb for the Case IH Farmall 75C.
- Which has more three-point hitch lift capacity, the Case IH Farmall 75C or the John Deere 5075E?
- The Case IH Farmall 75C leads on 3-pt lift (24 in) at 3,956 lb lb, compared to 3,192 lb lb for the John Deere 5075E.
