Across 8 measurable specs, the LS Tractor MT774CPS leads 7 categories to 1. Machine pages: Case IH Farmall 75C and LS Tractor MT774CPS.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 75C | LS Tractor MT774CPS |
|---|
| Engine HP (hp) | ▲ 74 hp | 73.7 hp |
| PTO HP (hp) | 61 hp | ▲ 65.6 hp |
| Weight (lb) | 6,548 lb | ▲ 7,827 lb |
| Loader Lift (lb) | 2,734 lb | ▲ 5,139 lb |
| 3-Pt Lift (24 in) (lb) | 3,956 lb | ▲ 5,181 lb |
| Lift Height (in) | 105 in | ▲ 139.9 in |
| Breakout Force (lbf) | 3,527 lbf | ▲ 5,313 lbf |
| Hydraulic Flow (gpm) | 12.9 gpm | ▲ 22.2 gpm |
| Travel Speed (mph) | n/a | 20.8 mph |

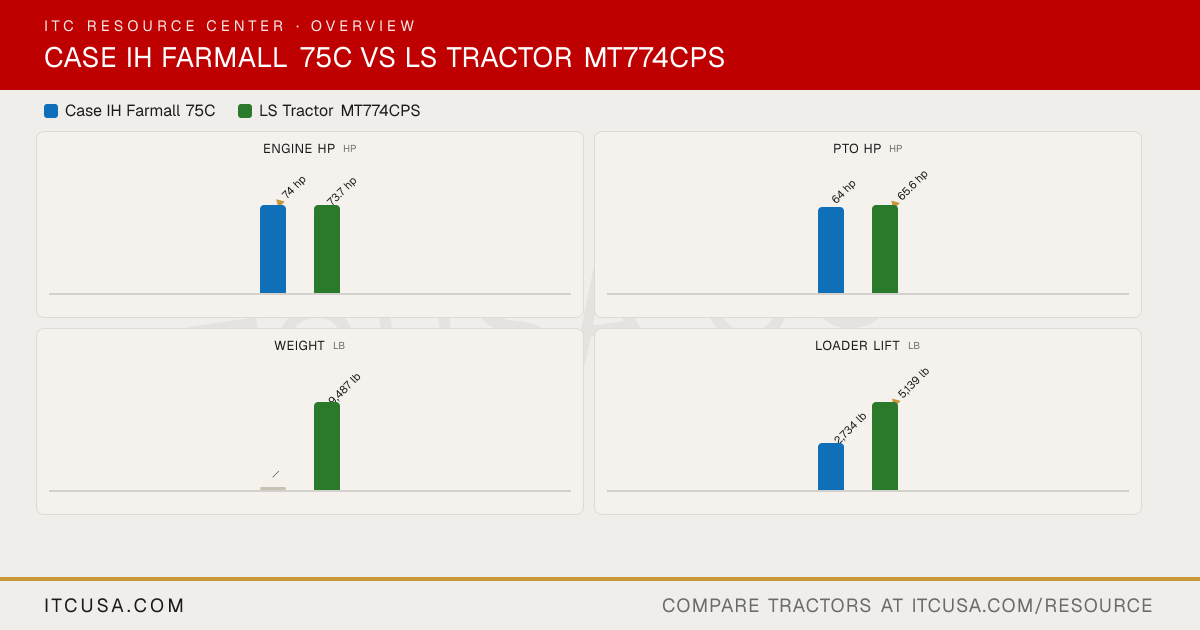

The headline numbers at a glance.
Case IH Farmall 75CLS Tractor MT774CPS
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 75C | LS TractorMT774CPS |
|---|
|
|---|
| Engine Manufacturer | FPT | FPT (Fiat Power Train) |
|---|
| Engine Model | Not Published | F34 |
|---|
| Engine Type | Turbocharged diesel | 4-cylinder, CRDI, water-cooled |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 207.5 in³ | 206.7 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2200 rpm |
|---|
| Engine Power (Gross) | 74 hp | 73.7 hp |
|---|
| PTO Power | 61 hp | 65.6 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Not Published | Water-cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Common rail | Not Published |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Dual gear pumps | Gear pump type, engine drive |
|---|
| Implement Flow | 12.9 gpm | 15.7 gpm |
|---|
| Steering Flow | 7.3 gpm | 6.5 gpm |
|---|
| Total Hydraulic Flow | Not Published | 22.2 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 22.2 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 | 3 Pairs (Front), 2 Pairs (Rear) |
|---|
| No. of Optional Remote Valves | 1 | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 23.8 gal | 30.4 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 14.5 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm (540/540E optional) | 540 / 750 / 1,000 |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I/II | Category II |
|---|
| Hitch Lift Capacity | Not Published | 7,275 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3,956 lb | 5,181 lb |
|---|
| Lift Control Type | Mechanical draft control (MDC), top link sensing | Position & Draft |
|---|
|
|---|
| Transmission Type | Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) | Power Shuttle |
|---|
| No. of Speeds | Standard: 12 forward and 12 reverse; Optional creeper: 20 forward and 20 reverse | 24 X 24 |
|---|
| Max Travel Speed (Forward) | Not Published | 20.8 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Wet clutch | Wet disks |
|---|
| Differential Lock & Limited Slip Options | Mechanical; MFD front axle with limited slip | Electro-Hydraulic Differential lock (EHD) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic |
|---|
| Brakes | Hydraulic wet disc | Wet, Multi-disc |
|---|
| Seat Suspension & Adjustability | Not Published | Air suspension seat |
|---|
| Front Axle Type | MFD with limited slip; electrohydraulic engagement | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 76 in | 78.7 in |
|---|
| Wheelbase | 84 in | 90 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Applicable | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Applicable | Not Published |
|---|
| Height to Top of Cab Model | 98 in | 105 in |
|---|
| Overall Length | 145.8 in | 152.2 in (frame to link) |
|---|
|
|---|
| Tractor Weight (Base) | 6,548 lb (weight w/o ballast) | 7,827 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | 9,487 lb (7,827 + 1,660, computed; LL8100 loader without bucket) |
|---|
|
|---|
| Tire Size & Options | 18.4R34 rear | Ag 11.2-24 / 16.9-30; R14 320/85R24 / 460/85R30 |
|---|
| R1 Agricultural - Front | Not Published | 11.2-24 |
|---|
| R1 Agricultural - Rear | Not Published | 16.9-30 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | L565 | Not Published |
|---|
| Loader Model | L565 | LL8100 |
|---|
| Loader Lift Height | L565: 105 in | LL8100: 139.9 in |
|---|
| Loader Lift Capacity (Full Height) | L565: 2,734 lb | LL8100: 5,139 lb (at pivot pin) |
|---|
| Loader Breakout Force | L565: 3,527 lb | LL8100: 5,313 lb (at pivot pin) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Basic 2 years or 750 hours; powertrain 5 years or 1,500 hours |
|---|
Case IH Farmall 75C vs LS Tractor MT774CPS: Quick Answers
- Which has more horsepower, the Case IH Farmall 75C or the LS Tractor MT774CPS?
- The Case IH Farmall 75C leads on engine hp at 74 hp hp, compared to 73.7 hp hp for the LS Tractor MT774CPS.
- Which has more PTO horsepower, the Case IH Farmall 75C or the LS Tractor MT774CPS?
- The LS Tractor MT774CPS leads on pto hp at 65.6 hp hp, compared to 61 hp hp for the Case IH Farmall 75C.
- Which is heavier, the Case IH Farmall 75C or the LS Tractor MT774CPS?
- The LS Tractor MT774CPS leads on weight at 7,827 lb lb, compared to 6,548 lb lb for the Case IH Farmall 75C.
- Which has more loader lift capacity, the Case IH Farmall 75C or the LS Tractor MT774CPS?
- The LS Tractor MT774CPS leads on loader lift at 5,139 lb lb, compared to 2,734 lb lb for the Case IH Farmall 75C.
- Which has more three-point hitch lift capacity, the Case IH Farmall 75C or the LS Tractor MT774CPS?
- The LS Tractor MT774CPS leads on 3-pt lift (24 in) at 5,181 lb lb, compared to 3,956 lb lb for the Case IH Farmall 75C.
