Across 6 measurable specs, the Rural King RK74 leads 4 categories to 1 (1 tied). Machine pages: Case IH Farmall 75C and Rural King RK74.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 75C | Rural King RK74 |
|---|
| Engine HP (hp) | 74 hp | 74 hp |
| PTO HP (hp) | 64 hp | — |
| Weight (lb) | — | 6,052 lb |
| Loader Lift (lb) | 2,734 lb | ▲ 3,223 lb |
| 3-Pt Lift (24 in) (lb) | 3,664 lb | ▲ 5,115 lb |
| Lift Height (in) | 105 in | ▲ 135.5 in |
| Breakout Force (lbf) | 3,527 lbf | ▲ 5,335 lbf |
| Hydraulic Flow (gpm) | ▲ 12.5 gpm | 10.3 gpm |
| Travel Speed (mph) | — | 18.9 mph |

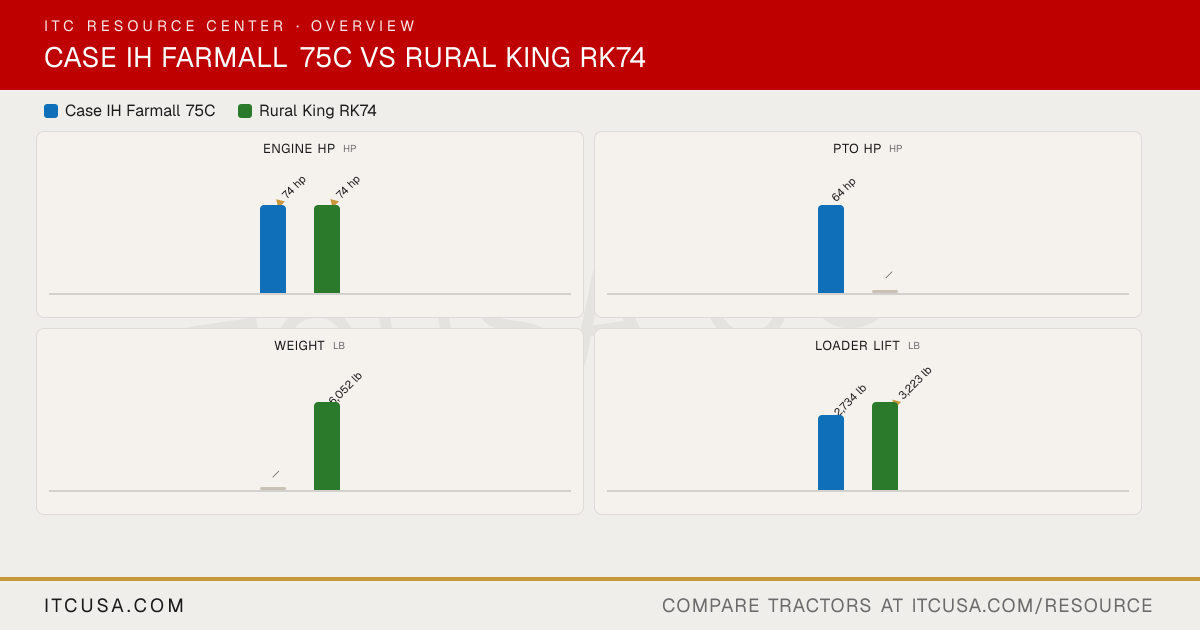

The headline numbers at a glance.
Case IH Farmall 75CRural King RK74
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 75C | Rural KingRK74 |
|---|
|
|---|
| PTO Power | 64 hp | — |
|---|
| Alternator | Not Published | — |
|---|
| Air Cleaner | Not Published | — |
|---|
| Engine Type | Diesel, turbocharged | Turbocharged |
|---|
| Fuel System | Not Published | — |
|---|
| Displacement | 207.5 in³ | — |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Rated Engine Speed | 2300 rpm | 2200 |
|---|
| Cooling System Type | Not Published | — |
|---|
| Engine Manufacturer | FPT Industrial | Deutz |
|---|
| Engine Power (Gross) | 74 hp | 74 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Engine Model | — | Deutz TCD2.9 L4 |
|---|
|
|---|
| Weight with ROPS and Loader | Not Published | 6,052 lbs. |
|---|
| Weight with Cab and Loader | Not Published | — |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | — |
|---|
|
|---|
| Pump Type | Not Published | — |
|---|
| Steering Flow | Not Published | — |
|---|
| Implement Flow | 12.5 gpm | — |
|---|
| Total Hydraulic Flow | Not Published | — |
|---|
| Hydraulic System Type | Open center | open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | — |
|---|
| Overall Hydraulic Pump Flow | Not Published | 10.3 gpm |
|---|
| No. of Optional Remote Valves | 3 | — |
|---|
| No. of Standard Remote Valves | 2 | — |
|---|
|
|---|
| PTO Rear | 540 / 540/540E | 540/750 |
|---|
| PTO Type | Not Published | Independent |
|---|
| Lift Control Type | Mechanical Draft Control (MDC) top link sensing | Draft Control |
|---|
| Hitch Lift Capacity | 3,664 lb @ 24 in behind pin | 5,115 lbs |
|---|
| Mid-PTO Availability | Not Published | — |
|---|
| Category, 3-Point Hitch | Category 1/2 | — |
|---|
| Hitch Lift Capacity (at 24”) | 3,664 lb @ 24 in behind pin | — |
|---|
|
|---|
| R3 Turf - Rear | Not Published | R 22.4x25.5 |
|---|
| R3 Turf - Front | Not Published | F 12.0x20.5 |
|---|
| Tire Size & Options | Not Published | — |
|---|
| R4 Industrial - Rear | Not Published | R 18.4x24 |
|---|
| R4 Industrial - Front | Not Published | F 15x9.5 |
|---|
| R1 Agricultural - Rear | Not Published | — |
|---|
| R1 Agricultural - Front | Not Published | — |
|---|
|
|---|
| Coolant Capacity | Not Published | — |
|---|
| Crankcase Capacity | Not Published | — |
|---|
| Fuel Tank Capacity | 23.8 gal | — |
|---|
| Front Axle Fluid Capacity | Not Published | — |
|---|
| Transmission / Hydraulic System Capacity | Not Published | — |
|---|
|
|---|
| Loader Lift Height | 105 in | 135.5 |
|---|
| Loader Breakout Force | 3,527 lb | 5,335 |
|---|
| Quick Attach Loader System | L565 | — |
|---|
| Loader Lift Capacity (Full Height) | 2,734 lb | 3,223 |
|---|
| Loader Model | — | L135SL Front-End Loader |
|---|
|
|---|
| Clutch | Wet clutch | Wet Disc |
|---|
| No. of Speeds | 12F/12R (standard); 8F/8R (optional); creeper option (12x12) | 16F/16R |
|---|
| Transmission Type | 12x12 Power shuttle (wet clutch) (standard); 8x8 Power shuttle (wet clutch) (optional); 12x12 Power shuttle (wet clutch) with creeper (optional) | 16F/16R Power Shuttle w/creeper |
|---|
| Max Travel Speed (Forward) | Not Published | 18.9 (30.4) |
|---|
| Max Travel Speed (Reverse) | Not Published | — |
|---|
| Differential Lock & Limited Slip Options | Mechanical diff lock; HD 2WD or MFD with limited slip | — |
|---|
|
|---|
| Brakes | Not Published | Wet Disc |
|---|
| Steering | Not Published | power |
|---|
| Frame Type | Not Published | 4x4 MFWD 4WD |
|---|
| Front Axle Type | HD 2WD or MFD with limited slip | — |
|---|
| Drawbar Capacity | Not Published | — |
|---|
| Front Axle Rating | Not Published | — |
|---|
| Seat Suspension & Adjustability | Not Published | — |
|---|
|
|---|
| Wheelbase | 86 in (2WD); 84 in (MFD) | — |
|---|
| Overall Width | Not Published | 76.4 (1940) |
|---|
| Ground Clearance | Not Published | 18.3 (465) |
|---|
| Height to Top of ROPS | Not Published | — |
|---|
| Height to Top of Cab Model | 98 in | 103.3 (2624) |
|---|
| Height to Top of ROPS (folded) | 77.6 in | — |
|---|
| Min. Turn Radius without Brakes | Not Published | — |
|---|
| Overall Length with 3-Point Hitch | 153 in (2WD); 151 in (MFD) | 157.5 (4002) |
|---|
Case IH Farmall 75C vs Rural King RK74: Quick Answers
- Which has more horsepower, the Case IH Farmall 75C or the Rural King RK74?
- They are effectively tied: both machines are rated at 74 hp hp for engine hp.
- Which has more loader lift capacity, the Case IH Farmall 75C or the Rural King RK74?
- The Rural King RK74 leads on loader lift at 3,223 lb lb, compared to 2,734 lb lb for the Case IH Farmall 75C.
- Which has more three-point hitch lift capacity, the Case IH Farmall 75C or the Rural King RK74?
- The Rural King RK74 leads on 3-pt lift (24 in) at 5,115 lb lb, compared to 3,664 lb lb for the Case IH Farmall 75C.
