Across 8 measurable specs, the TYM T5075 leads 6 categories to 2. Machine pages: Case IH Farmall 75C and TYM T5075.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 75C | TYM T5075 |
|---|
| Engine HP (hp) | 74 hp | ▲ 74.3 hp |
| PTO HP (hp) | 61 hp | ▲ 67.1 hp |
| Weight (lb) | ▲ 6,548 lb | 6,316 lb |
| Loader Lift (lb) | 2,734 lb | ▲ 3,325 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,956 lb | 3,418 lb |
| Lift Height (in) | 105 in | ▲ 133.8 in |
| Breakout Force (lbf) | 3,527 lbf | ▲ 5,485 lbf |
| Hydraulic Flow (gpm) | 12.9 gpm | ▲ 16.1 gpm |
| Travel Speed (mph) | n/a | 22.7 mph |

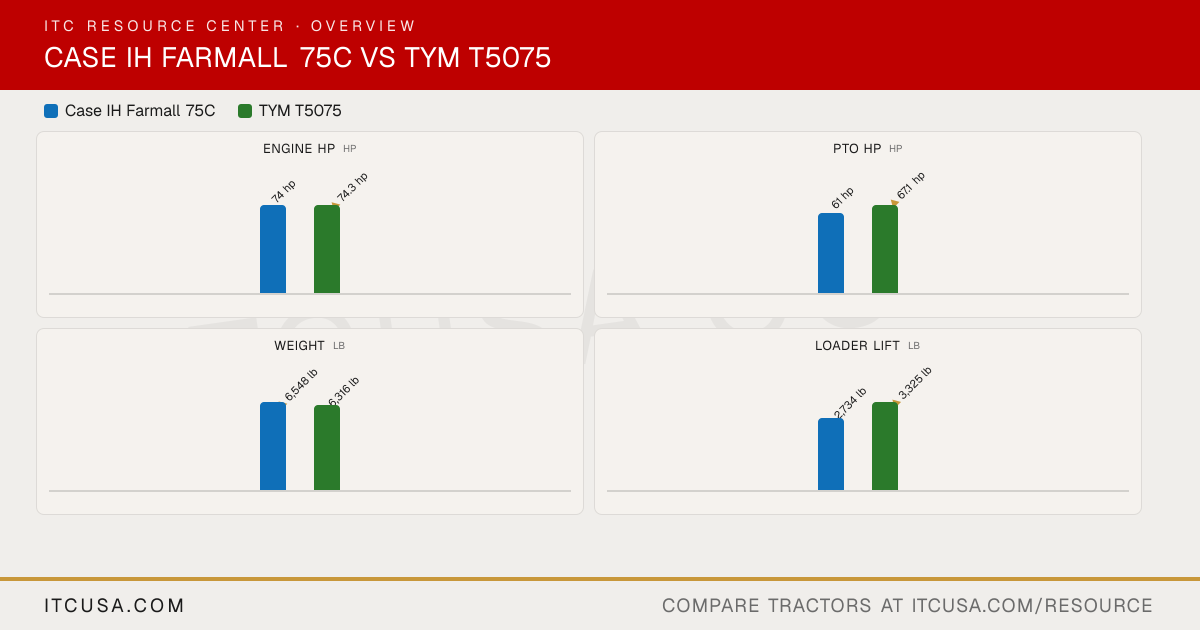

The headline numbers at a glance.
Case IH Farmall 75CTYM T5075
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 75C | TYMT5075 |
|---|
|
|---|
| Engine Manufacturer | FPT | Deutz |
|---|
| Engine Model | Not Published | TCD 2.9L |
|---|
| Engine Type | Turbocharged diesel | 4-cylinder, turbocharged, liquid-cooled diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 207.5 in³ | 178.5 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2200 rpm |
|---|
| Engine Power (Gross) | 74 hp | 74.3 hp |
|---|
| PTO Power | 61 hp | 67.1 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Not Published | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Dual dry |
|---|
| Fuel System | Common rail | CRDI |
|---|
| Alternator | Not Published | 95 A, 12 V |
|---|
|
|---|
| Pump Type | Dual gear pumps | Dual gear pump |
|---|
| Implement Flow | 12.9 gpm | 10.3 gpm |
|---|
| Steering Flow | 7.3 gpm | 5.8 gpm |
|---|
| Total Hydraulic Flow | Not Published | 16.1 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 16.1 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 | 4 |
|---|
| No. of Optional Remote Valves | 1 | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 23.8 gal | 23.7 gal |
|---|
| Coolant Capacity | Not Published | 11.1 qt |
|---|
| Crankcase Capacity | Not Published | 9 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 17.4 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 17.3 qt |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm (540/540E optional) | 540/750 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I/II | Category II |
|---|
| Hitch Lift Capacity | Not Published | 5,115 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3,956 lb | 3,418 lb |
|---|
| Lift Control Type | Mechanical draft control (MDC), top link sensing | Position/Draft |
|---|
|
|---|
| Transmission Type | Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) | Synchro or power shuttle |
|---|
| No. of Speeds | Standard: 12 forward and 12 reverse; Optional creeper: 20 forward and 20 reverse | F16 x R16 (Creep interlock) |
|---|
| Max Travel Speed (Forward) | Not Published | 22.7 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Wet clutch | M: Dry Single Plate; PS: Wet Multi Plate |
|---|
| Differential Lock & Limited Slip Options | Mechanical; MFD front axle with limited slip | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic |
|---|
| Brakes | Hydraulic wet disc | Wet, Multi-disc |
|---|
| Seat Suspension & Adjustability | Not Published | Suspension seat |
|---|
| Front Axle Type | MFD with limited slip; electrohydraulic engagement | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 76 in | 92.3 in |
|---|
| Wheelbase | 84 in | 86.1 in |
|---|
| Ground Clearance | Not Published | 18.4 in |
|---|
| Min. Turn Radius without Brakes | Not Published | 161.4 in |
|---|
| Height to Top of ROPS | Not Applicable | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Applicable | Not Published |
|---|
| Height to Top of Cab Model | 98 in | 104.9 in |
|---|
| Overall Length | 145.8 in | 168.1 in (with 3-point hitch) |
|---|
|
|---|
| Tractor Weight (Base) | 6,548 lb (weight w/o ballast) | 6,316 lb (with cab) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 18.4R34 rear | Not Published |
|---|
| R1 Agricultural - Front | Not Published | 280/85R24 |
|---|
| R1 Agricultural - Rear | Not Published | 420/85R30 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | 15-19.5 |
|---|
| R4 Industrial - Rear | Not Published | 18.4-24 |
|---|
|
|---|
| Quick Attach Loader System | L565 | Not Published |
|---|
| Loader Model | L565 | L5075SL |
|---|
| Loader Lift Height | L565: 105 in | L5075SL: 133.8 in |
|---|
| Loader Lift Capacity (Full Height) | L565: 2,734 lb | L5075SL: 3,325 lb (at pivot pin) |
|---|
| Loader Breakout Force | L565: 3,527 lb | L5075SL: 5,485 lb (at pivot pin, ground level) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Basic 24 months or 2,000 hours, parts and labor; loaders, backhoes and mid-mount mowers 12 months |
|---|
Case IH Farmall 75C vs TYM T5075: Quick Answers
- Which has more horsepower, the Case IH Farmall 75C or the TYM T5075?
- The TYM T5075 leads on engine hp at 74.3 hp hp, compared to 74 hp hp for the Case IH Farmall 75C.
- Which has more PTO horsepower, the Case IH Farmall 75C or the TYM T5075?
- The TYM T5075 leads on pto hp at 67.1 hp hp, compared to 61 hp hp for the Case IH Farmall 75C.
- Which is heavier, the Case IH Farmall 75C or the TYM T5075?
- The Case IH Farmall 75C leads on weight at 6,548 lb lb, compared to 6,316 lb lb for the TYM T5075.
- Which has more loader lift capacity, the Case IH Farmall 75C or the TYM T5075?
- The TYM T5075 leads on loader lift at 3,325 lb lb, compared to 2,734 lb lb for the Case IH Farmall 75C.
- Which has more three-point hitch lift capacity, the Case IH Farmall 75C or the TYM T5075?
- The Case IH Farmall 75C leads on 3-pt lift (24 in) at 3,956 lb lb, compared to 3,418 lb lb for the TYM T5075.
