Across 7 measurable specs, the TYM T754 leads 5 categories to 1 (1 tied). Machine pages: Case IH Farmall 75C and TYM T754 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Case IH Farmall 75C TYM T754 Engine HP (hp) 74 hp 74 hp PTO HP (hp) 64 hp ▲ 64.1 hpWeight (lb) — 7,904 lb Loader Lift (lb) 2,734 lb ▲ 3,325 lb3-Pt Lift (24 in) (lb) ▲ 3,664 lb3,418 lb Lift Height (in) 105 in ▲ 133.8 inBreakout Force (lbf) 3,527 lbf ▲ 5,485 lbfHydraulic Flow (gpm) 12.5 gpm ▲ 16.1 gpmTravel Speed (mph) — 24.1 mph

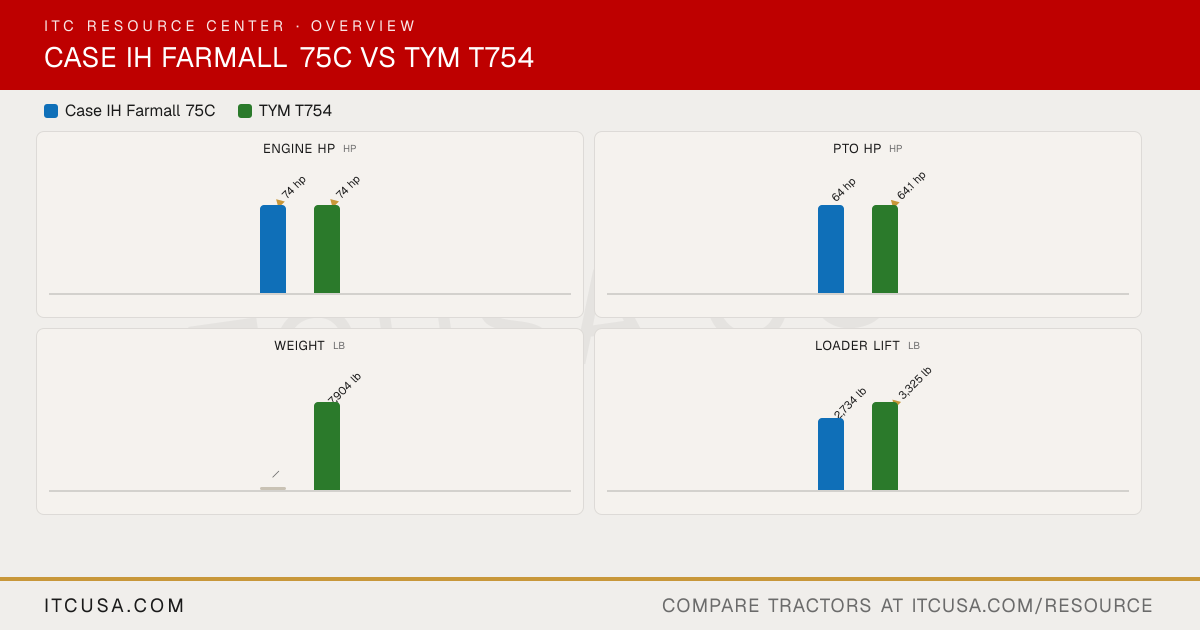

Overview Loader Work PTO Work
The headline numbers at a glance.
Case IH Farmall 75C TYM T754
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Case IH Farmall 75C TYM T754
▶ EnginePTO Power 64 hp 64.1 hp Alternator Not Published 95 A, 12 V Air Cleaner Not Published Dual dry Engine Type Diesel, turbocharged 4-cylinder, turbocharged diesel Fuel System Not Published CRDI Displacement 207.5 in³ 177 in³ No. of Cylinders 4 4 Rated Engine Speed 2300 rpm 2200 rpm Cooling System Type Not Published Not Published Engine Manufacturer FPT Industrial Deutz Engine Power (Gross) 74 hp 74 hp Engine Emissions Constraints Tier 4 Diesel Oxidation Catalyst (DOC) ▶ WeightWeight with ROPS and Loader Not Published Not Applicable Weight with Cab and Loader Not Published 7,904 lb ▶ WarrantyWarranty Length & Coverage Not Published Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes. ▶ HydraulicsPump Type Not Published Dual gear pump Steering Flow Not Published 5.8 gpm Implement Flow 12.5 gpm 10.3 gpm Total Hydraulic Flow Not Published 16.1 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow Not Published 16.1 gpm No. of Optional Remote Valves 3 Not Published No. of Standard Remote Valves 2 2 ▶ PTO & HitchPTO Rear 540 / 540/540E 540/750 rpm; 540/1,000 rpm (Opt) PTO Type Not Published Independent Lift Control Type Mechanical Draft Control (MDC) top link sensing Position/Draft/Elec Hitch Lift Capacity 3,664 lb @ 24 in behind pin 5,115 lb Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 1/2 Category II Hitch Lift Capacity (at 24”) 3,664 lb @ 24 in behind pin 3,418 lb ▶ Tire OptionsR3 Turf - Rear Not Published Not Published R3 Turf - Front Not Published Not Published Tire Size & Options Not Published R1 Agricultural, R4 Industrial R4 Industrial - Rear Not Published Xtra Grip 18.4-24 NHS TL 8PR R4 Industrial - Front Not Published Trac Chief 15-19.5 NHS TL 6PR R1 Agricultural - Rear Not Published FSTR 420/85R30 TL (16.9R30) R1 Agricultural - Front Not Published FSTR 280/85R24 TL (11R24) ▶ Fluid CapacityCoolant Capacity Not Published 10.6 qt Crankcase Capacity Not Published 8.5 qt Fuel Tank Capacity 23.8 gal 23.8 gal Front Axle Fluid Capacity Not Published 17.3 qt Transmission / Hydraulic System Capacity Not Published 18.0 gal ▶ Loader & AttachmentsLoader Lift Height 105 in 133.8 in Loader Breakout Force 3,527 lb 5,485 lb Quick Attach Loader System L565 TX75SL: Quick attachment (Skid/Euro type) Loader Lift Capacity (Full Height) 2,734 lb 3,325 lb ▶ Transmission & DrivetrainClutch Wet clutch M: Dry Single Plate; PS: Wet Multi Plate No. of Speeds 12F/12R (standard); 8F/8R (optional); creeper option (12x12) F16 x R16 (Creep interlock) Transmission Type 12x12 Power shuttle (wet clutch) (standard); 8x8 Power shuttle (wet clutch) (optional); 12x12 Power shuttle (wet clutch) with creeper (optional) Synchro-shuttle Max Travel Speed (Forward) Not Published 24.1 mph Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Mechanical diff lock; HD 2WD or MFD with limited slip Not Published ▶ Chassis, Steering & ControlsBrakes Not Published Wet disc Steering Not Published Hydrostatic Frame Type Not Published Not Published Front Axle Type HD 2WD or MFD with limited slip Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Suspension seat ▶ Dimensions & ManeuverabilityWheelbase 86 in (2WD); 84 in (MFD) 86.1 in Overall Width Not Published 76.4 in Ground Clearance Not Published 18.3 in Height to Top of ROPS Not Published Not Applicable Height to Top of Cab Model 98 in 103.3 in Height to Top of ROPS (folded) 77.6 in Not Applicable Min. Turn Radius without Brakes Not Published 162.8 in Overall Length with 3-Point Hitch 153 in (2WD); 151 in (MFD) 155.7 in
Case IH Farmall 75C vs TYM T754: Quick Answers
Which has more horsepower, the Case IH Farmall 75C or the TYM T754? They are effectively tied: both machines are rated at 74 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 75C or the TYM T754? The TYM T754 leads on pto hp at 64.1 hp hp, compared to 64 hp hp for the Case IH Farmall 75C.
Which has more loader lift capacity, the Case IH Farmall 75C or the TYM T754? The TYM T754 leads on loader lift at 3,325 lb lb, compared to 2,734 lb lb for the Case IH Farmall 75C.
Which has more three-point hitch lift capacity, the Case IH Farmall 75C or the TYM T754? The Case IH Farmall 75C leads on 3-pt lift (24 in) at 3,664 lb lb, compared to 3,418 lb lb for the TYM T754.
