Across 7 measurable specs, the Yanmar SM475 leads 5 categories to 1 (1 tied). Machine pages: Case IH Farmall 75C and Yanmar SM475.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 75C | Yanmar SM475 |
|---|
| Engine HP (hp) | 74 hp | 74 hp |
| PTO HP (hp) | 64 hp | ▲ 64.1 hp |
| Loader Lift (lb) | 2,734 lb | ▲ 3,325 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,664 lb | 3,418 lb |
| Lift Height (in) | 105 in | ▲ 133.8 in |
| Breakout Force (lbf) | 3,527 lbf | ▲ 5,485 lbf |
| Hydraulic Flow (gpm) | 12.5 gpm | ▲ 16.1 gpm |

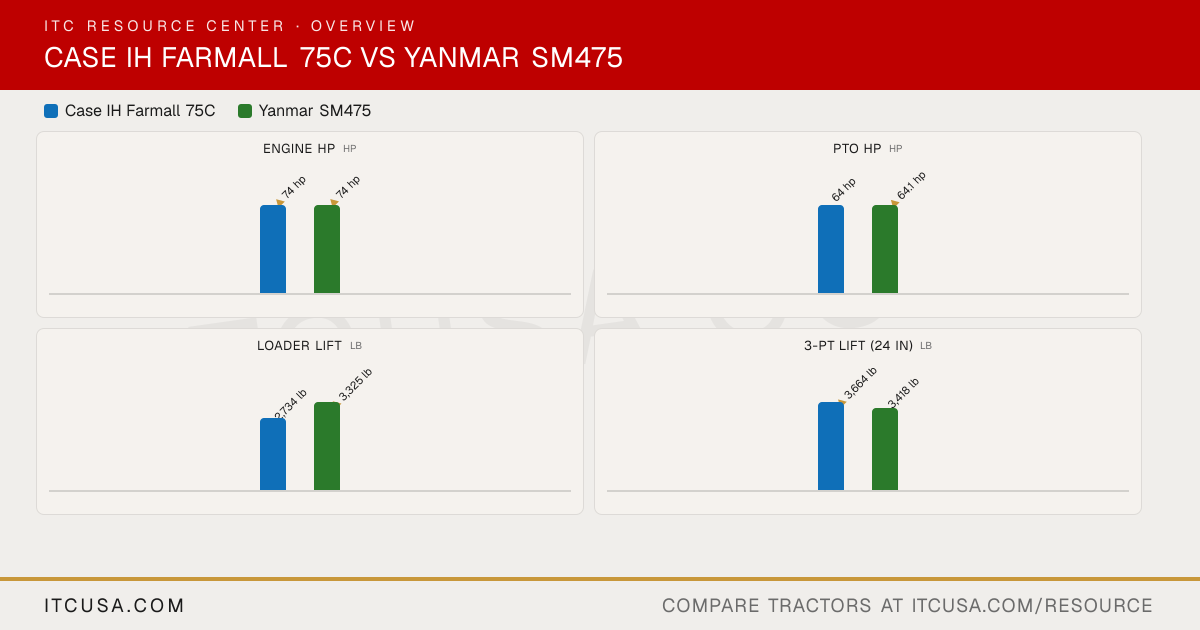

The headline numbers at a glance.
Case IH Farmall 75CYanmar SM475
ITCUSA.COMITCUSA.COMITCUSA.COM
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 75C | YanmarSM475 |
|---|
|
|---|
| PTO Power | 64 hp | 64.1 hp |
|---|
| Alternator | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Engine Type | Diesel, turbocharged | Not Published |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Displacement | 207.5 in³ | Not Published |
|---|
| No. of Cylinders | 4 | Not Published |
|---|
| Rated Engine Speed | 2300 rpm | 2200 rpm |
|---|
| Cooling System Type | Not Published | Not Published |
|---|
| Engine Manufacturer | FPT Industrial | Deutz |
|---|
| Engine Power (Gross) | 74 hp | 74 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
|
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Steering Flow | Not Published | 5.8 gpm |
|---|
| Implement Flow | 12.5 gpm | 10.3 gpm |
|---|
| Total Hydraulic Flow | Not Published | 16.1 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | 16.1 gpm |
|---|
| No. of Optional Remote Valves | 3 | Not Published |
|---|
| No. of Standard Remote Valves | 2 | 2 |
|---|
|
|---|
| PTO Rear | 540 / 540/540E | 540 rpm |
|---|
| PTO Type | Not Published | Independent |
|---|
| Lift Control Type | Mechanical Draft Control (MDC) top link sensing | Not Published |
|---|
| Hitch Lift Capacity | 3,664 lb @ 24 in behind pin | 5,115 lb |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category 1/2 | Category II |
|---|
| Hitch Lift Capacity (at 24”) | 3,664 lb @ 24 in behind pin | 3,418 lb |
|---|
|
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
|
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Fuel Tank Capacity | 23.8 gal | 23.8 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
|
|---|
| Loader Lift Height | 105 in | 133.8 in |
|---|
| Loader Breakout Force | 3,527 lb | 5,485 lb |
|---|
| Quick Attach Loader System | L565 | Not Published |
|---|
| Loader Lift Capacity (Full Height) | 2,734 lb | 3,325 lb |
|---|
|
|---|
| Clutch | Wet clutch | Wet multi plate |
|---|
| No. of Speeds | 12F/12R (standard); 8F/8R (optional); creeper option (12x12) | Not Published |
|---|
| Transmission Type | 12x12 Power shuttle (wet clutch) (standard); 8x8 Power shuttle (wet clutch) (optional); 12x12 Power shuttle (wet clutch) with creeper (optional) | Power shuttle |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical diff lock; HD 2WD or MFD with limited slip | Rear differential lock (foot pedal engagement) |
|---|
|
|---|
| Brakes | Not Published | Not Published |
|---|
| Steering | Not Published | Not Published |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | HD 2WD or MFD with limited slip | Selectable 2WD/4WD engagement |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Mechanical suspension seat |
|---|
|
|---|
| Wheelbase | 86 in (2WD); 84 in (MFD) | Not Published |
|---|
| Overall Width | Not Published | Not Published |
|---|
| Ground Clearance | Not Published | 18.3 in |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 98 in | Not Published |
|---|
| Height to Top of ROPS (folded) | 77.6 in | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Overall Length with 3-Point Hitch | 153 in (2WD); 151 in (MFD) | Not Published |
|---|
Case IH Farmall 75C vs Yanmar SM475: Quick Answers
- Which has more horsepower, the Case IH Farmall 75C or the Yanmar SM475?
- They are effectively tied: both machines are rated at 74 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall 75C or the Yanmar SM475?
- The Yanmar SM475 leads on pto hp at 64.1 hp hp, compared to 64 hp hp for the Case IH Farmall 75C.
- Which has more loader lift capacity, the Case IH Farmall 75C or the Yanmar SM475?
- The Yanmar SM475 leads on loader lift at 3,325 lb lb, compared to 2,734 lb lb for the Case IH Farmall 75C.
- Which has more three-point hitch lift capacity, the Case IH Farmall 75C or the Yanmar SM475?
- The Case IH Farmall 75C leads on 3-pt lift (24 in) at 3,664 lb lb, compared to 3,418 lb lb for the Yanmar SM475.
