Case IH Farmall Compact 25A vs Kioti CK2510

Across 7 measurable specs, the Case IH Farmall Compact 25A leads 5 categories to 2. Machine pages: Case IH Farmall Compact 25A and Kioti CK2510.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 25A	KiotiCK2510

▶Engine
PTO Power	19.2 hp	20 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, naturally aspirated	Liquid-cooled, inline, diesel
Fuel System	Not Published	Indirect injection
Displacement	79.3 in³	85 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2600 rpm
Cooling System Type	Not Published	Liquid-cooled
Engine Manufacturer	Not Published	KIOTI (Daedong)
Engine Power (Gross)	24.6 hp	24.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Warranty
Warranty Length & Coverage	Not Published	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Not Published	Gear pump
Steering Flow	Not Published	Not Published
Implement Flow	7.9 gpm	Not Published
Total Hydraulic Flow	Not Published	11.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	0 (standard) / 1 (optional) (DIA)	Not Published
Overall Hydraulic Pump Flow	Not Published	11.3 gpm
No. of Optional Remote Valves	1	1
No. of Standard Remote Valves	0	0
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Not Published	Transmission
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	1,433 lb @ 24 in behind pin	1,203.0 lb (at 24 in)
Mid-PTO Availability	Optional mid-PTO (2,000 rpm)	Optional
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity (at 24”)	1,433 lb @ 24 in behind pin	1,203.0 lb
▶Tire Options
R3 Turf - Rear	Not Published	33X12.50-16.5
R3 Turf - Front	Not Published	23X8.50-12
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	12-16.5
R4 Industrial - Front	Not Published	23X8.50-12
R1 Agricultural - Rear	Not Published	11.2-16
R1 Agricultural - Front	Not Published	7.0-12
▶Fluid Capacity
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	7.4 gal	6.6 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
▶Loader & Attachments
Loader Lift Height	94.3 in	87.8 in
Loader Breakout Force	1,926 lb	1,843 lb
Quick Attach Loader System	L330	Not Published
Loader Lift Capacity (Full Height)	1,214 lb	1,092 lb
▶Transmission & Drivetrain
Clutch	Dry clutch	Dry disc
No. of Speeds	12F/12R (mechanical shuttle); Hydrostatic (optional)	6F/2R
Transmission Type	12x12 Mechanical shuttle with synchro shift (dry clutch) (standard); Hydrostatic (optional)	Gear
Max Travel Speed (Forward)	Not Published	10.8 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Brakes	Not Published	Wet disc
Steering	Not Published	Hydrostatic power
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.9 in	59.8 in
Overall Width	Not Published	49.2 in
Ground Clearance	Not Published	13.4 in
Height to Top of ROPS	88.2 in	82.8 in
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	68.2 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	117.2 in	109.1 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection Kioti CX2510 / CK2510 Brush Screen Insert $249.99

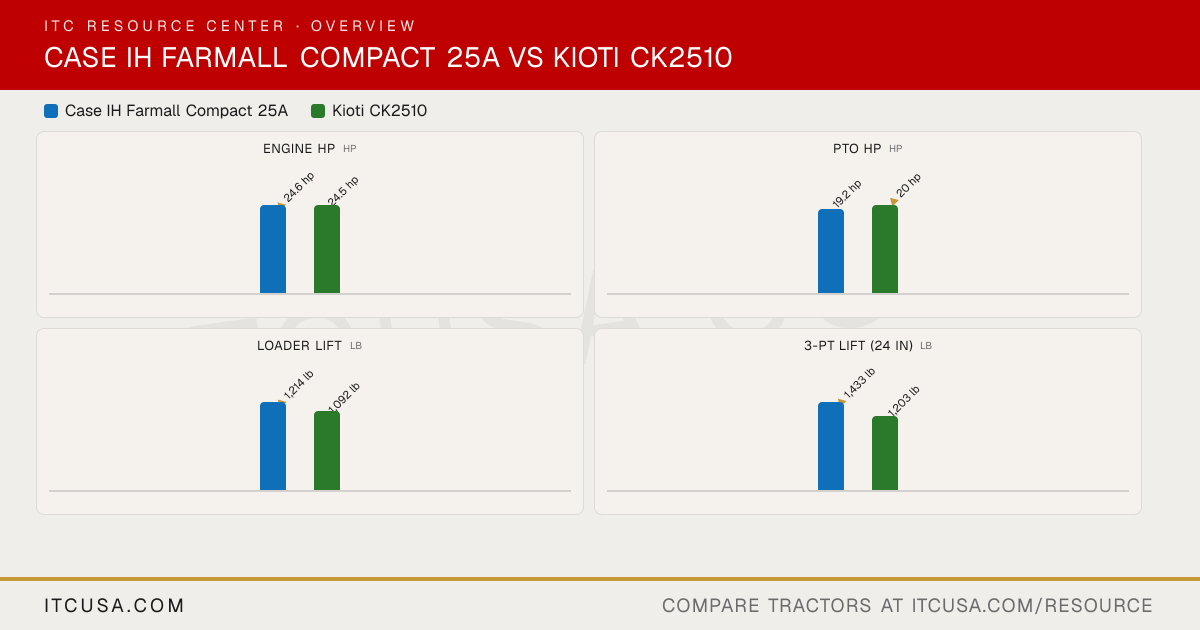

Case IH Farmall Compact 25A vs Kioti CK2510: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 25A or the Kioti CK2510?

The Case IH Farmall Compact 25A leads on engine hp at 24.6 hp hp, compared to 24.5 hp hp for the Kioti CK2510.

Which has more PTO horsepower, the Case IH Farmall Compact 25A or the Kioti CK2510?

The Kioti CK2510 leads on pto hp at 20 hp hp, compared to 19.2 hp hp for the Case IH Farmall Compact 25A.

Which has more loader lift capacity, the Case IH Farmall Compact 25A or the Kioti CK2510?

The Case IH Farmall Compact 25A leads on loader lift at 1,214 lb lb, compared to 1,092 lb lb for the Kioti CK2510.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 25A or the Kioti CK2510?

The Case IH Farmall Compact 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,203 lb lb for the Kioti CK2510.
