Which has more horsepower, the Case IH Farmall Compact 25A or the LS Tractor MT225S?

The LS Tractor MT225S leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall Compact 25A.

Which has more PTO horsepower, the Case IH Farmall Compact 25A or the LS Tractor MT225S?

The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 19.2 hp hp for the Case IH Farmall Compact 25A.

Which has more loader lift capacity, the Case IH Farmall Compact 25A or the LS Tractor MT225S?

The Case IH Farmall Compact 25A leads on loader lift at 1,214 lb lb, compared to 1,067 lb lb for the LS Tractor MT225S.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 25A or the LS Tractor MT225S?

The Case IH Farmall Compact 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,323 lb lb for the LS Tractor MT225S.

Case IH Farmall Compact 25A vs LS Tractor MT225S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the LS Tractor MT225S leads 4 categories to 3. Machine pages: Case IH Farmall Compact 25A and LS Tractor MT225S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 25A	LS Tractor MT225S
Engine HP (hp)	24.6 hp	▲ 24.7 hp
PTO HP (hp)	19.2 hp	▲ 19.3 hp
Loader Lift (lb)	▲ 1,214 lb	1,067 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,323 lb
Lift Height (in)	▲ 94.3 in	84.4 in
Breakout Force (lbf)	1,926 lbf	▲ 2,290 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 9.3 gpm

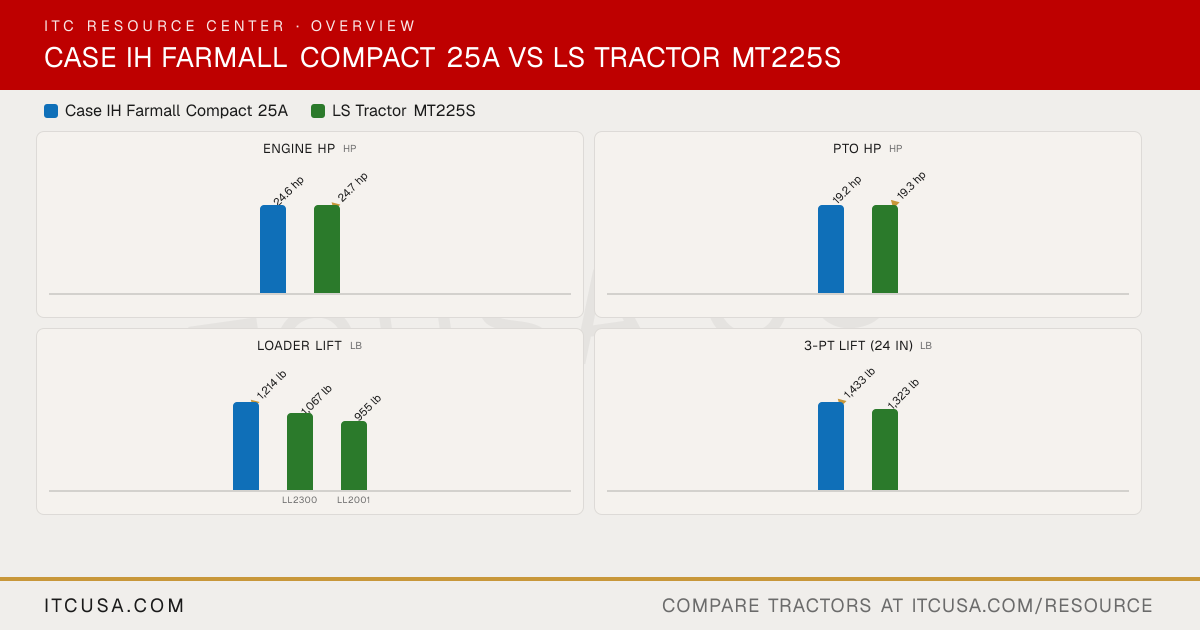

The headline numbers at a glance.

Case IH Farmall Compact 25ALS Tractor MT225S

Engine HPhp

24.6 hp

▲24.7 hp

PTO HPhp

19.2 hp

▲19.3 hp

Weightlb

—

Loader Liftlb

▲1,214 lb

1,067 lb

955 lb

LL2300LL2001

3-Pt Lift (24 in)lb

▲1,433 lb

1,323 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 25A	LS TractorMT225S


PTO Power	19.2 hp	19.3 hp
Alternator	Not Published	50 A, 12 V
Air Cleaner	Not Published	Dry
Engine Type	Diesel, naturally aspirated	3-cylinder, Indirect Injection (IDI), Swirl chamber
Fuel System	Not Published	In-line injection pump
Displacement	79.3 in³	77.3 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2800 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Not Published	YANMAR
Engine Power (Gross)	24.6 hp	24.7 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Not Published	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Not Published	Engine-driven
Steering Flow	Not Published	3.7 gpm
Implement Flow	7.9 gpm	5.6 gpm
Total Hydraulic Flow	Not Published	9.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	0 (standard) / 1 (optional) (DIA)	Not Published
Overall Hydraulic Pump Flow	Not Published	9.3 gpm
No. of Optional Remote Valves	1	1 pair (optional)
No. of Standard Remote Valves	0	Not Applicable

PTO Rear	540 rpm	540 rpm
PTO Type	Not Published	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	1,433 lb @ 24 in behind pin	1,896 lb
Mid-PTO Availability	Optional mid-PTO (2,000 rpm)	Optional (2500 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	1,433 lb @ 24 in behind pin	1,323 lb

R3 Turf - Rear	Not Published	31X15.50-15
R3 Turf - Front	Not Published	22X8.50-12
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	12-16.5
R4 Industrial - Front	Not Published	23X8.50-12
R1 Agricultural - Rear	Not Published	11.2-16
R1 Agricultural - Front	Not Published	7-12

Coolant Capacity	Not Published	0.9 gal
Crankcase Capacity	Not Published	0.8 gal
Fuel Tank Capacity	7.4 gal	6.6 gal
Front Axle Fluid Capacity	Not Published	0.8 gal
Transmission / Hydraulic System Capacity	Not Published	4.5 gal

Loader Lift Height	94.3 in	84.4 in
Loader Breakout Force	1,926 lb	LL2300: 2,290 lb; LL2001: Not Published
Quick Attach Loader System	L330	LL2300: Bobcat-type (skid-steer style) quick attach bucket carrier; LL2001: Not Published
Loader Lift Capacity (Full Height)	1,214 lb	LL2300: 1,067 lb; LL2001: 955 lb

Clutch	Dry clutch	Not Applicable
No. of Speeds	12F/12R (mechanical shuttle); Hydrostatic (optional)	3 ranges
Transmission Type	12x12 Mechanical shuttle with synchro shift (dry clutch) (standard); Hydrostatic (optional)	Hydrostatic Drive
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Brakes	Not Published	Wet, multi-disc
Steering	Not Published	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.9 in	63.4 in
Overall Width	Not Published	48.7 in
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	88.2 in	86.4 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	68.2 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	117.2 in	111.9 in

Case IH Farmall Compact 25A vs LS Tractor MT225S: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 25A or the LS Tractor MT225S?: The LS Tractor MT225S leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall Compact 25A.
Which has more PTO horsepower, the Case IH Farmall Compact 25A or the LS Tractor MT225S?: The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 19.2 hp hp for the Case IH Farmall Compact 25A.
Which has more loader lift capacity, the Case IH Farmall Compact 25A or the LS Tractor MT225S?: The Case IH Farmall Compact 25A leads on loader lift at 1,214 lb lb, compared to 1,067 lb lb for the LS Tractor MT225S.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 25A or the LS Tractor MT225S?: The Case IH Farmall Compact 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,323 lb lb for the LS Tractor MT225S.
