Which has more horsepower, the Case IH Farmall Compact 25A or the LS Tractor XJ2025H?

The LS Tractor XJ2025H leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall Compact 25A.

Which has more PTO horsepower, the Case IH Farmall Compact 25A or the LS Tractor XJ2025H?

The Case IH Farmall Compact 25A leads on pto hp at 19.2 hp hp, compared to 18.5 hp hp for the LS Tractor XJ2025H.

Which has more loader lift capacity, the Case IH Farmall Compact 25A or the LS Tractor XJ2025H?

The LS Tractor XJ2025H leads on loader lift at 1,276 lb lb, compared to 1,214 lb lb for the Case IH Farmall Compact 25A.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 25A or the LS Tractor XJ2025H?

The Case IH Farmall Compact 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.

Case IH Farmall Compact 25A vs LS Tractor XJ2025H

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Case IH Farmall Compact 25A leads 4 categories to 3. Machine pages: Case IH Farmall Compact 25A and LS Tractor XJ2025H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 25A	LS Tractor XJ2025H
Engine HP (hp)	24.6 hp	▲ 24.7 hp
PTO HP (hp)	▲ 19.2 hp	18.5 hp
Loader Lift (lb)	1,214 lb	▲ 1,276 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,058 lb
Lift Height (in)	▲ 94.3 in	85.7 in
Breakout Force (lbf)	▲ 1,926 lbf	1,687 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 8.5 gpm

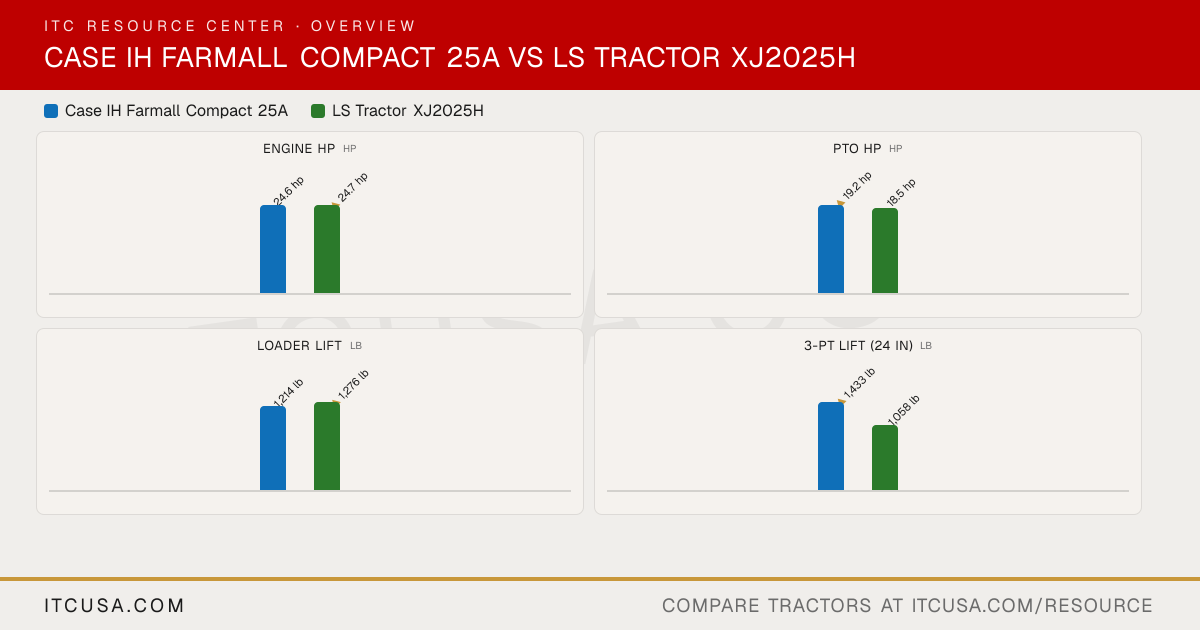

The headline numbers at a glance.

Case IH Farmall Compact 25ALS Tractor XJ2025H

Engine HPhp

24.6 hp

▲24.7 hp

PTO HPhp

▲19.2 hp

18.5 hp

Weightlb

—

Loader Liftlb

1,214 lb

▲1,276 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 25A	LS TractorXJ2025H


PTO Power	19.2 hp	18.5 hp
Alternator	Not Published	50 A, 12 V
Air Cleaner	Not Published	Dry
Engine Type	Diesel, naturally aspirated	3-cylinder, Indirect-injection (swirl chamber), Water-cooled
Fuel System	Not Published	Indirect injection (in-line pump)
Displacement	79.3 in³	80.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2500 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	Not Published	Mitsubishi
Engine Power (Gross)	24.6 hp	24.7 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Not Published	Transmission drive pump
Steering Flow	Not Published	2.6 gpm
Implement Flow	7.9 gpm	5.9 gpm
Total Hydraulic Flow	Not Published	8.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	0 (standard) / 1 (optional) (DIA)	Not Published
Overall Hydraulic Pump Flow	Not Published	8.5 gpm
No. of Optional Remote Valves	1	1 pair (2 outlets; optional)
No. of Standard Remote Valves	0	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Not Published	Electro-hydraulic rear PTO / mid-PTO
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	1,433 lb @ 24 in behind pin	1,433 lb
Mid-PTO Availability	Optional mid-PTO (2,000 rpm)	Standard (2000 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	1,433 lb @ 24 in behind pin	1,058 lb

R3 Turf - Rear	Not Published	320/65-16.5
R3 Turf - Front	Not Published	23X8.50-12
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	305/70-16.5 (6PR)
R4 Industrial - Front	Not Published	23X8.50-12 (4PR)
R1 Agricultural - Rear	Not Published	255/75-15.3
R1 Agricultural - Front	Not Published	23X10.50-12

Coolant Capacity	Not Published	1.0 gal
Crankcase Capacity	Not Published	1.1 gal
Fuel Tank Capacity	7.4 gal	6.6 gal
Front Axle Fluid Capacity	Not Published	0.8 gal
Transmission / Hydraulic System Capacity	Not Published	5.3 gal

Loader Lift Height	94.3 in	85.7 in
Loader Breakout Force	1,926 lb	1,687 lb
Quick Attach Loader System	L330	LL2102: Quick-attach front end loader
Loader Lift Capacity (Full Height)	1,214 lb	1,276 lb

Clutch	Dry clutch	Not Applicable
No. of Speeds	12F/12R (mechanical shuttle); Hydrostatic (optional)	2 ranges
Transmission Type	12x12 Mechanical shuttle with synchro shift (dry clutch) (standard); Hydrostatic (optional)	Hydrostatic Drive
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Brakes	Not Published	Wet, multi-disc
Steering	Not Published	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Front wheel mechanical assist (4WD)
Drawbar Capacity	Not Published	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.9 in	59 in
Overall Width	Not Published	44.9 in
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	88.2 in	84.5 in
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	68.2 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	117.2 in	103 in

Case IH Farmall Compact 25A vs LS Tractor XJ2025H: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 25A or the LS Tractor XJ2025H?: The LS Tractor XJ2025H leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall Compact 25A.
Which has more PTO horsepower, the Case IH Farmall Compact 25A or the LS Tractor XJ2025H?: The Case IH Farmall Compact 25A leads on pto hp at 19.2 hp hp, compared to 18.5 hp hp for the LS Tractor XJ2025H.
Which has more loader lift capacity, the Case IH Farmall Compact 25A or the LS Tractor XJ2025H?: The LS Tractor XJ2025H leads on loader lift at 1,276 lb lb, compared to 1,214 lb lb for the Case IH Farmall Compact 25A.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 25A or the LS Tractor XJ2025H?: The Case IH Farmall Compact 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.
