Case IH Farmall Compact 40A vs Kioti CK4010

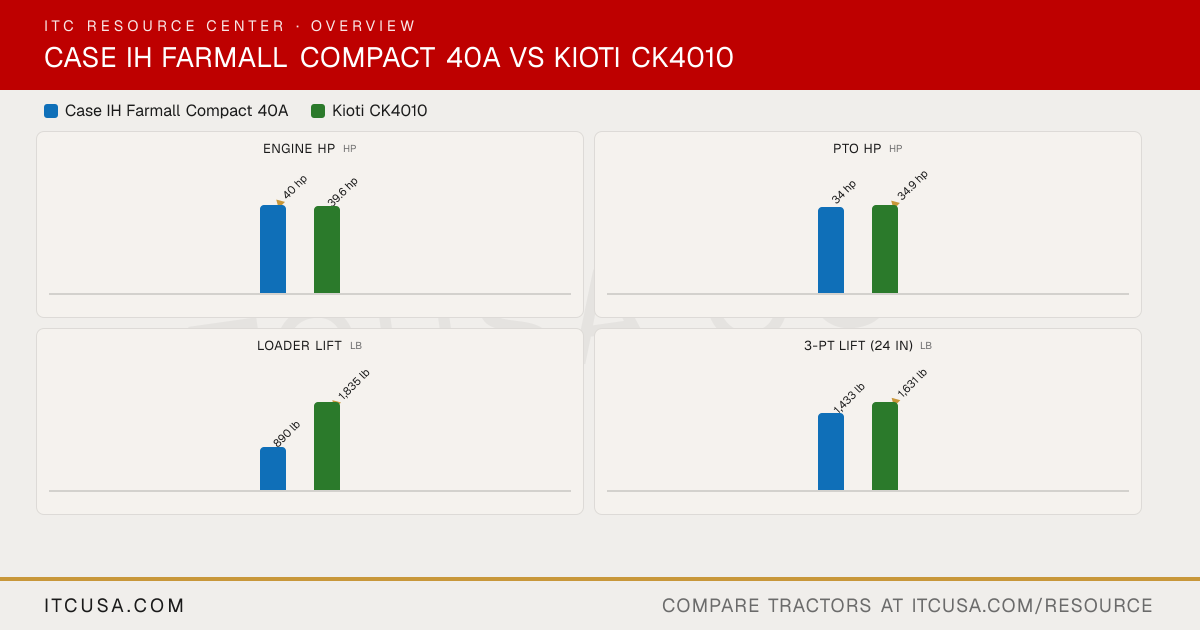

Across 7 measurable specs, the Kioti CK4010 leads 6 categories to 1. Machine pages: Case IH Farmall Compact 40A and Kioti CK4010.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 40A	KiotiCK4010

▶Engine
PTO Power	34 hp	34.9 hp
Alternator	Not Published	75 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, turbocharged	In-line vertical, water-cooled 4-cycle diesel, CRDI
Fuel System	Common Rail Direct Injection	Common rail direct injection (CRDI)
Displacement	115.9 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	Not Published	2600 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	Not Published	KIOTI (Daedong)
Engine Power (Gross)	40 hp	39.6 hp
Engine Emissions Constraints	Tier 4	Not Published
▶Weight
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	2 years bumper-to-bumper + 4 years powertrain (6 years total)	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Not Published	Gear
Steering Flow	Not Published	Not Published
Implement Flow	8.2 gpm	Not Published
Total Hydraulic Flow	Not Published	11.7 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	11.7 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Optional (2 valves/4 ports)
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm (1.375)
PTO Type	Independent 540-rpm rear PTO with electro-hydraulic engagement (standard)	Live
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	Not Published	1,631 lb at 24 in
Mid-PTO Availability	Optional mid-mount PTO; 2,000 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Not Published	Category I
Hitch Lift Capacity (at 24”)	1,433 lb @ 24 in behind ball ends	1,631 lb
▶Tire Options
R3 Turf - Rear	Not Published	41X14-20/4
R3 Turf - Front	Not Published	28X8.5-15/6
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	15-19.5
R4 Industrial - Front	Not Published	27X8.5-15
R1 Agricultural - Rear	Not Published	11.2-24
R1 Agricultural - Front	Not Published	7-16
▶Fluid Capacity
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	Not Published	9.0 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
▶Loader & Attachments
Loader Lift Height	Up to 98 in	98.4 in
Loader Breakout Force	Up to 1,900 lb	3,464 lb
Quick Attach Loader System	Not Published	Not Published
Loader Lift Capacity (Full Height)	Up to 890 lb	1,835 lb
▶Transmission & Drivetrain
Clutch	Not Published	Dry dual stage
No. of Speeds	12F/12R (mechanical); infinite ground speeds (HST)	9F/3R
Transmission Type	12x12 mechanical shuttle with synchro shift (standard); 3-range hydrostatic (HST) (optional)	Manual
Max Travel Speed (Forward)	Not Published	14.63 mph
Max Travel Speed (Reverse)	Not Published	9.56 mph
Differential Lock & Limited Slip Options	Not Published	Rear differential lock (standard)
▶Chassis, Steering & Controls
Brakes	Not Published	Wet multi disc
Steering	Not Published	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	Not Published	65.7 in
Overall Width	Not Published	55.1 in (R1); 63.1 in (R4)
Ground Clearance	Not Published	13.4 in
Height to Top of ROPS	Not Published	99.2 in
Height to Top of Cab Model	Not Applicable	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	Not Published	120.9 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Case IH Farmall Compact 40A vs Kioti CK4010: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 40A or the Kioti CK4010?

The Case IH Farmall Compact 40A leads on engine hp at 40 hp hp, compared to 39.6 hp hp for the Kioti CK4010.

Which has more PTO horsepower, the Case IH Farmall Compact 40A or the Kioti CK4010?

The Kioti CK4010 leads on pto hp at 34.9 hp hp, compared to 34 hp hp for the Case IH Farmall Compact 40A.

Which has more loader lift capacity, the Case IH Farmall Compact 40A or the Kioti CK4010?

The Kioti CK4010 leads on loader lift at 1,835 lb lb, compared to 890 lb lb for the Case IH Farmall Compact 40A.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 40A or the Kioti CK4010?

The Kioti CK4010 leads on 3-pt lift (24 in) at 1,631 lb lb, compared to 1,433 lb lb for the Case IH Farmall Compact 40A.
