Case IH Farmall Compact 40A vs Kioti DK4220SEH

Across 7 measurable specs, the Kioti DK4220SEH leads 5 categories to 2. Machine pages: Case IH Farmall Compact 40A and Kioti DK4220SEH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 40A	KiotiDK4220SEH

▶Engine
PTO Power	34 hp	29.1 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Dry element
Engine Type	Diesel, turbocharged	3-Cyl Diesel (Naturally Aspirated)
Fuel System	Common Rail Direct Injection	Not Published
Displacement	115.9 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	Not Published	2600 rpm
Cooling System Type	Not Published	Liquid-cooled
Engine Manufacturer	Not Published	KIOTI (Daedong)
Engine Power (Gross)	40 hp	39.6 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	2 years bumper-to-bumper + 4 years powertrain (6 years total)	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Not Published	Gear
Steering Flow	Not Published	6.87 gpm
Implement Flow	8.2 gpm	9.62 gpm
Total Hydraulic Flow	Not Published	16.49 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	16.49 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent 540-rpm rear PTO with electro-hydraulic engagement (standard)	Independent
Lift Control Type	Not Published	Position
Hitch Lift Capacity	Not Published	2,998 lbs @ lower link ball
Mid-PTO Availability	Optional mid-mount PTO; 2,000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Not Published	Category I
Hitch Lift Capacity (at 24”)	1,433 lb @ 24 in behind ball ends	2,716 lbs @ 24 in behind
▶Tire Options
R3 Turf - Rear	Not Published	5.7 gal-16.1
R3 Turf - Front	Not Published	29X12.5-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	14.9-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	Not Published	13.6-24
R1 Agricultural - Front	Not Published	8.0-16
▶Fluid Capacity
Coolant Capacity	Not Published	2.1 gal
Crankcase Capacity	Not Published	1.95 gal
Fuel Tank Capacity	Not Published	12.7 gal
Front Axle Fluid Capacity	Not Published	1.48 gal
Transmission / Hydraulic System Capacity	Not Published	11.4 gal
▶Loader & Attachments
Loader Lift Height	Up to 98 in	107.7 in
Loader Breakout Force	Up to 1,900 lb	3,895.0 lb
Quick Attach Loader System	Not Published	Quick attach (QA) bucket
Loader Lift Capacity (Full Height)	Up to 890 lb	2,474.0 lb
▶Transmission & Drivetrain
Clutch	Not Published	None
No. of Speeds	12F/12R (mechanical); infinite ground speeds (HST)	3 ranges w/ infinite speeds
Transmission Type	12x12 mechanical shuttle with synchro shift (standard); 3-range hydrostatic (HST) (optional)	Hydrostatic
Max Travel Speed (Forward)	Not Published	18.45 mph
Max Travel Speed (Reverse)	Not Published	12.92 mph
Differential Lock & Limited Slip Options	Not Published	Differential lock: Rear standard
▶Chassis, Steering & Controls
Brakes	Not Published	Wet Disc Type
Steering	Not Published	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Mechanical 4WD
Drawbar Capacity	Not Published	Max. Drawbar vertical load: 1,655 lbs; Max. Trailer loading weight: 9,480 lbs
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Deluxe suspension seat
▶Dimensions & Maneuverability
Wheelbase	Not Published	71.3 in
Overall Width	Not Published	62.8 in
Ground Clearance	Not Published	14.5 in
Height to Top of ROPS	Not Published	96.8 in
Height to Top of Cab Model	Not Applicable	93.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	Not Published	125.5 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

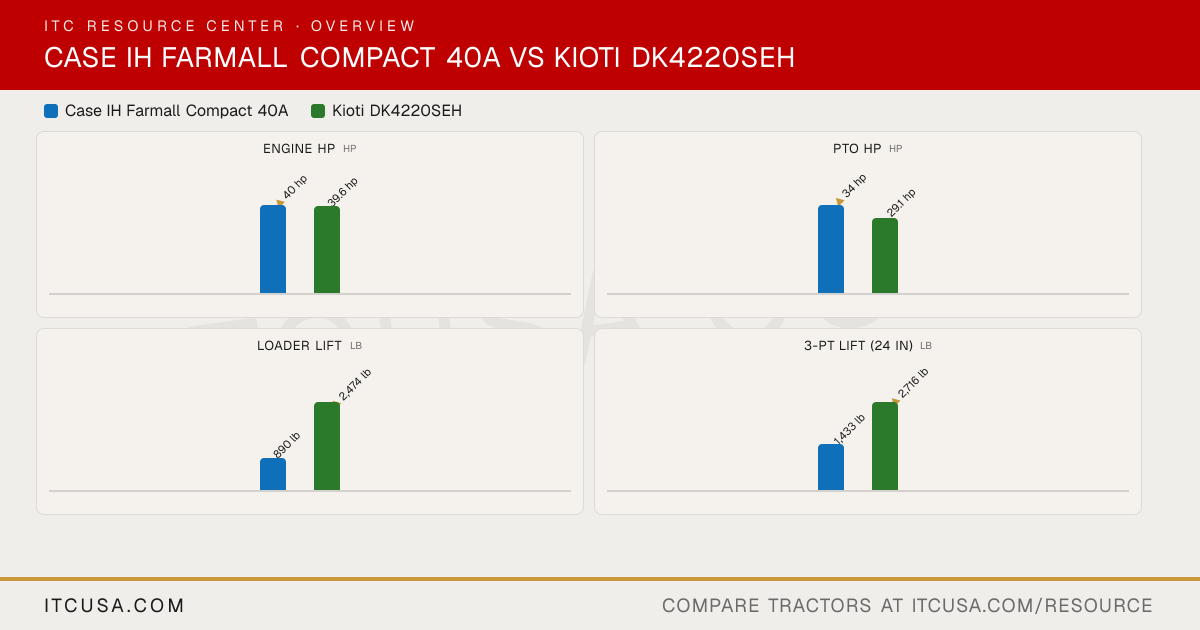

Case IH Farmall Compact 40A vs Kioti DK4220SEH: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 40A or the Kioti DK4220SEH?

The Case IH Farmall Compact 40A leads on engine hp at 40 hp hp, compared to 39.6 hp hp for the Kioti DK4220SEH.

Which has more PTO horsepower, the Case IH Farmall Compact 40A or the Kioti DK4220SEH?

The Case IH Farmall Compact 40A leads on pto hp at 34 hp hp, compared to 29.1 hp hp for the Kioti DK4220SEH.

Which has more loader lift capacity, the Case IH Farmall Compact 40A or the Kioti DK4220SEH?

The Kioti DK4220SEH leads on loader lift at 2,474 lb lb, compared to 890 lb lb for the Case IH Farmall Compact 40A.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 40A or the Kioti DK4220SEH?

The Kioti DK4220SEH leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 1,433 lb lb for the Case IH Farmall Compact 40A.
