Across 3 measurable specs, this matchup is a dead heat: 1 categories to the Case IH Farmall Compact 40A, 1 to the Massey Ferguson MF 1740 E, 1 tied. Machine pages: Case IH Farmall Compact 40A and Massey Ferguson MF 1740 E .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

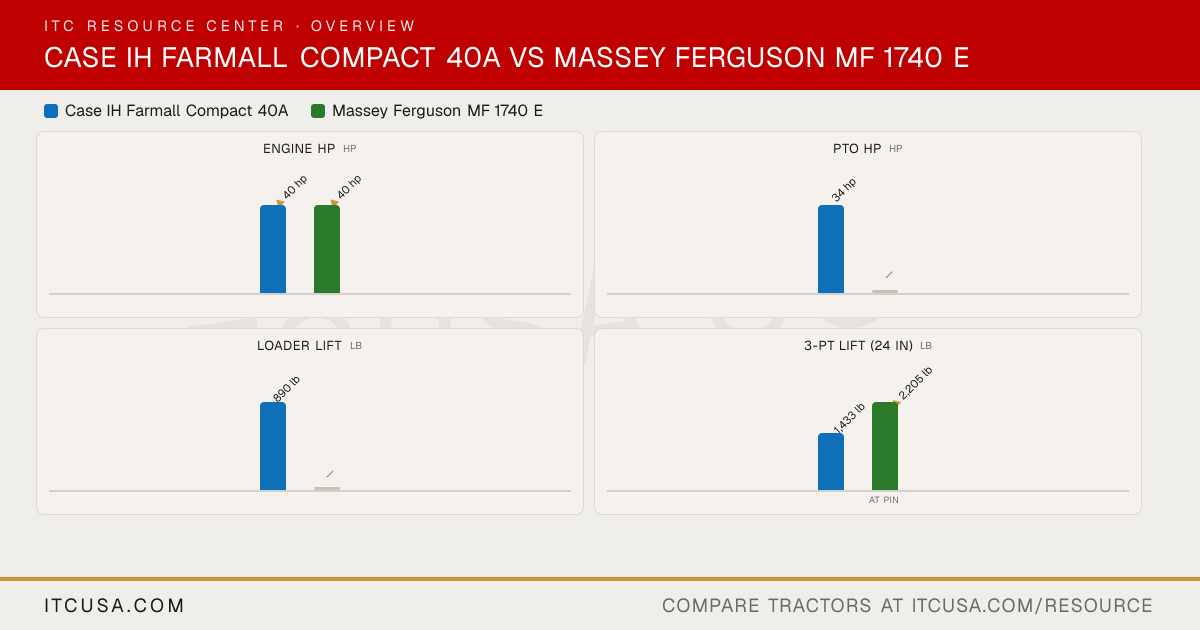

Category Verdict Spec Case IH Farmall Compact 40A Massey Ferguson MF 1740 E Engine HP (hp) 40 hp 40 hp PTO HP (hp) 34 hp — Loader Lift (lb) 890 lb — 3-Pt Lift (24 in) (lb) 1,433 lb ▲ 2,205 lbLift Height (in) 98 in — Breakout Force (lbf) 1,900 lbf — Hydraulic Flow (gpm) ▲ 8.2 gpm7.5 gpm
Overview Loader Work PTO Work
The headline numbers at a glance.
Case IH Farmall Compact 40A Massey Ferguson MF 1740 E
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Case IH Farmall Compact 40A Massey Ferguson MF 1740 E
▶ EnginePTO Power 34 hp Not Published Alternator Not Published Not Published Air Cleaner Not Published Not Published Engine Type Diesel, turbocharged 3-cylinder turbocharged diesel Fuel System Common Rail Direct Injection Not Published Displacement 115.9 in³ 111.4 in³ No. of Cylinders 3 3 Rated Engine Speed Not Published Not Published Cooling System Type Not Published Not Published Engine Manufacturer Not Published Massey Ferguson (AGCO) Engine Power (Gross) 40 hp 40 hp Engine Emissions Constraints Tier 4 Stage V ▶ WeightWeight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Applicable Not Applicable ▶ WarrantyWarranty Length & Coverage 2 years bumper-to-bumper + 4 years powertrain (6 years total) Not Published ▶ HydraulicsPump Type Not Published Not Published Steering Flow Not Published Not Published Implement Flow 8.2 gpm 7.5 gpm Total Hydraulic Flow Not Published Not Published Hydraulic System Type Not Published Open-centre Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow Not Published Not Published No. of Optional Remote Valves Not Published Not Published No. of Standard Remote Valves Not Published Up to 2 ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent 540-rpm rear PTO with electro-hydraulic engagement (standard) Independent Lift Control Type Not Published Not Published Hitch Lift Capacity Not Published 2,205 lb Mid-PTO Availability Optional mid-mount PTO; 2,000 rpm Not Applicable Category, 3-Point Hitch Not Published Category I Hitch Lift Capacity (at 24”) 1,433 lb @ 24 in behind ball ends Not Published ▶ Tire OptionsR3 Turf - Rear Not Published 11.2R24 R3 Turf - Front Not Published 7.0R16 Tire Size & Options Not Published R1 Agricultural, R3 Turf R4 Industrial - Rear Not Published Not Applicable R4 Industrial - Front Not Published Not Applicable R1 Agricultural - Rear Not Published 11.2R24 R1 Agricultural - Front Not Published 7.0R16 ▶ Fluid CapacityCoolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Fuel Tank Capacity Not Published 10.6 gal Front Axle Fluid Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published ▶ Loader & AttachmentsLoader Lift Height Up to 98 in Not Published Loader Breakout Force Up to 1,900 lb Not Published Quick Attach Loader System Not Published Not Published Loader Lift Capacity (Full Height) Up to 890 lb Not Published ▶ Transmission & DrivetrainClutch Not Published Not Published No. of Speeds 12F/12R (mechanical); infinite ground speeds (HST) 8F / 8R Transmission Type 12x12 mechanical shuttle with synchro shift (standard); 3-range hydrostatic (HST) (optional) Mechanical Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Not Published Differential lock ▶ Chassis, Steering & ControlsBrakes Not Published Internal wet disc Steering Not Published Not Published Frame Type Not Published Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Not Published ▶ Dimensions & ManeuverabilityWheelbase Not Published 65.9 in Overall Width Not Published 56.1-59.4 in (1,425-59.4 in) Ground Clearance Not Published Not Published Height to Top of ROPS Not Published 93.9-94.5 in (2,385-94.5 in) Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Overall Length with 3-Point Hitch Not Published 121.1 in
Case IH Farmall Compact 40A vs Massey Ferguson MF 1740 E: Quick Answers
Which has more horsepower, the Case IH Farmall Compact 40A or the Massey Ferguson MF 1740 E? They are effectively tied: both machines are rated at 40 hp hp for engine hp.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 40A or the Massey Ferguson MF 1740 E? The Massey Ferguson MF 1740 E leads on 3-pt lift (24 in) at 2,205 lb lb, compared to 1,433 lb lb for the Case IH Farmall Compact 40A. More Head-to-Heads
