Case IH Farmall Compact 45C vs Kioti DK4710

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Kioti DK4710 leads 5 categories to 4. Machine pages: Case IH Farmall Compact 45C and Kioti DK4710.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 45C	Kioti DK4710
Engine HP (hp)	▲ 45 hp	44.9 hp
PTO HP (hp)	▲ 36 hp	33.4 hp
Weight (lb)	3,770 lb	▲ 4,043.3 lb
Loader Lift (lb)	▲ 2,500 lb	2,474 lb
3-Pt Lift (24 in) (lb)	2,469 lb	▲ 2,716 lb
Lift Height (in)	▲ 112 in	105.7 in
Breakout Force (lbf)	3,114 lbf	▲ 3,895 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 16.5 gpm
Travel Speed (mph)	17.9 mph	▲ 18.5 mph

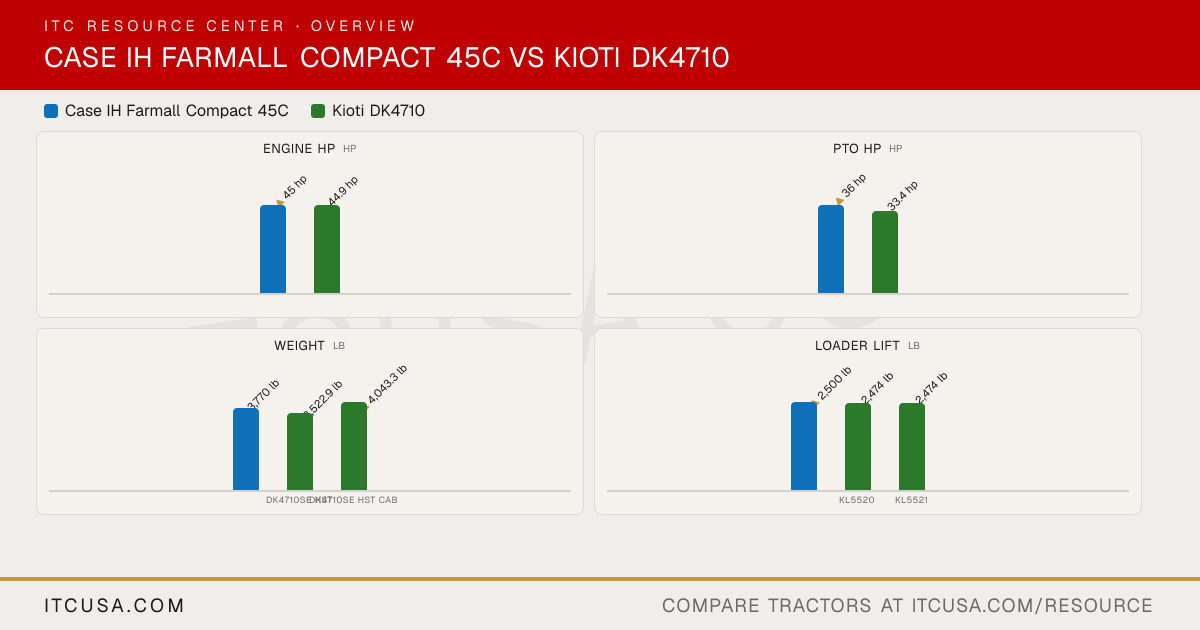

The headline numbers at a glance.

Case IH Farmall Compact 45CKioti DK4710

Engine HPhp

▲45 hp

44.9 hp

PTO HPhp

▲36 hp

33.4 hp

Weightlb

3,770 lb

3,522.9 lb

▲4,043.3 lb

DK4710SE HSTDK4710SE HST Cab

Loader Liftlb

▲2,500 lb

2,474 lb

KL5520KL5521

3-Pt Lift (24 in)lb

2,469 lb

▲2,716 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 45C	KiotiDK4710


Engine Manufacturer	LS Mtron	Not Published
Engine Model	L3C19-T	3H-TH4C
Engine Type	Diesel, 3-cylinder, turbocharged	3-cylinder, in-line vertical, water-cooled 4-cycle diesel, CRDI
No. of Cylinders	3	3
Displacement	116 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	44.9 hp
PTO Power	36 hp	33.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Replaceable dry element	Not Published
Fuel System	Common rail direct injection	Common rail direct injection (CRDI)
Alternator	70 A	Not Published

Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	Not Published
Steering Flow	5.3 gpm	Not Published
Total Hydraulic Flow	Not Published	16.49 gpm
Overall Hydraulic Pump Flow	Not Published	16.49 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1 (2 port)
No. of Optional Remote Valves	2	1

Fuel Tank Capacity	10.5 gal	12.7 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,756 lb	Not Published
Hitch Lift Capacity (at 24”)	2,469 lb	2,716 lb
Lift Control Type	Mechanical draft control (MDC)	Position

Transmission Type	3-range hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	infinitely variable, 3 ranges	3 range (hydrostatic, infinite speeds)
Max Travel Speed (Forward)	17.9 mph	18.5 mph
Max Travel Speed (Reverse)	Not Published	12.9 mph
Clutch	Not Applicable	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	Adjustable suspension seat	Deluxe adjustable suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	128.1 in	125.5 in
Overall Width	69.1 in	62.8 in
Wheelbase	73.2 in	71.3 in
Ground Clearance	Not Published	14.5 in
Min. Turn Radius without Brakes	Not Published	8.63 ft (with brake applied)
Height to Top of ROPS	97.1 in	96.8 in
Height to Top of ROPS (folded)	78.6 in	Not Published
Height to Top of Cab Model	93.3 in	93 in

Tractor Weight (Base)	3,770 lb	DK4710SE HST: 3,522.9 lb; DK4710SE HST Cab: 4,043.3 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural: 8-16 front, 13.6-24 rear; R3 Turf: 29-12.5-15 front, 21.5L-16.1 rear; R4 Industrial: 10-16.5 front, 14.9-24 rear
R1 Agricultural - Front	9.5-16	8-16
R1 Agricultural - Rear	13.6-24	13.6-24
R3 Turf - Front	28x8.50-15	29-12.5-15
R3 Turf - Rear	41x14.00-20	21.5L-16.1
R4 Industrial - Front	12-16.5	10-16.5
R4 Industrial - Rear	17.5L-24	14.9-24

Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L360A)	Quick attach (QA) bucket, 66 in or 72 in
Loader Model	L360A	KL5520 (ROPS); KL5521 (Cab)
Loader Lift Height	112 in	KL5520: 105.7 in; KL5521: 105.7 in
Loader Lift Capacity (Full Height)	2,500 lb	KL5520: 2,474 lb; KL5521: 2,474 lb
Loader Breakout Force	3,114 lbf	KL5520: 3,895 lb; KL5521: 3,895 lb

Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	Not Published

Find a Case IH dealer near you Find a KIOTI dealer near you

Case IH Farmall Compact 45C vs Kioti DK4710: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 45C or the Kioti DK4710?: The Case IH Farmall Compact 45C leads on engine hp at 45 hp hp, compared to 44.9 hp hp for the Kioti DK4710.
Which has more PTO horsepower, the Case IH Farmall Compact 45C or the Kioti DK4710?: The Case IH Farmall Compact 45C leads on pto hp at 36 hp hp, compared to 33.4 hp hp for the Kioti DK4710.
Which is heavier, the Case IH Farmall Compact 45C or the Kioti DK4710?: The Kioti DK4710 leads on weight at 4,043.3 lb lb, compared to 3,770 lb lb for the Case IH Farmall Compact 45C.
Which has more loader lift capacity, the Case IH Farmall Compact 45C or the Kioti DK4710?: The Case IH Farmall Compact 45C leads on loader lift at 2,500 lb lb, compared to 2,474 lb lb for the Kioti DK4710.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 45C or the Kioti DK4710?: The Kioti DK4710 leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,469 lb lb for the Case IH Farmall Compact 45C.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall Compact 45C	Kioti DK4710
Engine HP (hp)	▲ 45 hp	44.9 hp
PTO HP (hp)	▲ 36 hp	33.4 hp
Weight (lb)	3,770 lb	▲ 4,043.3 lb
Loader Lift (lb)	▲ 2,500 lb	2,474 lb
3-Pt Lift (24 in) (lb)	2,469 lb	▲ 2,716 lb
Lift Height (in)	▲ 112 in	105.7 in
Breakout Force (lbf)	3,114 lbf	▲ 3,895 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 16.5 gpm
Travel Speed (mph)	17.9 mph	▲ 18.5 mph

The headline numbers at a glance.

Case IH Farmall Compact 45CKioti DK4710

Engine HPhp

▲45 hp

44.9 hp

PTO HPhp

▲36 hp

33.4 hp

Weightlb

3,770 lb

3,522.9 lb

▲4,043.3 lb

DK4710SE HSTDK4710SE HST Cab

Loader Liftlb

▲2,500 lb

2,474 lb

KL5520KL5521

3-Pt Lift (24 in)lb

2,469 lb

▲2,716 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 45C	KiotiDK4710


Engine Manufacturer	LS Mtron	Not Published
Engine Model	L3C19-T	3H-TH4C
Engine Type	Diesel, 3-cylinder, turbocharged	3-cylinder, in-line vertical, water-cooled 4-cycle diesel, CRDI
No. of Cylinders	3	3
Displacement	116 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	44.9 hp
PTO Power	36 hp	33.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Replaceable dry element	Not Published
Fuel System	Common rail direct injection	Common rail direct injection (CRDI)
Alternator	70 A	Not Published

Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	Not Published
Steering Flow	5.3 gpm	Not Published
Total Hydraulic Flow	Not Published	16.49 gpm
Overall Hydraulic Pump Flow	Not Published	16.49 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1 (2 port)
No. of Optional Remote Valves	2	1

Fuel Tank Capacity	10.5 gal	12.7 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,756 lb	Not Published
Hitch Lift Capacity (at 24”)	2,469 lb	2,716 lb
Lift Control Type	Mechanical draft control (MDC)	Position

Transmission Type	3-range hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	infinitely variable, 3 ranges	3 range (hydrostatic, infinite speeds)
Max Travel Speed (Forward)	17.9 mph	18.5 mph
Max Travel Speed (Reverse)	Not Published	12.9 mph
Clutch	Not Applicable	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	Adjustable suspension seat	Deluxe adjustable suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	128.1 in	125.5 in
Overall Width	69.1 in	62.8 in
Wheelbase	73.2 in	71.3 in
Ground Clearance	Not Published	14.5 in
Min. Turn Radius without Brakes	Not Published	8.63 ft (with brake applied)
Height to Top of ROPS	97.1 in	96.8 in
Height to Top of ROPS (folded)	78.6 in	Not Published
Height to Top of Cab Model	93.3 in	93 in

Tractor Weight (Base)	3,770 lb	DK4710SE HST: 3,522.9 lb; DK4710SE HST Cab: 4,043.3 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural: 8-16 front, 13.6-24 rear; R3 Turf: 29-12.5-15 front, 21.5L-16.1 rear; R4 Industrial: 10-16.5 front, 14.9-24 rear
R1 Agricultural - Front	9.5-16	8-16
R1 Agricultural - Rear	13.6-24	13.6-24
R3 Turf - Front	28x8.50-15	29-12.5-15
R3 Turf - Rear	41x14.00-20	21.5L-16.1
R4 Industrial - Front	12-16.5	10-16.5
R4 Industrial - Rear	17.5L-24	14.9-24

Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L360A)	Quick attach (QA) bucket, 66 in or 72 in
Loader Model	L360A	KL5520 (ROPS); KL5521 (Cab)
Loader Lift Height	112 in	KL5520: 105.7 in; KL5521: 105.7 in
Loader Lift Capacity (Full Height)	2,500 lb	KL5520: 2,474 lb; KL5521: 2,474 lb
Loader Breakout Force	3,114 lbf	KL5520: 3,895 lb; KL5521: 3,895 lb

Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	Not Published

Find a Case IH dealer near you Find a KIOTI dealer near you

Case IH Farmall Compact 45C vs Kioti DK4710: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 45C or the Kioti DK4710?

The Case IH Farmall Compact 45C leads on engine hp at 45 hp hp, compared to 44.9 hp hp for the Kioti DK4710.

Which has more PTO horsepower, the Case IH Farmall Compact 45C or the Kioti DK4710?

The Case IH Farmall Compact 45C leads on pto hp at 36 hp hp, compared to 33.4 hp hp for the Kioti DK4710.

Which is heavier, the Case IH Farmall Compact 45C or the Kioti DK4710?

The Kioti DK4710 leads on weight at 4,043.3 lb lb, compared to 3,770 lb lb for the Case IH Farmall Compact 45C.

Which has more loader lift capacity, the Case IH Farmall Compact 45C or the Kioti DK4710?

The Case IH Farmall Compact 45C leads on loader lift at 2,500 lb lb, compared to 2,474 lb lb for the Kioti DK4710.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 45C or the Kioti DK4710?

The Kioti DK4710 leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,469 lb lb for the Case IH Farmall Compact 45C.
