Case IH Farmall Compact 45C vs Kioti NS4710

Across 7 measurable specs, this matchup is a dead heat: 3 categories to the Case IH Farmall Compact 45C, 3 to the Kioti NS4710, 1 tied. Machine pages: Case IH Farmall Compact 45C and Kioti NS4710.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

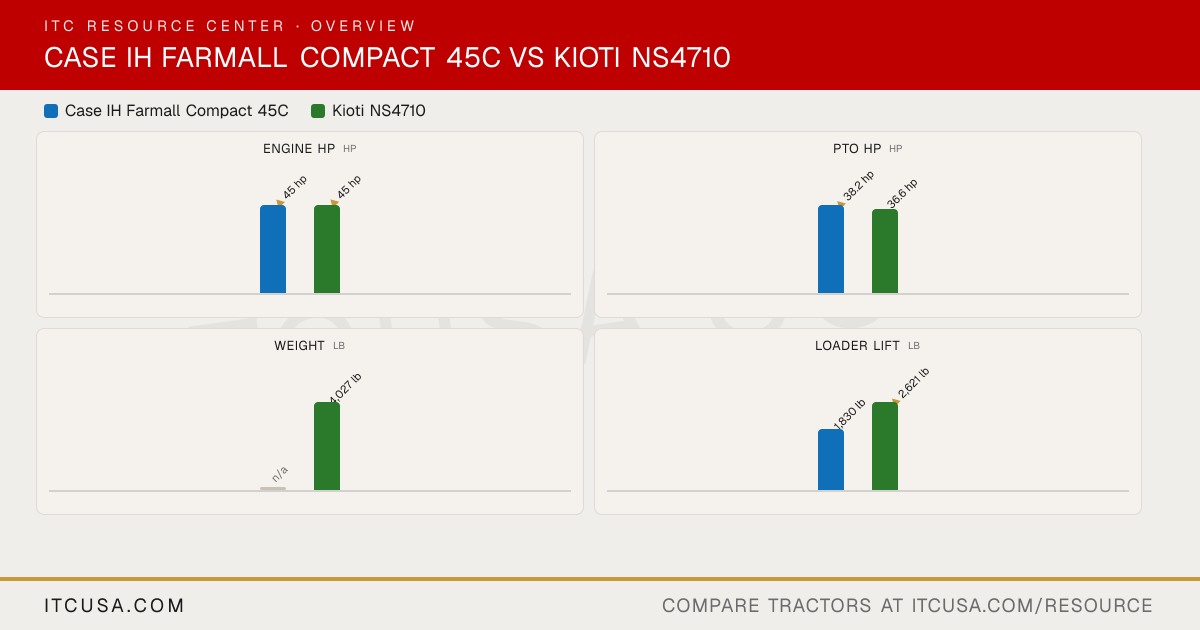

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 45C	KiotiNS4710

▶Engine
PTO Power	38.2 hp	36.6 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, naturally aspirated	In-line Vertical, Water-cooled 4-cycle Turbo Diesel, CRDI (Engine model: 3HT-S4TM45A)
Fuel System	Not Published	Common Rail Direct Injection (CRDI)
Displacement	115.9 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	Not Published	KIOTI (Daedong)
Engine Power (Gross)	45 hp	45 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	4,027.0 (1,827.0) (Weight w/AG tires)
Weight with Cab and Loader	Not Published	Not Applicable
▶Warranty
Warranty Length & Coverage	Not Published	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Not Published	Gear
Steering Flow	Not Published	6.87 gpm
Implement Flow	8.2 gpm	9.61 gpm
Total Hydraulic Flow	Not Published	16.48 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	16.48 gpm
No. of Optional Remote Valves	Non-cab: 2	1
No. of Standard Remote Valves	Cab: 2; Non-cab: 1	1
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Not Published	Independent
Lift Control Type	Mechanical Draft Control (MDC)	Position, Draft, Mixed Control
Hitch Lift Capacity	2,756 lb @ 24 in behind pin	2,940 lb
Mid-PTO Availability	Optional mid-PTO, 2,000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,756 lb @ 24 in behind pin	2,493 lb
▶Tire Options
R3 Turf - Rear	Not Published	5.7 gal-16.1
R3 Turf - Front	Not Published	29X12.5-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	14.9-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	Not Published	13.6-24
R1 Agricultural - Front	Not Published	8.0-16
▶Fluid Capacity
Coolant Capacity	Not Published	2.03 gal
Crankcase Capacity	Not Published	1.95 gal
Fuel Tank Capacity	12.4 gal (Cab); 10.5 gal (Non-cab)	13.2 gal
Front Axle Fluid Capacity	Not Published	2.25 gal
Transmission / Hydraulic System Capacity	Not Published	11.36 gal
▶Loader & Attachments
Loader Lift Height	112 in	106.30 in
Loader Breakout Force	3,114 lb	3,896 lb
Quick Attach Loader System	L360A	Built-in parking stand; designed to be quickly and easily attached/detached
Loader Lift Capacity (Full Height)	1,830 lb	2,621 lb
▶Transmission & Drivetrain
Clutch	Dry clutch	Dry type single stage
No. of Speeds	16F/16R (mechanical shuttle); optional 3-range hydrostatic	F12 X R12
Transmission Type	16x16 mechanical shuttle with synchro shift (dry clutch) (standard); optional 3-range hydrostatic	Synchro shuttle
Max Travel Speed (Forward)	Not Published	16.7 mph
Max Travel Speed (Reverse)	Not Published	14.8 mph
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock: rear standard
▶Chassis, Steering & Controls
Brakes	Not Published	Wet disc type
Steering	Not Published	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	MFD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Deluxe suspension seat
▶Dimensions & Maneuverability
Wheelbase	73.2 in	75.5 in
Overall Width	Not Published	67.1 in
Ground Clearance	Not Published	13.4 in
Height to Top of ROPS	97.1 in	98.4 (2,499.4) w/o Beacon
Height to Top of Cab Model	93.3 in	Not Applicable
Height to Top of ROPS (folded)	78.6 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	128.1 in	136.4 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection

Case IH Farmall Compact 45C vs Kioti NS4710: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 45C or the Kioti NS4710?

They are effectively tied: both machines are rated at 45 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall Compact 45C or the Kioti NS4710?

The Case IH Farmall Compact 45C leads on pto hp at 38.2 hp hp, compared to 36.6 hp hp for the Kioti NS4710.

Which has more loader lift capacity, the Case IH Farmall Compact 45C or the Kioti NS4710?

The Kioti NS4710 leads on loader lift at 2,621 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 45C.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 45C or the Kioti NS4710?

The Case IH Farmall Compact 45C leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,493 lb lb for the Kioti NS4710.
